ParameterDatasheet

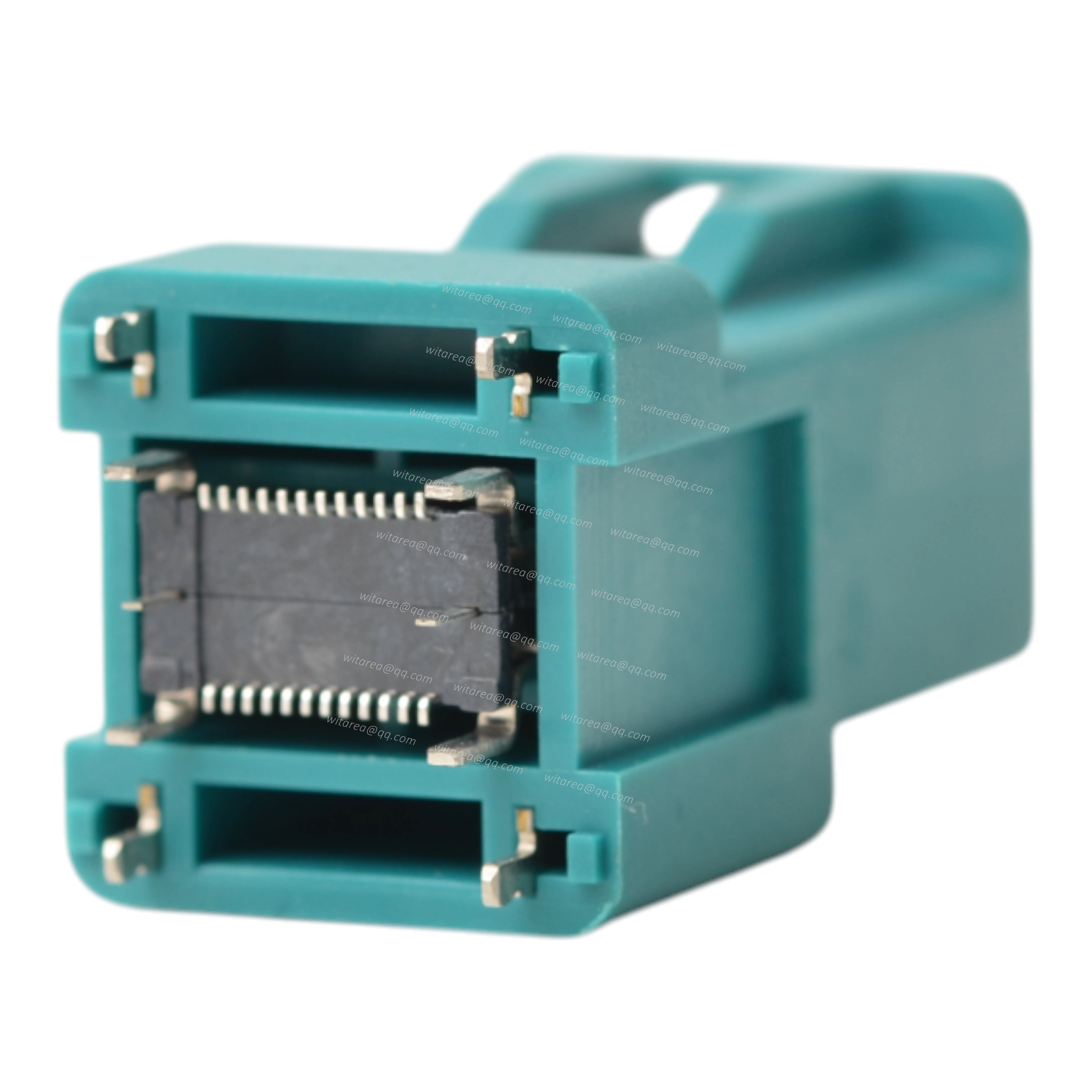

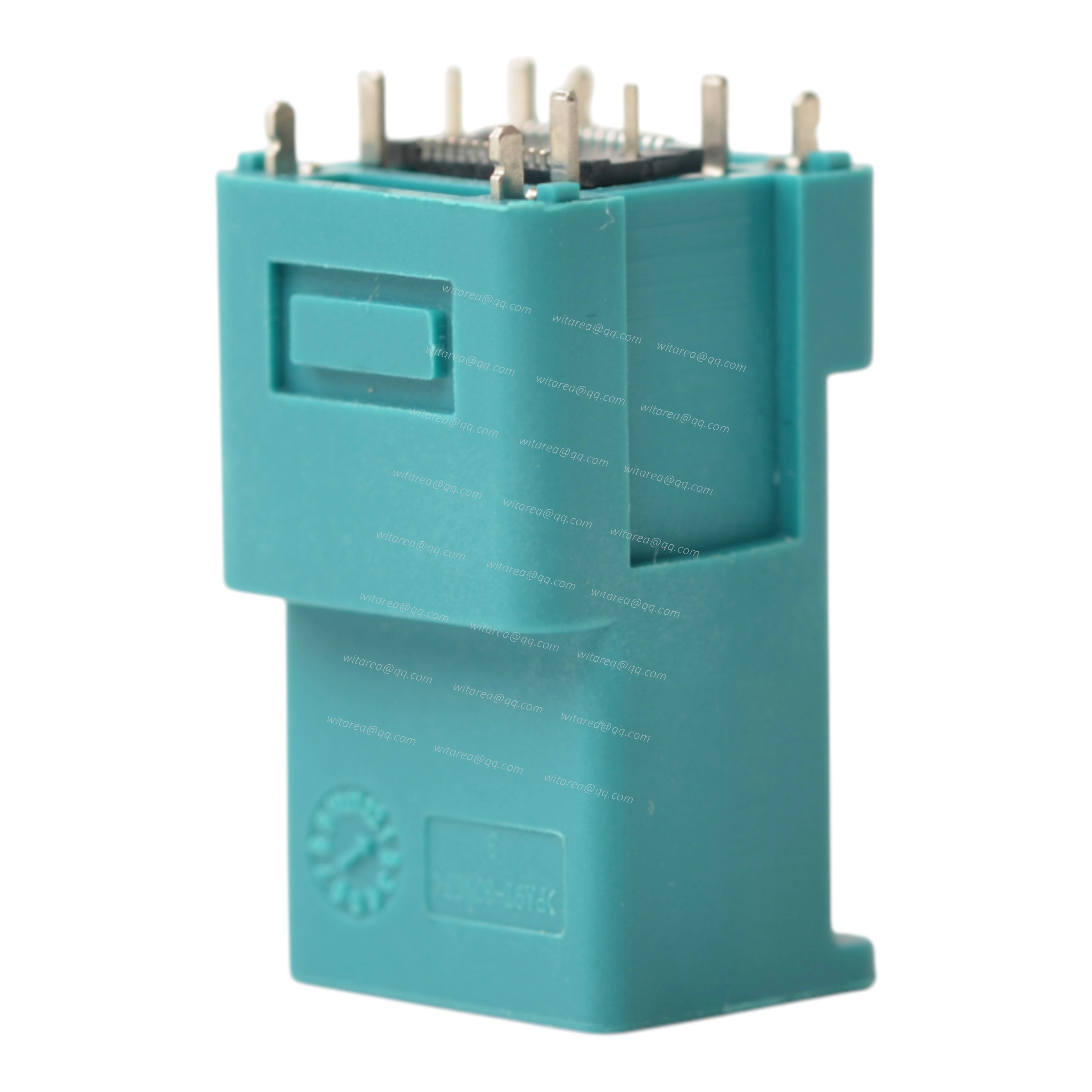

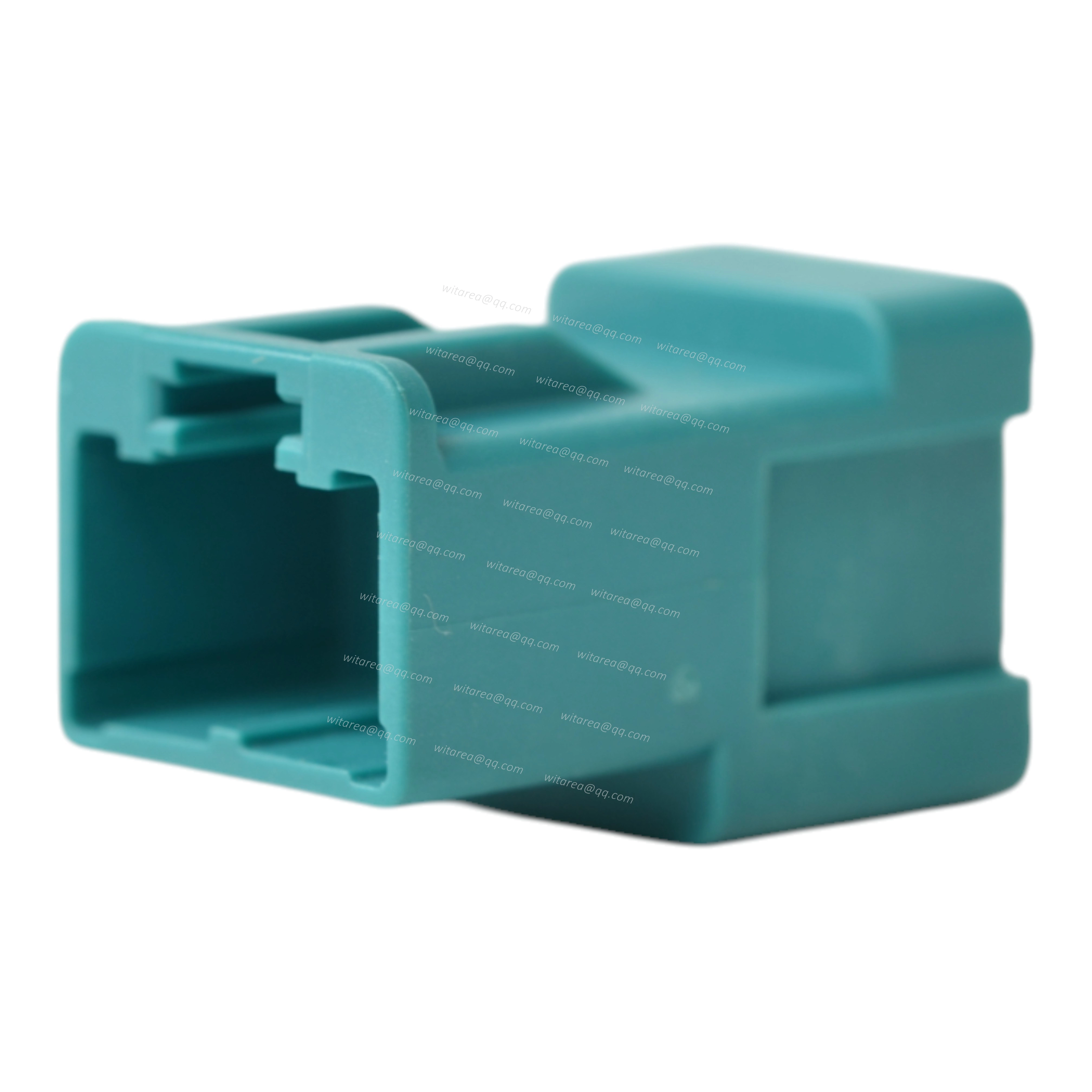

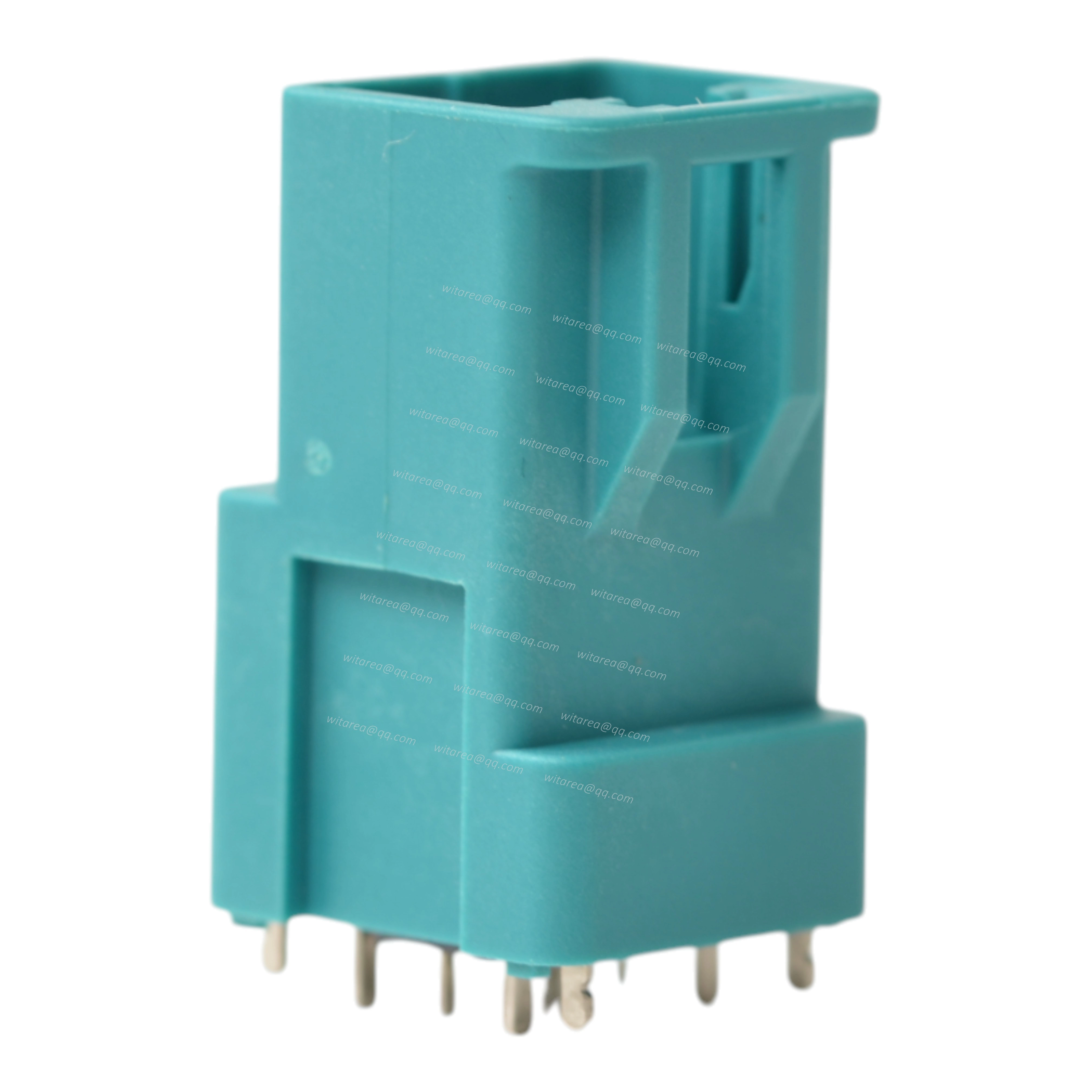

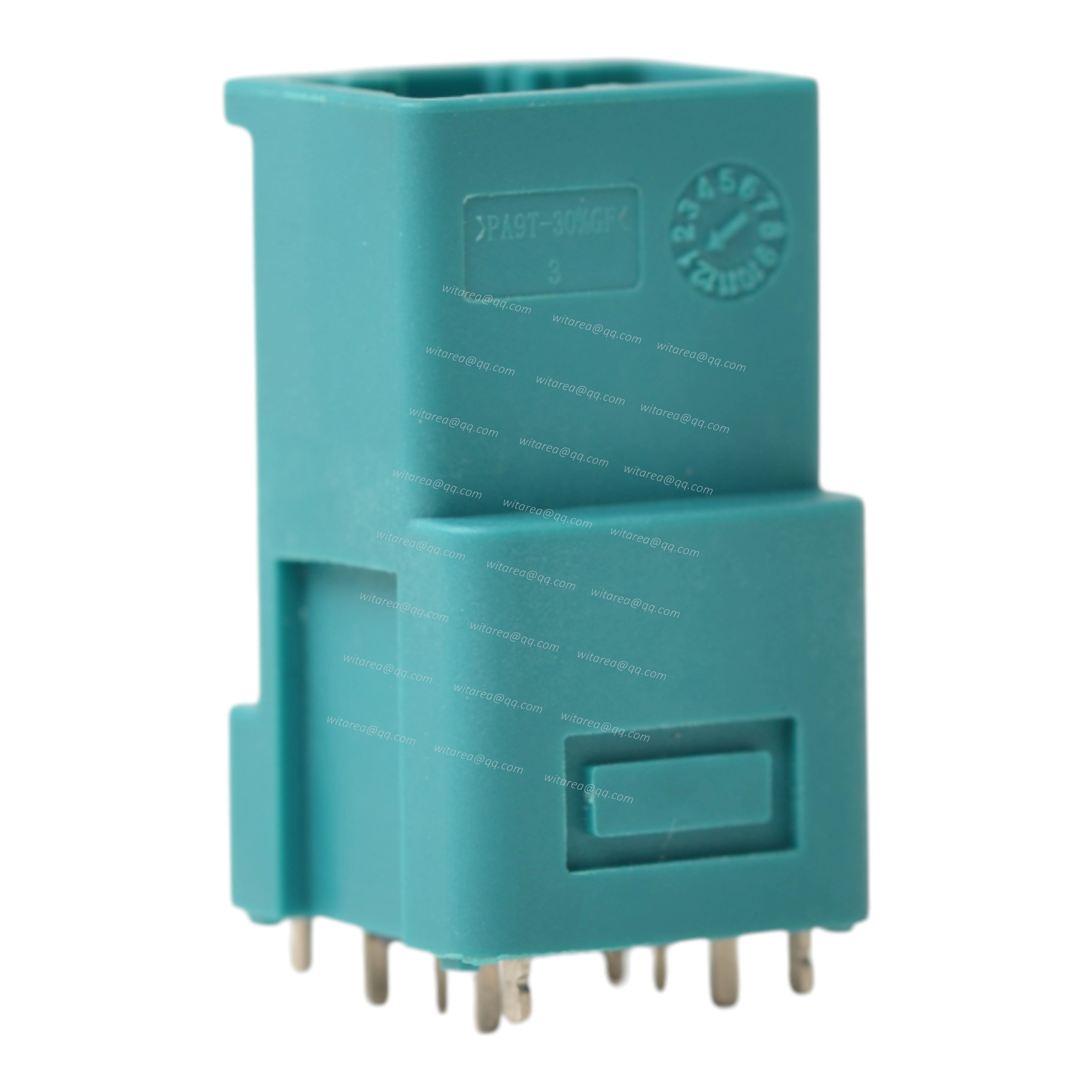

HSBridge USB3.1 TYPE C 24P VERTICAL MOUNT SMT RECEPTACLE ,H=25MM,L=26.8MM

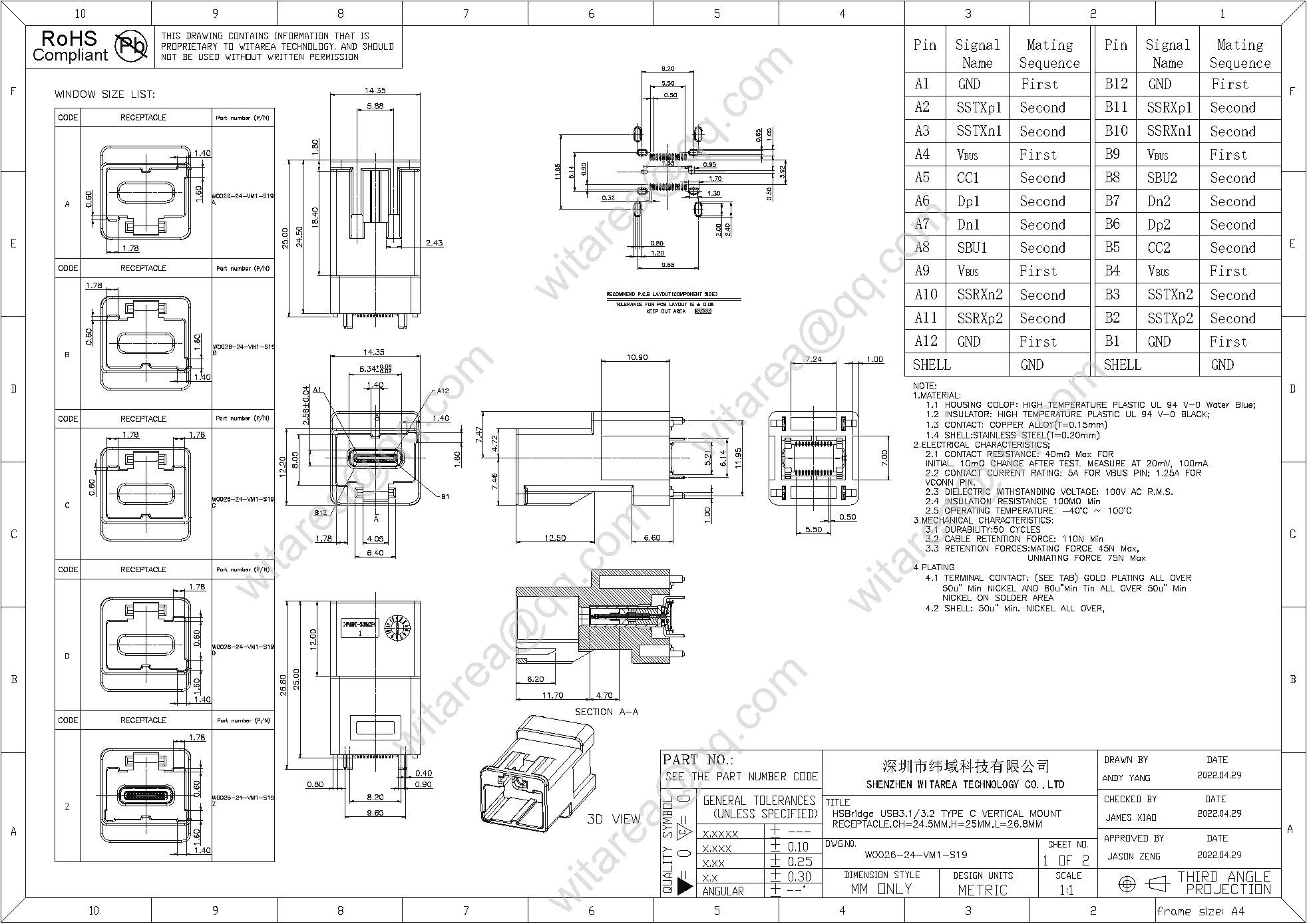

Drawing

USB TYPE C Connector Sample board

Parameter

Part No.:	155.W0026-24-VM1-S19
Equivalent
Products:	HSBridge USB3.1 TYPE C 24P VERTICAL MOUNT SMT RECEPTACLE ,H=25MM,L=26.8MM
Central-Height(1CH)	CH=24.5mm
Product Family:	USB TYPE C Connector
Connector style:	Type C
Number of contacts:	24
PCB mount type:	Vertical-mount
Orientation:	Horizontal
Mount position:	Mid-mount,DIP PEG
Current Rating:	5A
Shell stake:	Through hole
Shell stake lengths:	0.2mm
Locating Peg:	With locating peg
Application:	USB C device
Product Status:	Active
Certification:	Rohs(1EN50581),REACH
Mating Cycles:	10000
