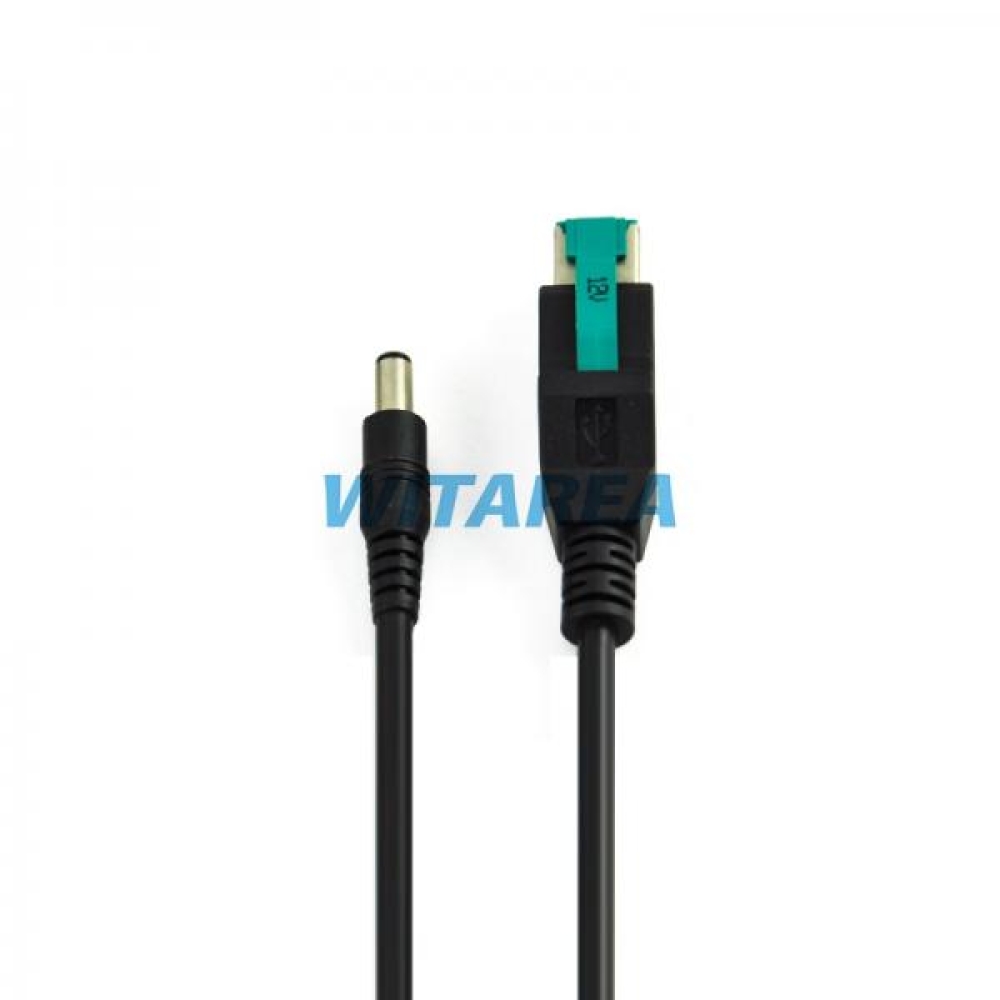

Custom 12v PoweredUSB To M Barrel DC connector cable

Injection molding enables us to mold your custom and standard USB series connectors,

We specialized USB series connector cable assembly with custom design,logos,chips,pin diagram

We are tooled for Connectors:

USB AM 2.0/3.0,USB AF 2.0/3.0 ,

USB BM 2.0/3.0,USB BF 2.0/3.0,

USB MINI B/M 2.0,USB MINI B/F 2.0

USB MICRO B/M 2.0/3.0,

USB MICRO B/F 2.0/3.0,

PoweredUSB

USB Type-C M/F 2.0,3.0,3.1 Connector,

We can custom-tool to your specs of USB2.0,USB 3.0,PoweredUSB,USB 3.1 and length of 1.5ft. 3ft,4ft,6ft,8ft,10ft,12ft,15ft or other length.

USB2.0 Raw cable construction,USB3.0 Raw cable construction,USB3.1 Raw cable construction,

Custom 12v PoweredUSB To M Barrel DC connector cable

USB 2.0 = 480 Mbps
USB 3.0 = 5 Gbps
USB 3.1 = 10 Gbps

USB 2.0: Rated voltage:5V, Rated Current:0.5 A
USB 3.0: Rated voltage:5V, Rated Current:1.0 A

PoweredUSB: Rated voltage:5V,12V,24V, Rated Current:6A

USB 3.1: Rated voltage:5V-20V , Rated Current:1A-3A

USB PD: Rated voltage:5V-20V , Rated Current:3A-5A

Connect between USB-C enabled devices (new Macbook, Chromebook Pixel)

Reversible connector
480M,5G,10Gbps data transfer rate
3A/5A charging output

3 Meter(9.84FT) USB-C Cable Data Sheet Drawing

USB-C Cable Raw Wire Construction

Durable PVC overmold with customer logo.

Electronic Marker Identification, authentication, and Power Delivery management circuit

Precision welded metal shield to protect PCB and E Marker

(also minimizes radiated emissions levels and provides additional mechanical strength)

‘Crimp’ locks metal shield shell in place for optimal mechanical structure and shielding

Micro Twinaxial superspeed conductors for 5G 10Gbps data transfer

3Amp and 5Amp power conductor

Power delivery communication channel

Data communication channel

85% Cable braid Shield

Flexible PVC /TPE cable jacket

Nominated Connector brands:

TYCO TE AMP Molex Amphenol
LEMO Binder Foxconn Foxlink YAZAKI
HRS Hirose DELPHI SUMITOMO KET
HULANE JST JAE FCI luxshare
LOTES NAIS jonhon YEONHO ACES
ACON P-two suyin Souriau ODU
ERNI HY ITT Stäubli fulfills connection Bulgin FISCHER

Custom 12v PoweredUSB To M Barrel DC connector cable

Compatibility

POS applications

Epson & IBM printers

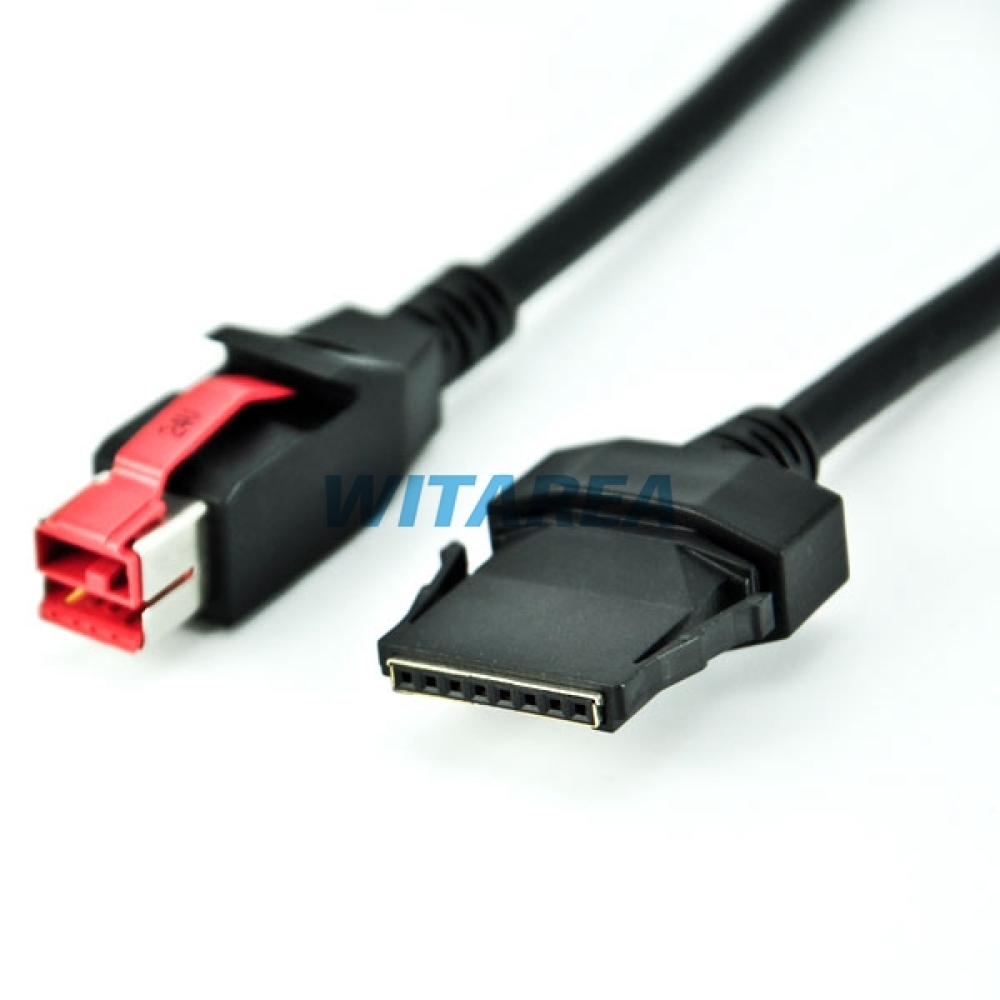

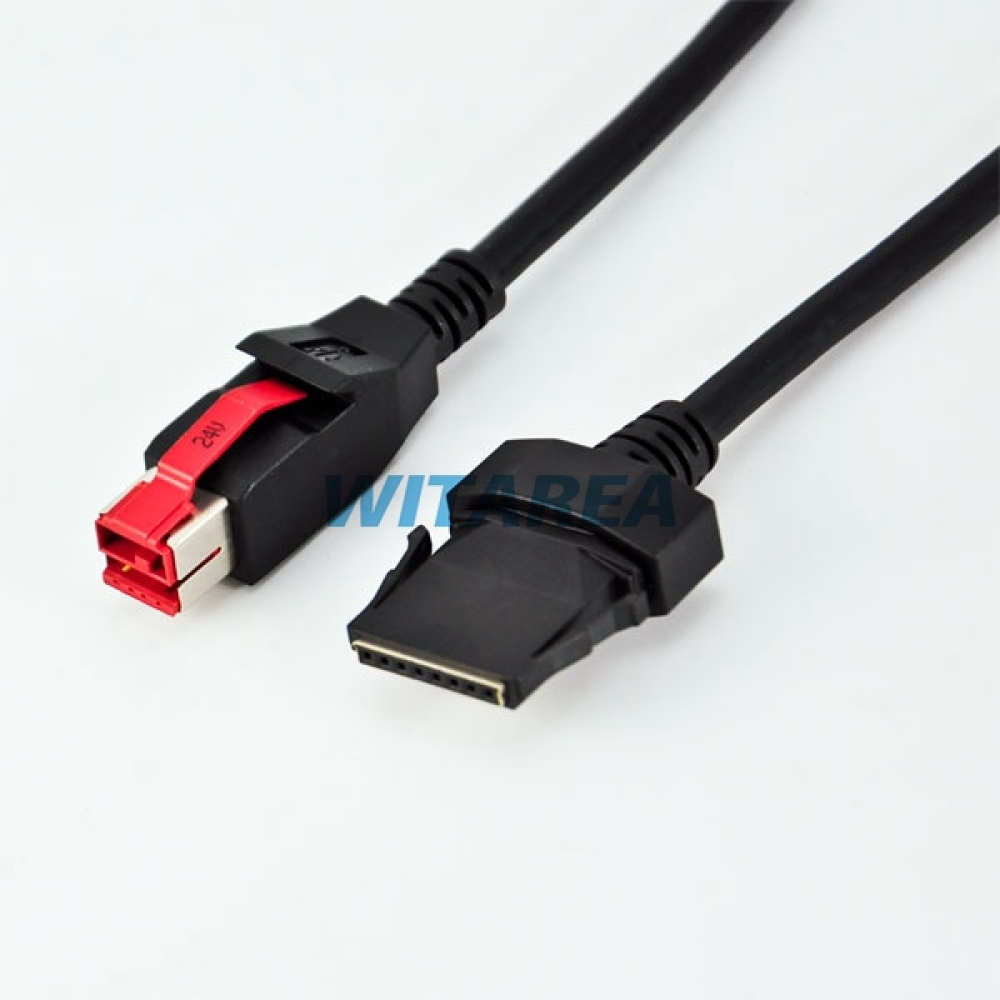

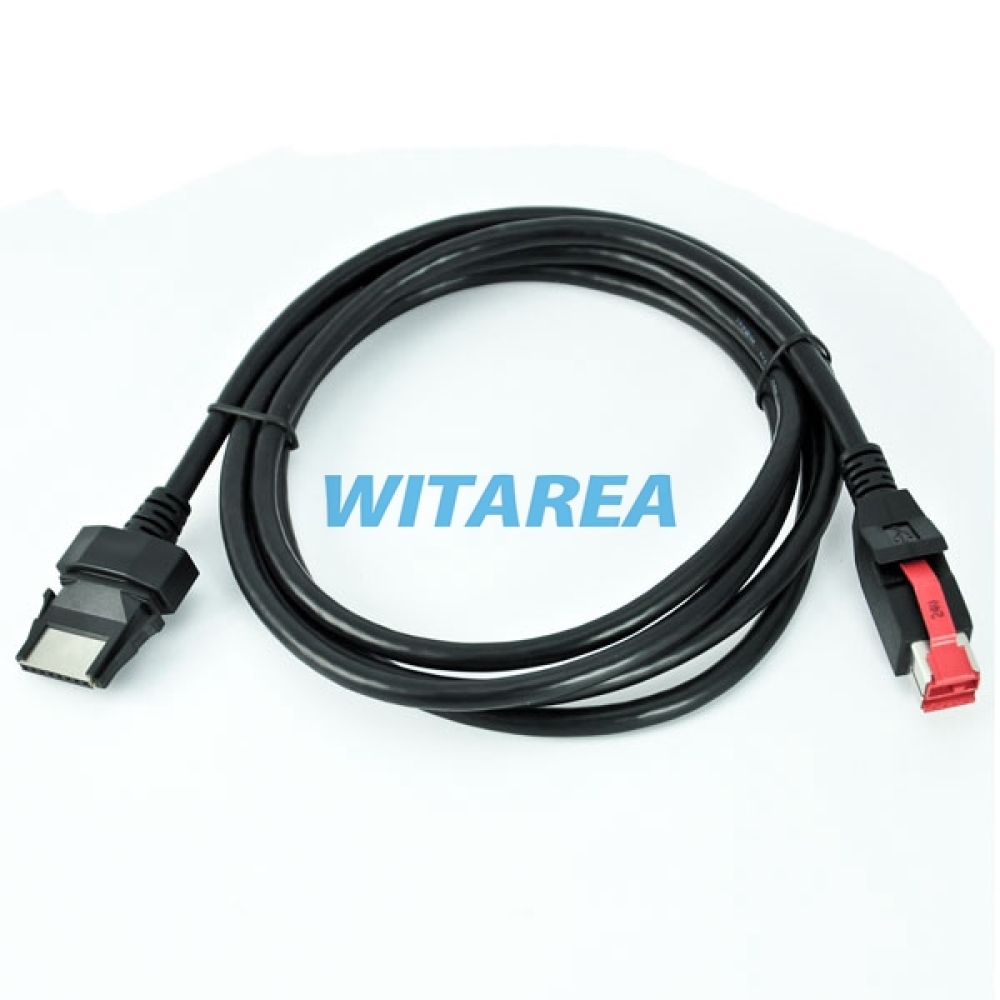

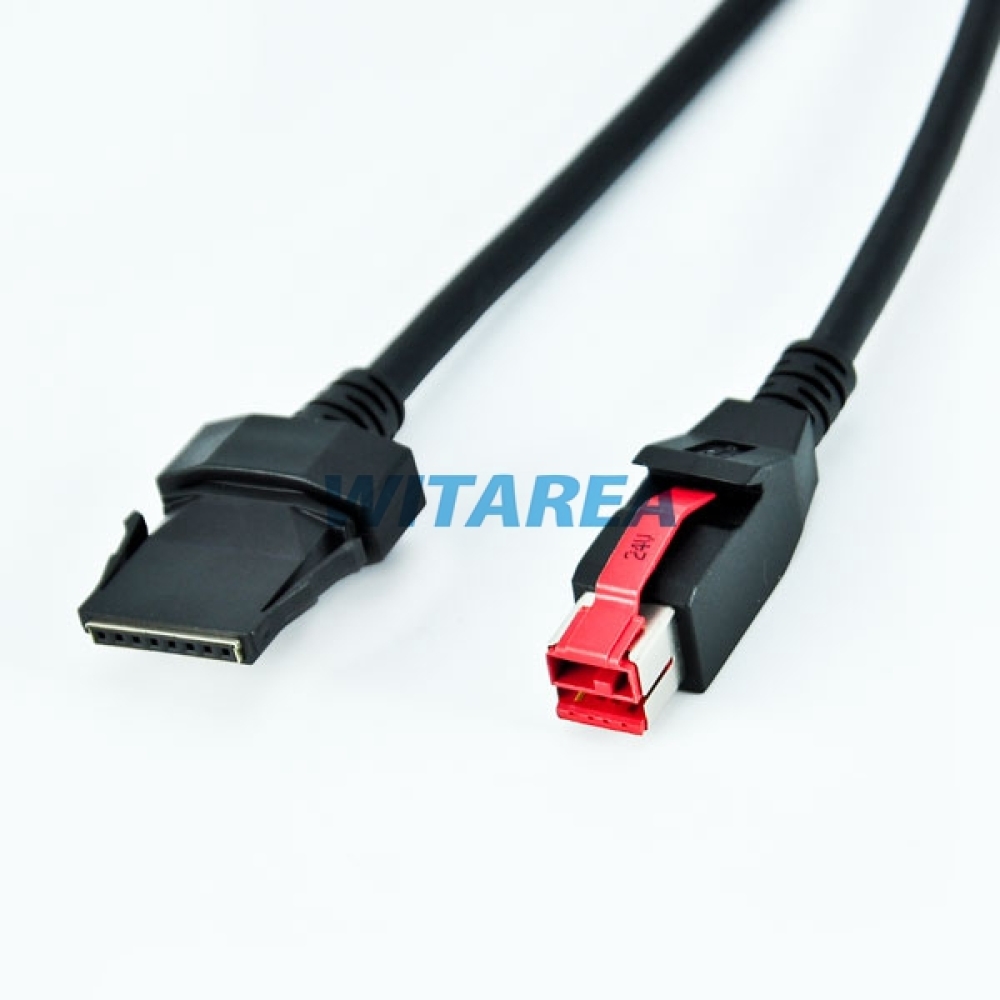

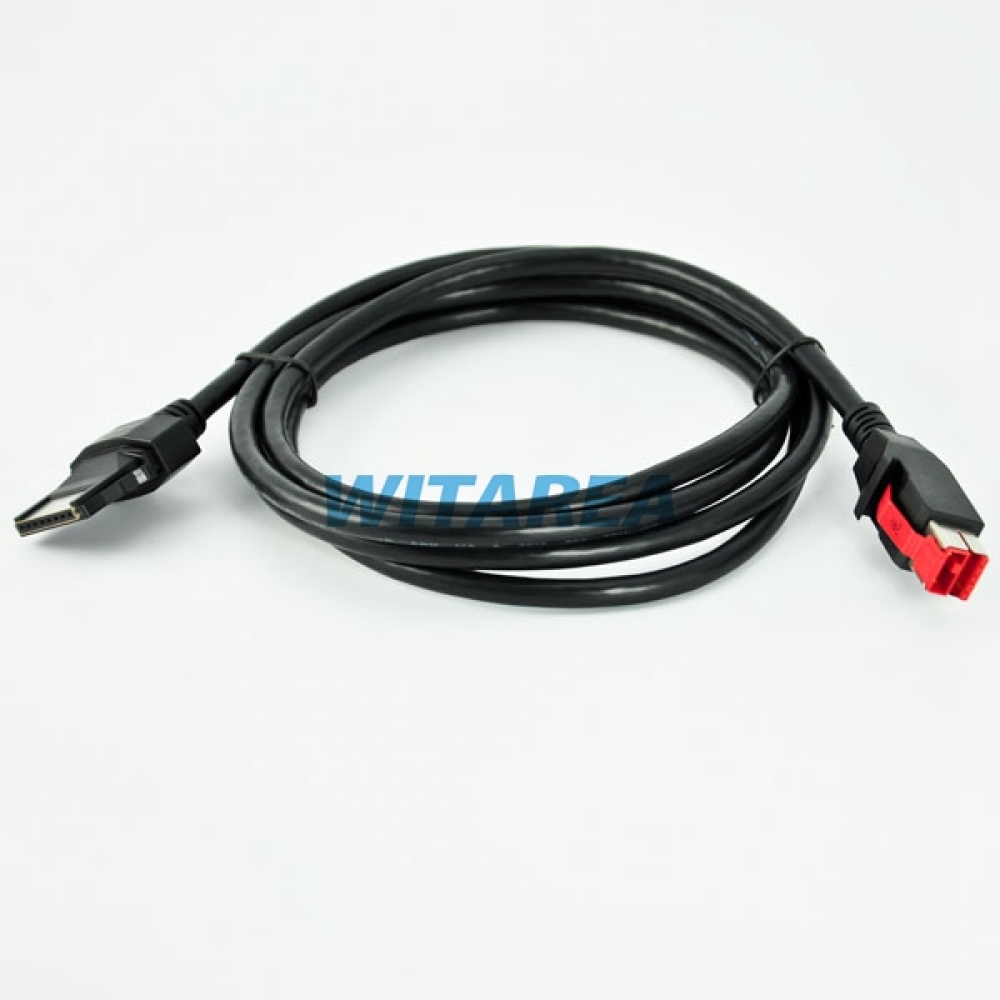

Custom 24v PoweredUSB connector cable

1.OEM,ODM service
2.Custom design,mold design,diagram design,packing design,instruction book design
3.Low cost shipping service,Express,air transportation,sea transportation.
4.1 Year's Limited warranty.
5.Accept small order.
6.Standard products deliver in 7 days.
7.Easy contact us,by mail or whatsapp,skype,reply within 24 hours.
