USB2.0 TYPE C 16PIN MALE PLUG, VERTICAL-MOUNT, DUAL ROW SMT,H=7.2MM, L=7.2MM, SHORT SOLDER STAKES
USB2.0 TYPE C 16PIN MALE PLUG, VERTICAL-MOUNT, DUAL ROW SMT,H=7.2MM, L=7.2MM, SHORT SOLDER STAKES
Home Products Connectors USB Connector USB C Connector

USB2.0 TYPE C 16PIN MALE PLUG, VERTICAL-MOUNT, DUAL ROW SMT,H=7.2MM, L=7.2MM, SHORT SOLDER STAKES

Item.: 124.W0025-16-VM1-S3
Connector style: Type C
USB version: USB2.0
Gender: Plug
PCB mount type: Vertical-mount
Mount position: Vertical-mount,DIP PEG
Shell stake: Through hole
Body Length :7.2mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type c 16pin male plug, vertical mount dual-row SMT, H=7.2mm, L=7.2mm, with short solder stakes

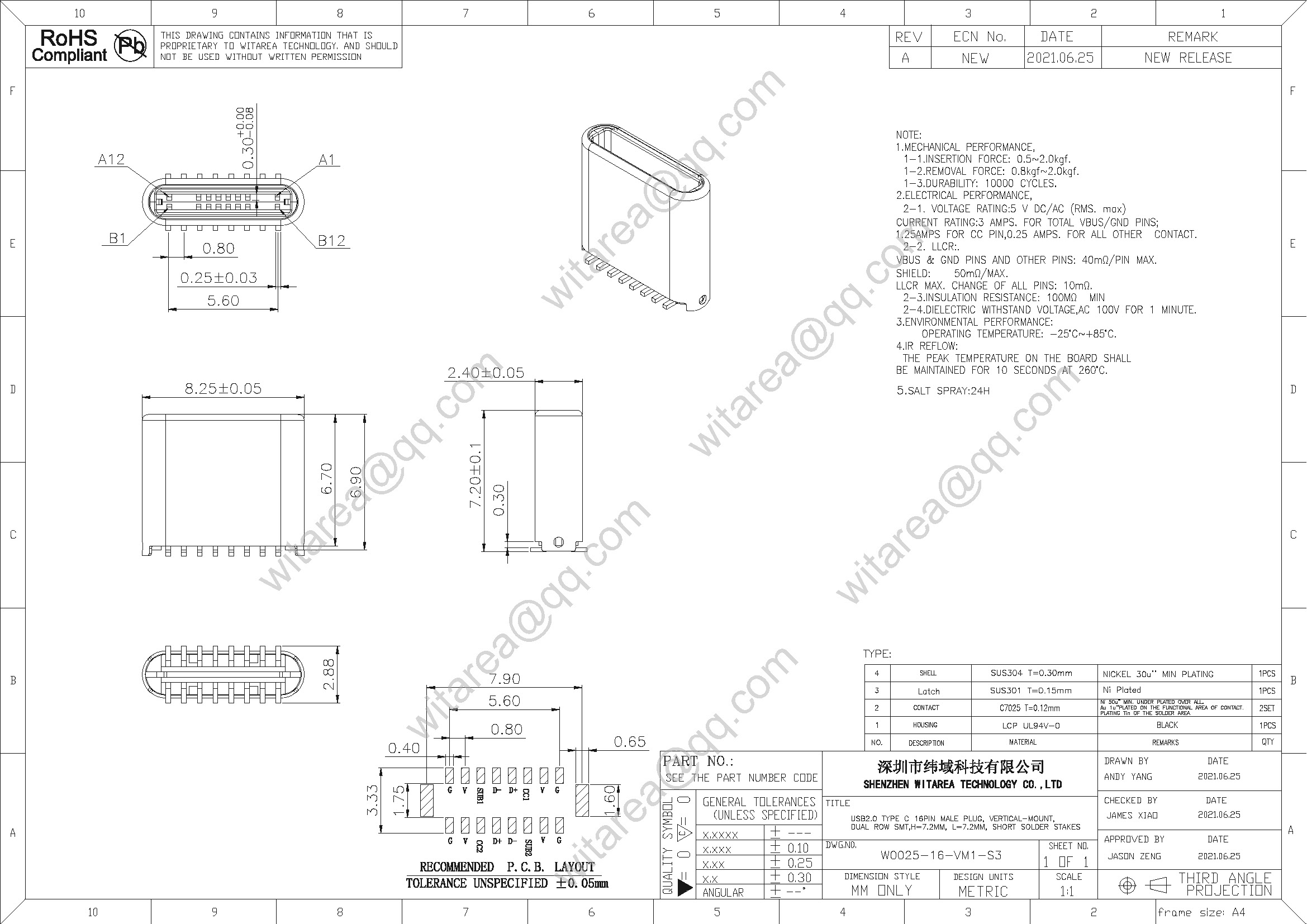

DRAWING


USB TYPE C Connector Sample board

Parameter

Part No.: 124.W0025-16-VM1-S3
Products: Usb2.0 type c 16pin male plug, vertical mount dual-row SMT, H=7.2mm, L=7.2mm, with short solder stakes
Central-Height(CH) H=7.2mm
Product Family:  TYPE C USB2.0 Connector
Connector style:  Type C
Number of contacts:  16
PCB mount type: Vertical-mount
Orientation: Vertical
Mount position: Vertical-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  0.3mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0025-16-VM1-S3-USB2_0-TYPE-C-16PIN-MALE-PLUG-VERTICAL-MOUNT--DUAL-ROW-SMTH7_2MM-L7_2MM-SHORT-SOLDER-STAKES_1.pdf

Male PlugSmt Type C Male Plug
