| Part No.: |
W0025-24-EM4-C45 |
|
Equivalent |
|

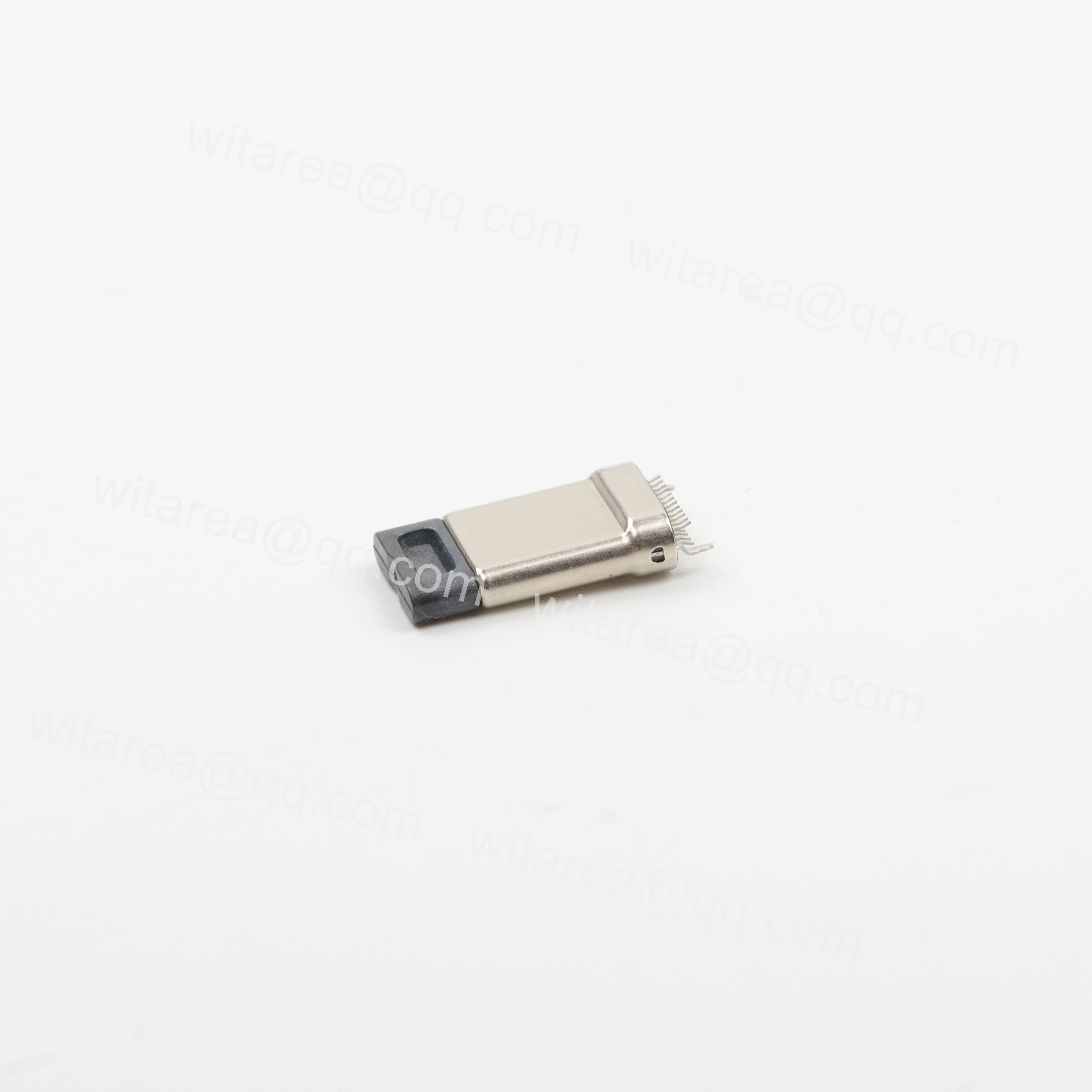

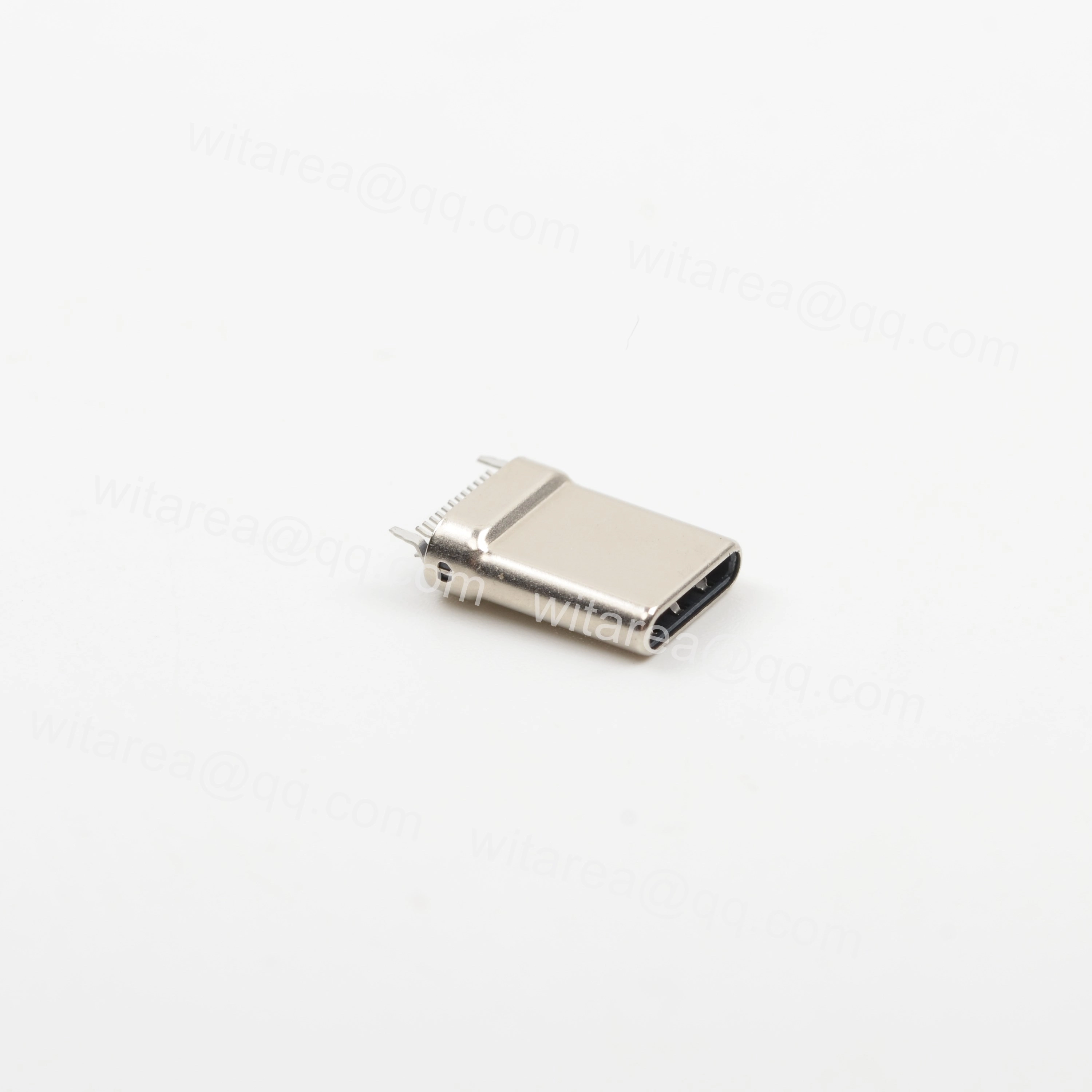

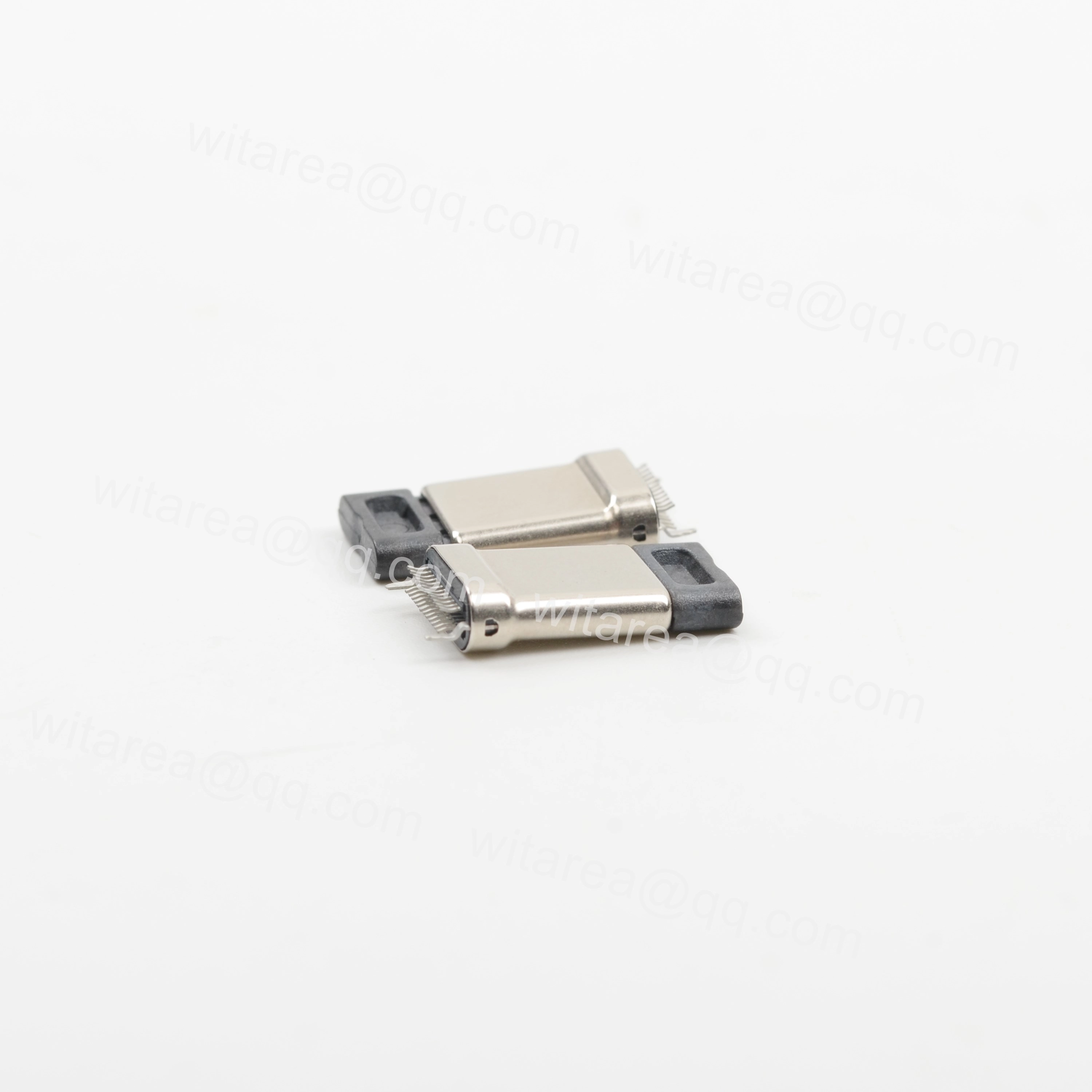

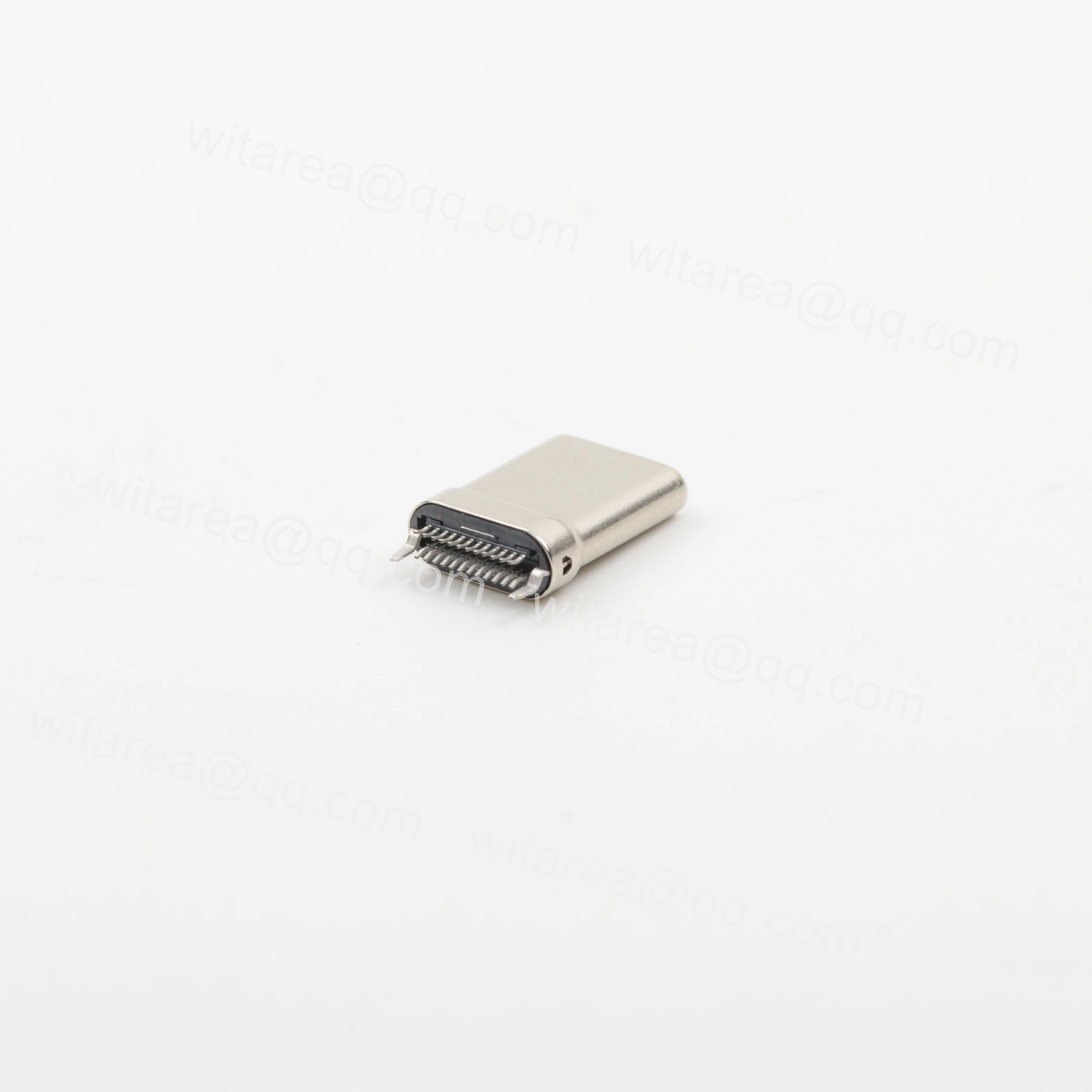

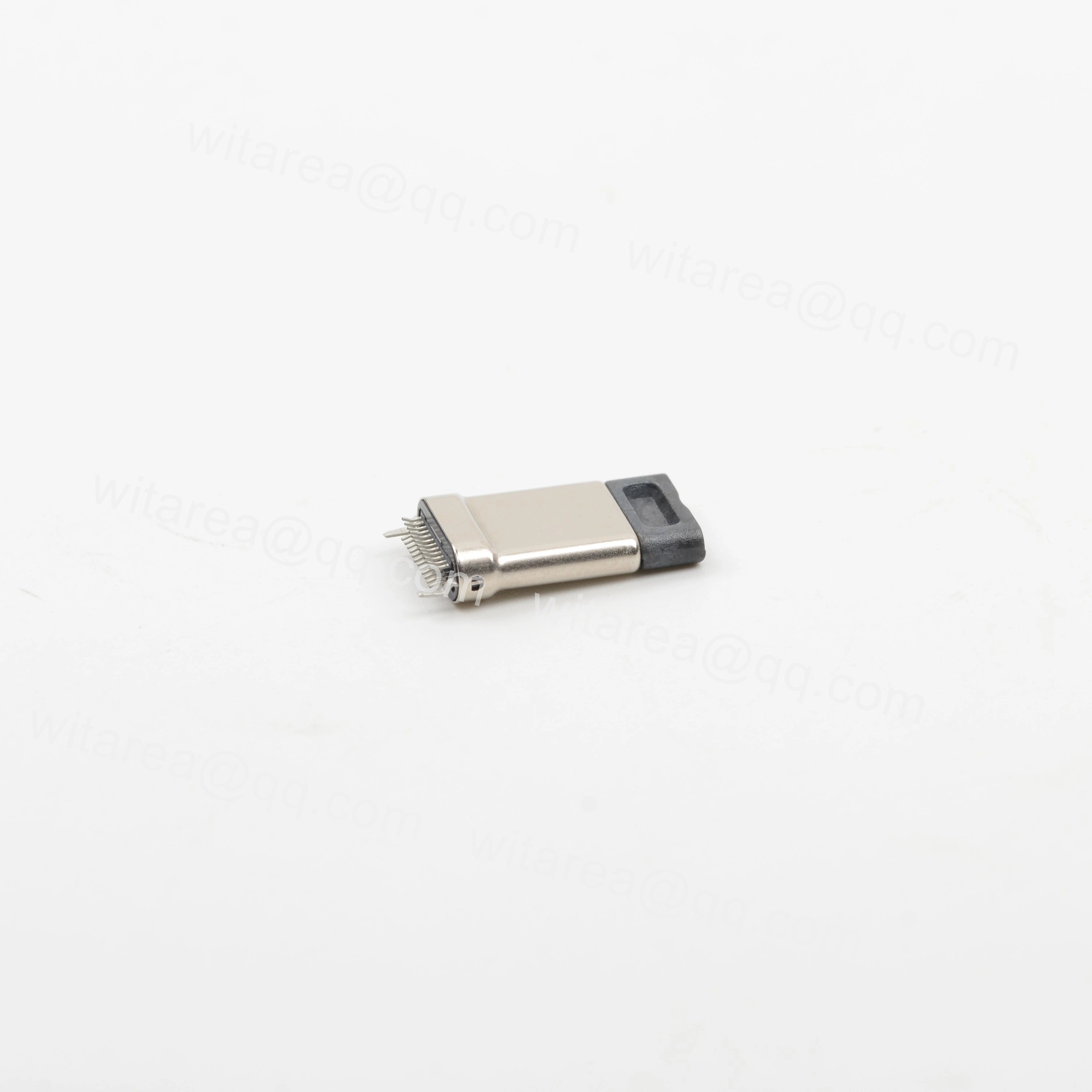

| Products: | TYPE C 24PIN femal plug straddle mount,H=8.8mm, L=10.45MM |
|
Body length |
10.45mm/10.95mm/11.65mm/12.15mm |
| PCB thickness |
0.8mm/1.0mm,1.2mm |
| Central-Height(1CH) | CH=9.3 MM |
| Product Family: | TYPE C USB 3.1/USB4 Connector |
| Connector style: | Type C |
| Number of contacts: | 24 |
| PCB mount type: | Straddle mount |
| Orientation: | Horizontal |
| Mount position: | Straddle mount,DIP PEG |
| Current Rating: | 5A |
| Shell stake: | Through hole |
| Shell stake lengths: | 1.65mm |
| Locating Peg: | With locating peg |
| Application: | USB C device |
| Product Status: | Active |
| Certification: | Rohs(1EN50581),REACH |
| Mating Cycles: | 10000 |
Part No. Chart
| Part No. | DIM A(1Vertical height) | DIM B (1Contact Space) | DIM C (1Shell space/pcb thickness) | DIM D (1Body lenth) | DIM E (1Inner height) |
| x | x | 0.8 | 0.8 | 10.45 | 4.5 |
| x | x | 1.2 | 1.2 | 10.45 |
4.5 |
| x | x | 0.8 | 0.8 | 10.95 | 5.0 |
| x | x | 0.8 | 1.0 | 10.95 | 5.0 |
Application
Mobile devices:smartphones, tablets and ect.
Smart devices:Remote Monitoring,and ect.
Gaming consoles and ect.
Computers:,laptops and desktop computers and ect.
Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.
Audio equipment: headphones, speakers, and other audio equipment and ect.
Video equipment and ect. Automotive industry and ect.
Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.
