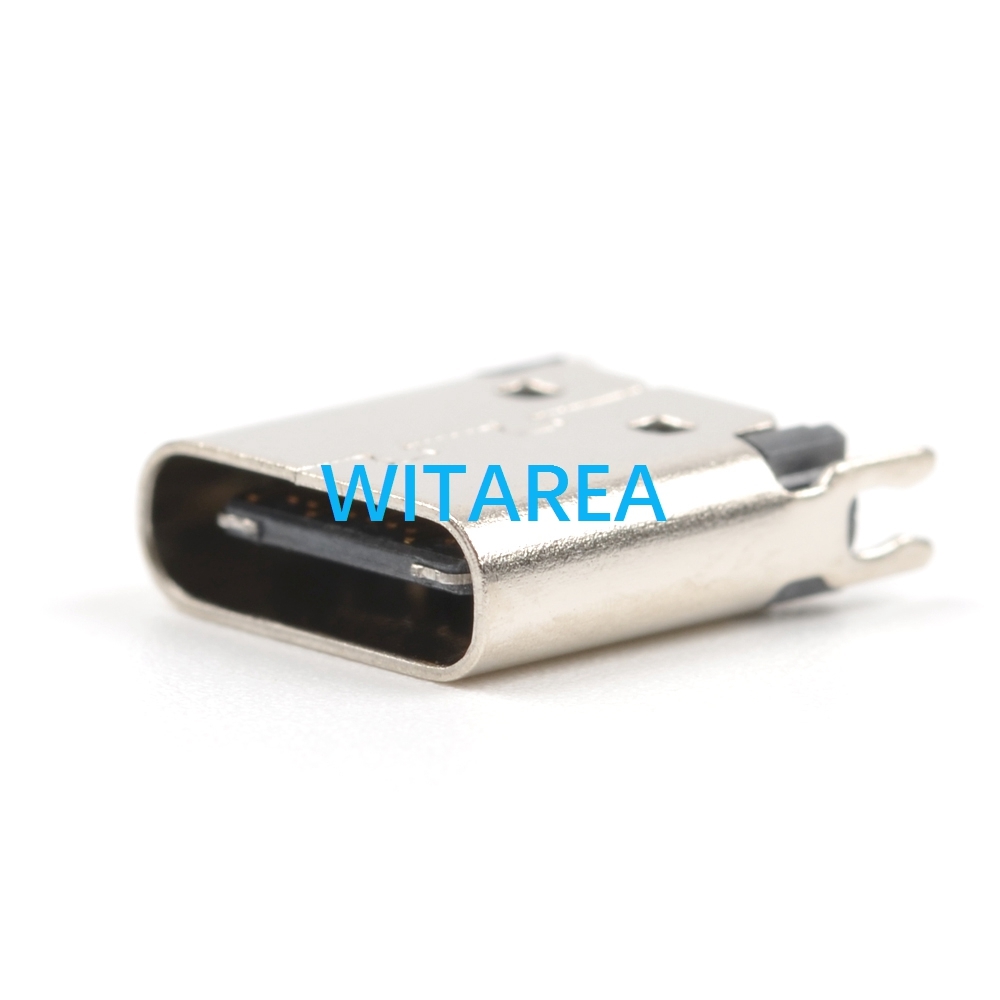

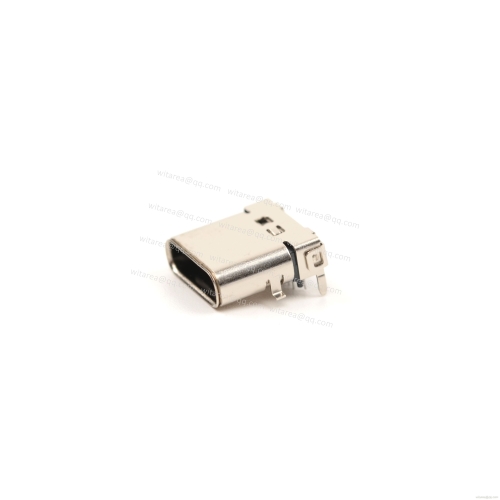

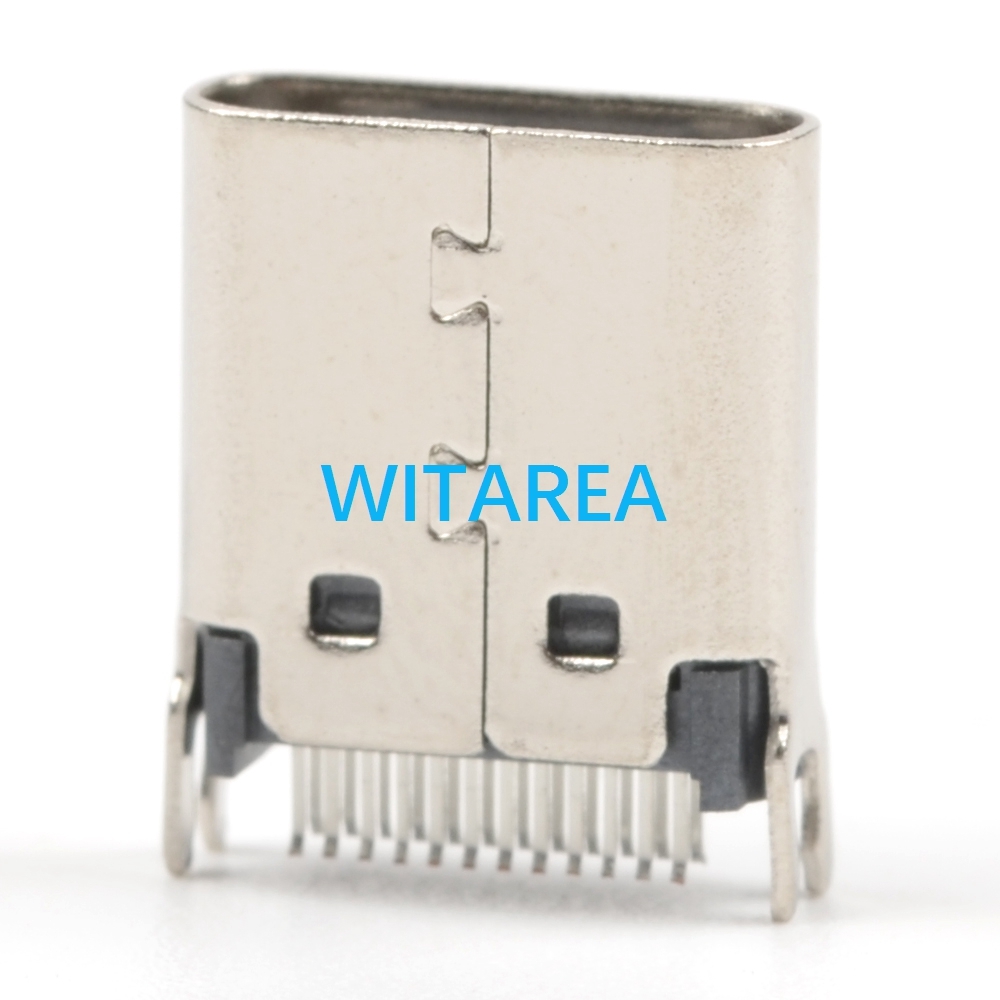

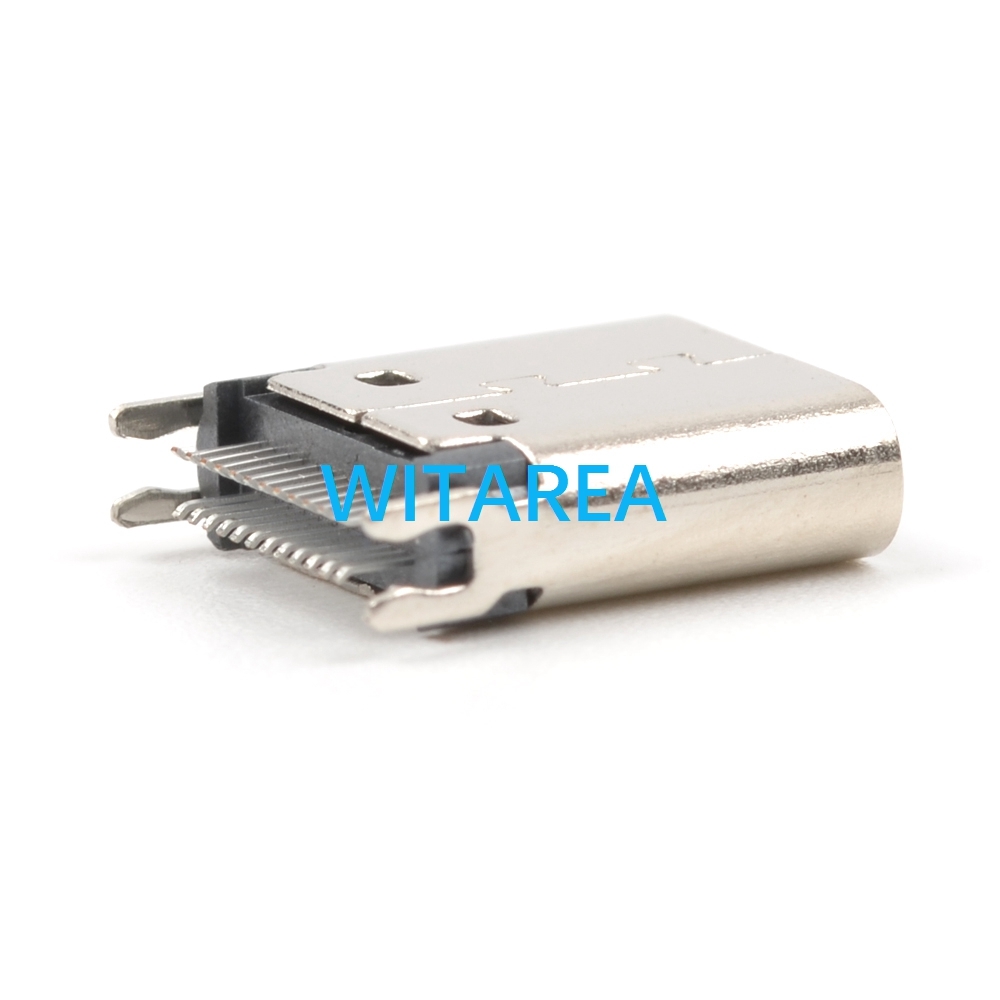

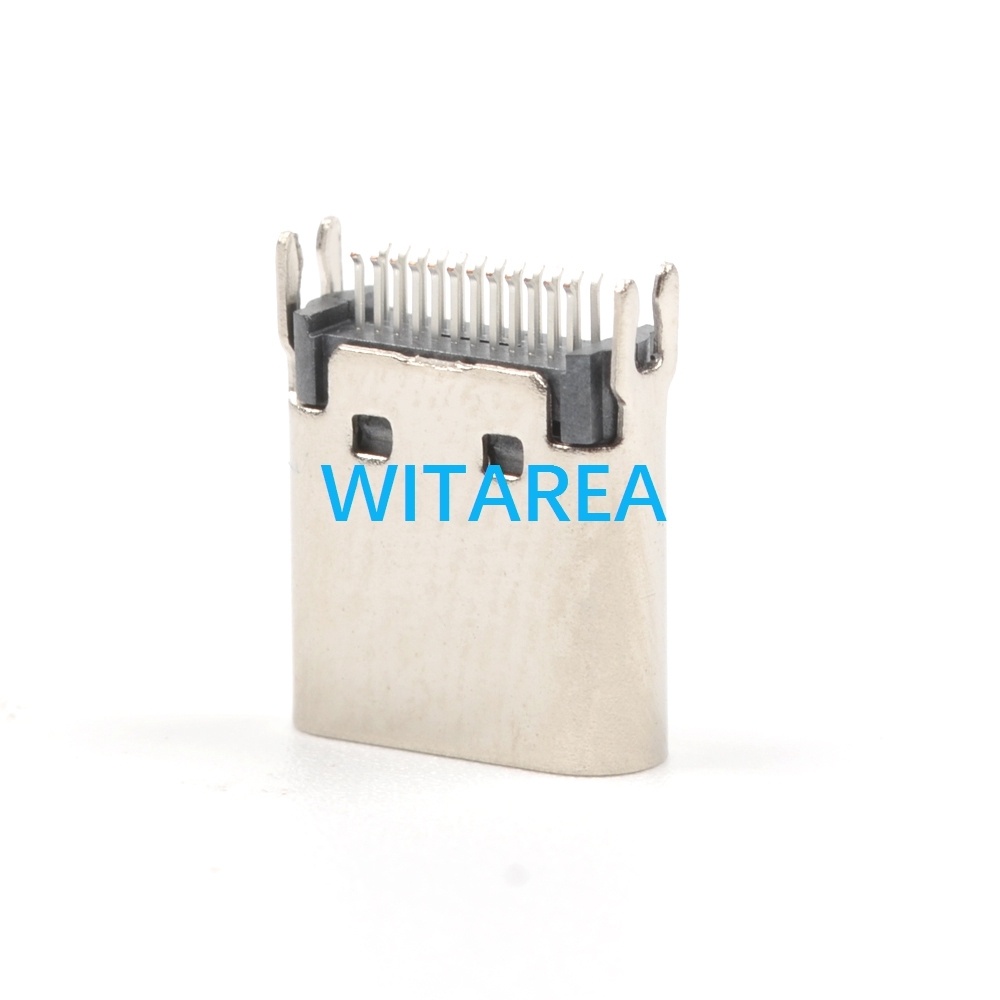

TYPE C 24PIN femal plug straddle mount,H=9.3mm, L=10.95MM

Item.: W0026-24-EM1-S7D
Connector style: Type C
USB version: USB3.1/USB4
Gender: receptacle/female plug
PCB mount type: straddle mount edge mount
Mount position: horizontal,DIP PEG
Shell stake: Through hole
Body Length :10.45mm/10.95mm/11.65mm/12.15mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

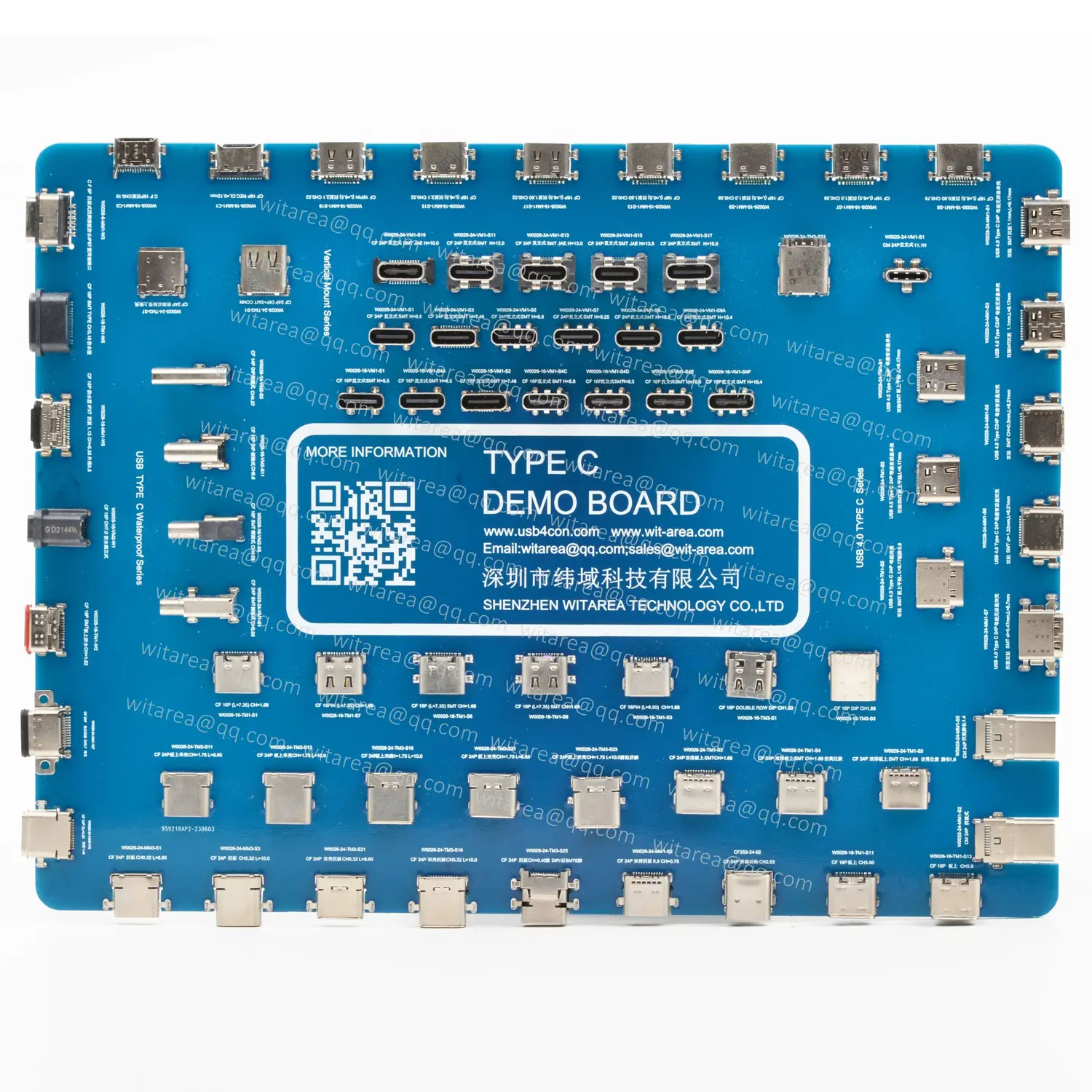

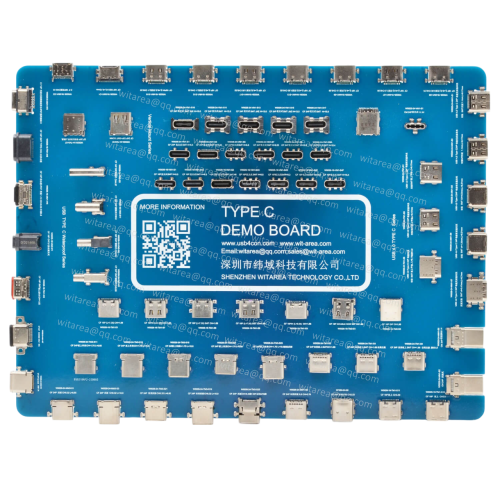

USB TYPE C Connector Sample board



Parameter

Part No.: W0026-24-EM1-S7D
Equivalent
Products: TYPE C 24PIN femal plug straddle mount,H=8.8mm, L=10.45MM
Body length
 10.45mm/10.95mm/11.65mm/12.15mm
PCB thickness 0.8mm/1.0mm,1.2mm
Central-Height(1CH)  CH=9.3 MM
Product Family:  TYPE C USB 3.1/USB4  Connector
Connector style:  Type C
Number of contacts:  24
PCB mount type:  Straddle mount
Orientation:  Horizontal
Mount position: Straddle mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  1.65mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000




Part No. Chart

No.: Part No. DIM A(1Vertical height) DIM B  (1Contact Space) DIM C (1Shell space/pcb thickness) DIM D (1Body lenth) DIM E (1Inner height)
1 S7A  8.8 0.8 0.8 10.45 4.5
2
 S7B
 8.8 0.8 1.0 10.45 4.5
3 S7C 8.8 1.2 1.2 10.45 4.5
4 S7D
 9.3 0.8 0.8 10.95 5.0
5 S7E
 9.3 0.8 1.0 10.95 5.0
6 S7F 9.3 1.2 1.2 10.95 5.0
7 S7G 10.0 0.8 0.8 11.65 5.7
8 S7H  10.0 0.8 1.0 11.65 5.7
9 S7I 10.0 1.2 1.2 11.65 5.7
10 S7J 10.5 0.8 0.8 12.15 6.2
11 S7K 10.5 0.8 1.0 12.15 6.2
12 S7L 10.5 1.2 1.2 12.15 6.2






Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

W0026-24-EM1-S7X---USB-TYPE-C-F-.pdf

Type C Female PlugUsb C Female PlugStraddle Type C Plug
