USB3.1 TYPE C 24P MID-MOUNT DIP+SMT RECEPTACLE WITH 6 STAKES=0.9MM ,CH=0.4MM,L=10.3MM
USB3.1 TYPE C 24P MID-MOUNT DIP+SMT RECEPTACLE WITH 6 STAKES=0.9MM ,CH=0.4MM,L=10.3MM
Home Products USB Connector USB C Connector

USB3.1 TYPE C 24P MID-MOUNT DIP+SMT RECEPTACLE WITH 6 STAKES=0.9MM ,CH=0.4MM,L=10.3MM

Item.: 63.W0026-24-MM3-S6
Connector style: Type C
USB version: USB3.0/3.1
Gender: Receptacle
PCB mount type: Mid-mount
Mount position: Mid-mount,DIP PEG
Shell stake: Through hole
Body Length: 10.3mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb 3.0/3.1 type C 24pin mid-mount offset 1.98mm DIP+SMT receptacle, CH=0.4mm,L=10.3mm, with 6 stakes=0.9mm,48V 5A 240W

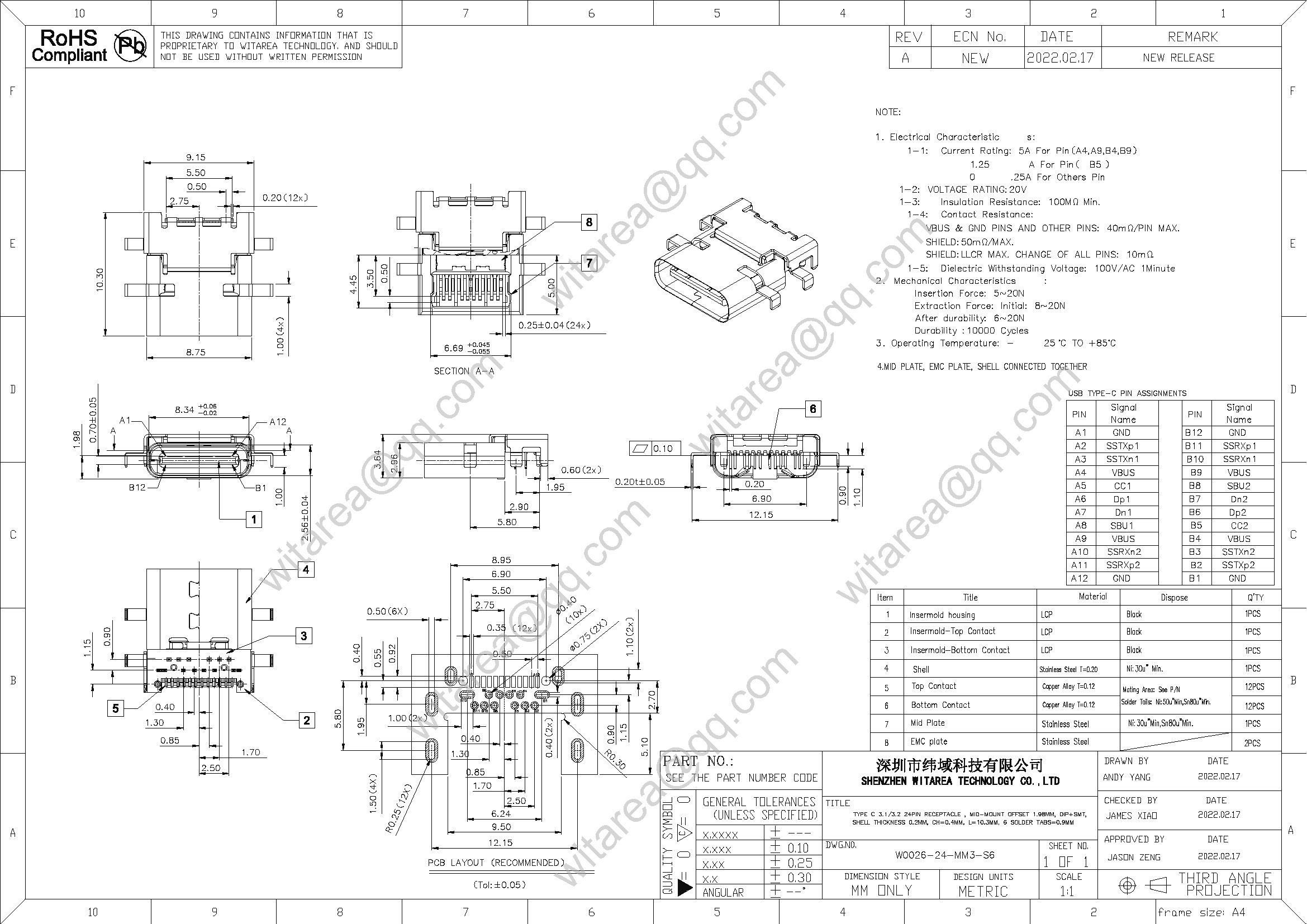

Drawing





USB TYPE C Connector Sample board


Parameter

Part No.: 63.W0026-24-MM3-S6
Equivalent
Products: Usb 3.0/3.1 type C 24pin mid-mount offset 1.98mm DIP+SMT receptacle, CH=0.4mm,L=10.3mm, with 6 stakes=0.9mm,48V 5A 240W
Central-Height(1CH) CH=0.4mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 24
PCB mount type: Mid-mount
Orientation: Horizontal
Mount position: Mid-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 0.9mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.
