USB3.1 TYPE C 24P VERTICAL-MOUNT DUAL-ROW SMT RECEPTACLE ,H=6.45MM,L=6.45MM
USB3.1 TYPE C 24P VERTICAL-MOUNT DUAL-ROW SMT RECEPTACLE ,H=6.45MM,L=6.45MM
Home Products USB Connector USB C Connector

USB3.1 TYPE C 24P VERTICAL-MOUNT DUAL-ROW SMT RECEPTACLE ,H=6.45MM,L=6.45MM

Item.: 67.W0026-24-VM1-S6
Connector style: Type C
USB version: USB3.0/3.1
Gender: Receptacle
PCB mount type: Vertical-mount
Mount position: Vertical-mount,DIP PEG
Shell stake: Through hole
Body Length: 6.45mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb 3.0/3.1 type C 24pin vertical-mount dual-row SMT receptacle, H=6.45mm,L=6.45mm, 48V 5A 240W

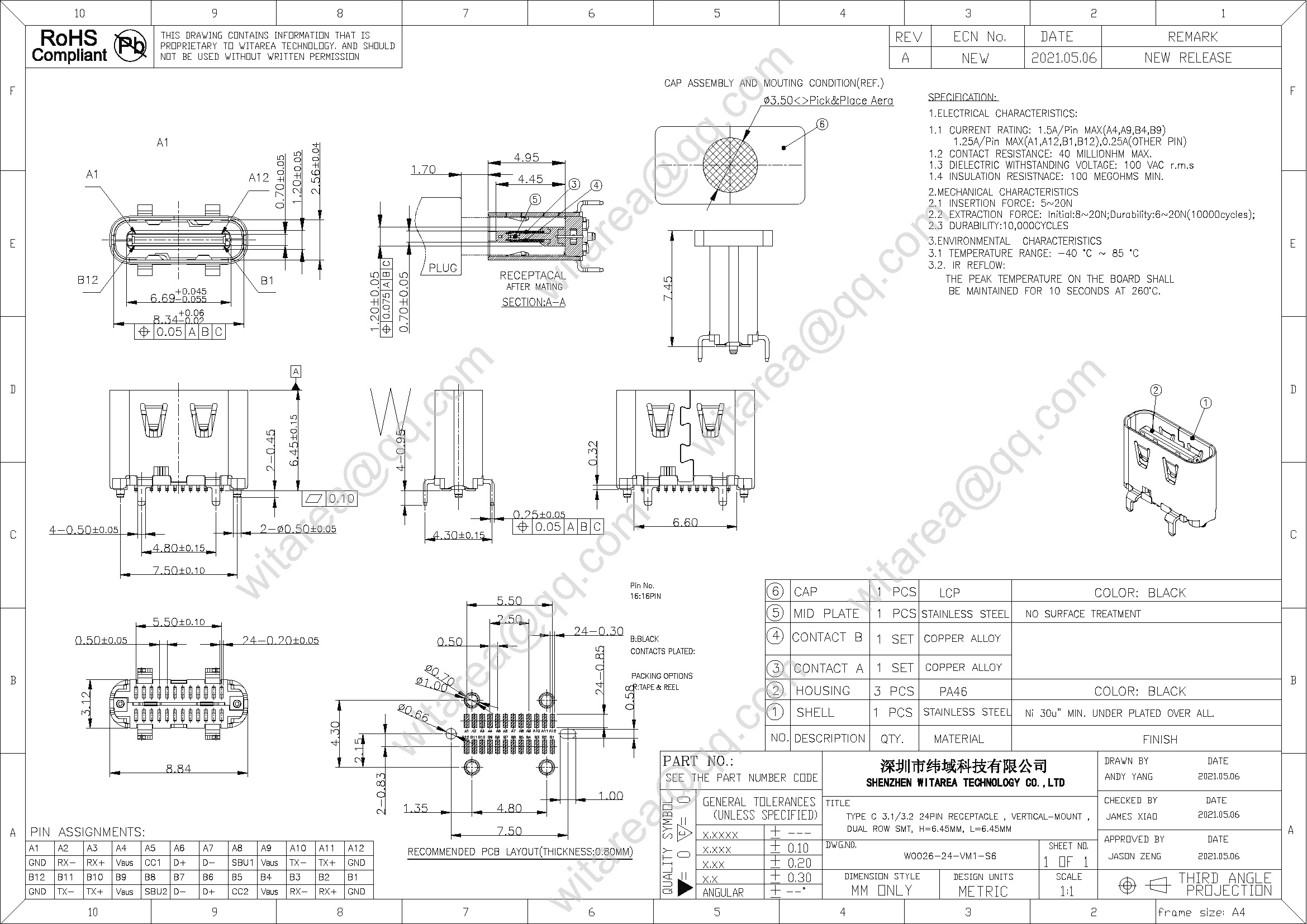

Drawing

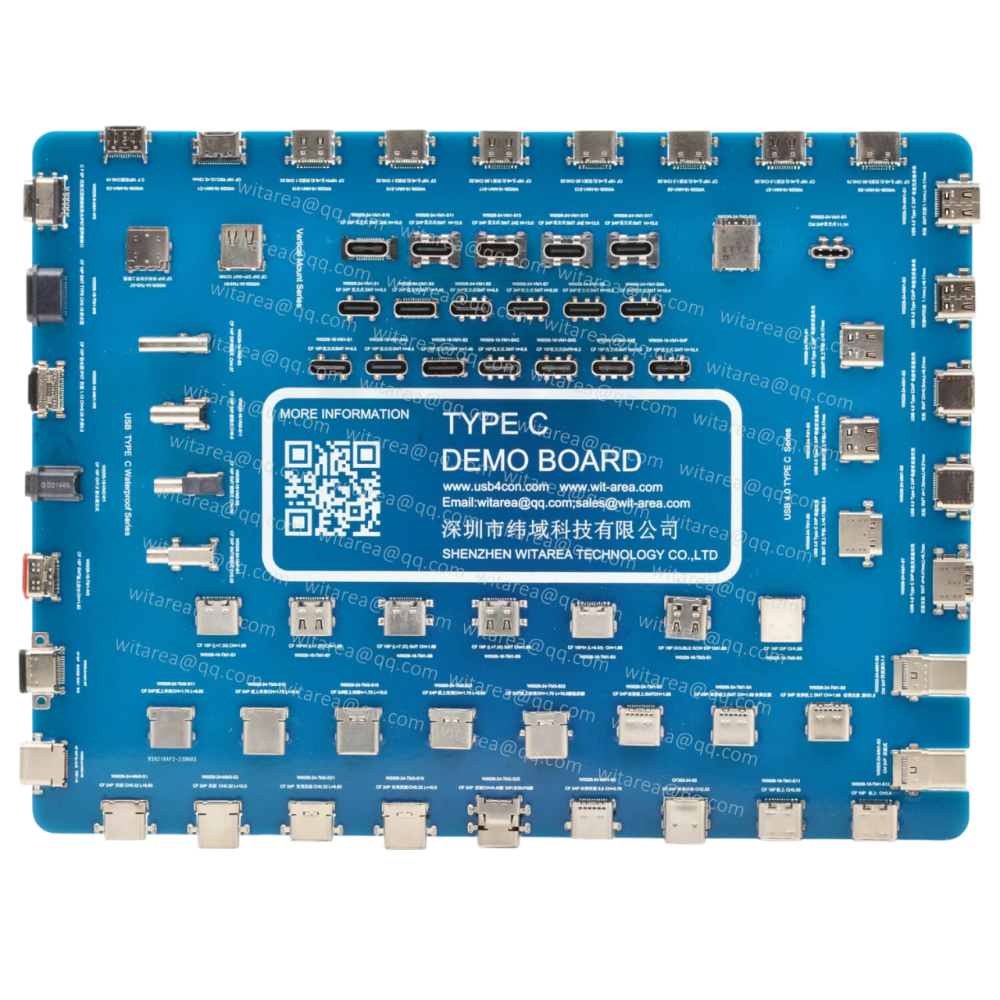

USB TYPE C Connector Sample board



Parameter

Part No.: 67.W0026-24-VM1-S6
Equivalent
Products: Usb 3.0/3.1 type C 24pin vertical-mount dual-row SMT receptacle, H=6.45mm,L=6.45mm, 48V 5A 240W
Central-Height(1CH) H=6.45mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 24
PCB mount type: Vertical-mount
Orientation: Vertical
Mount position: Vertical-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 4.0mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-24-VM1-S6-TYPE-C-3_1-3_2-24PIN-RECEPTACLE--VERTICAL-MOUNT--DUAL-ROW-SMT-H6_45MM-L6_45MM.pdf

High-current Usb Type C Connectors
