Home Products USB Connector USB C Connector

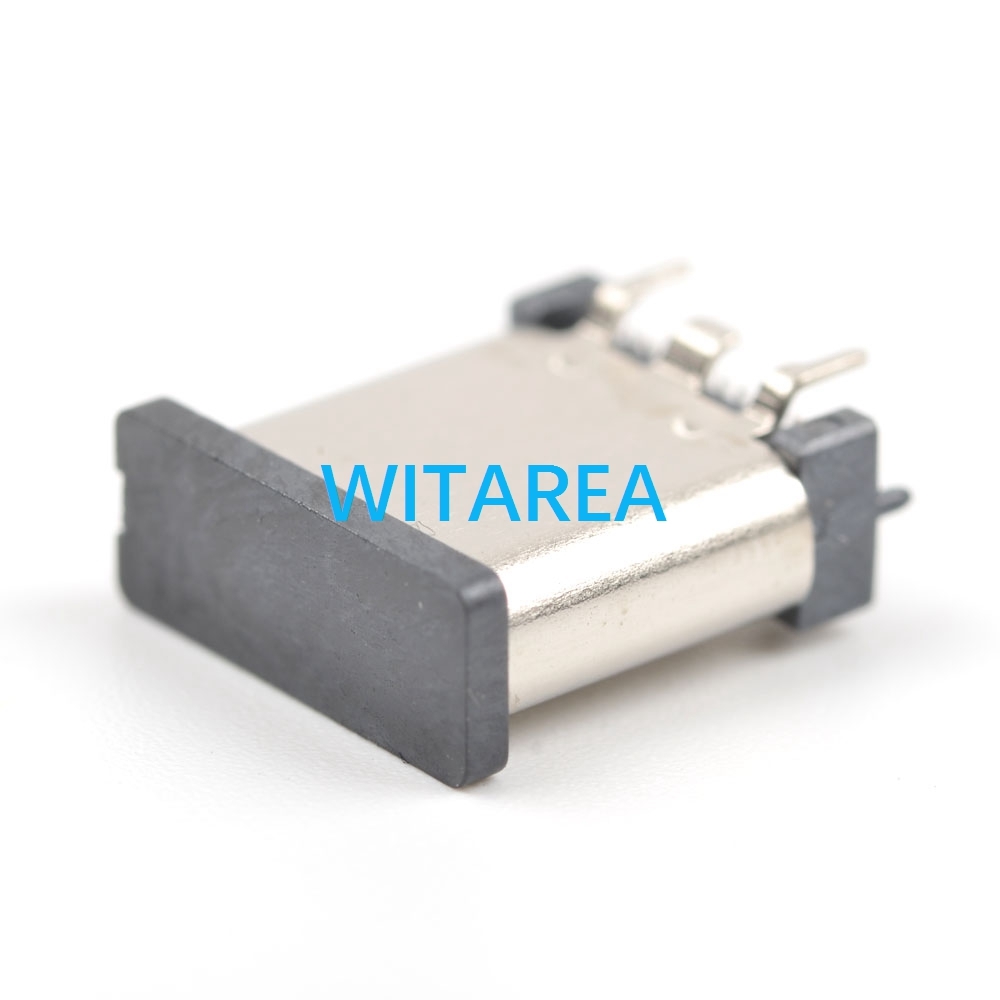

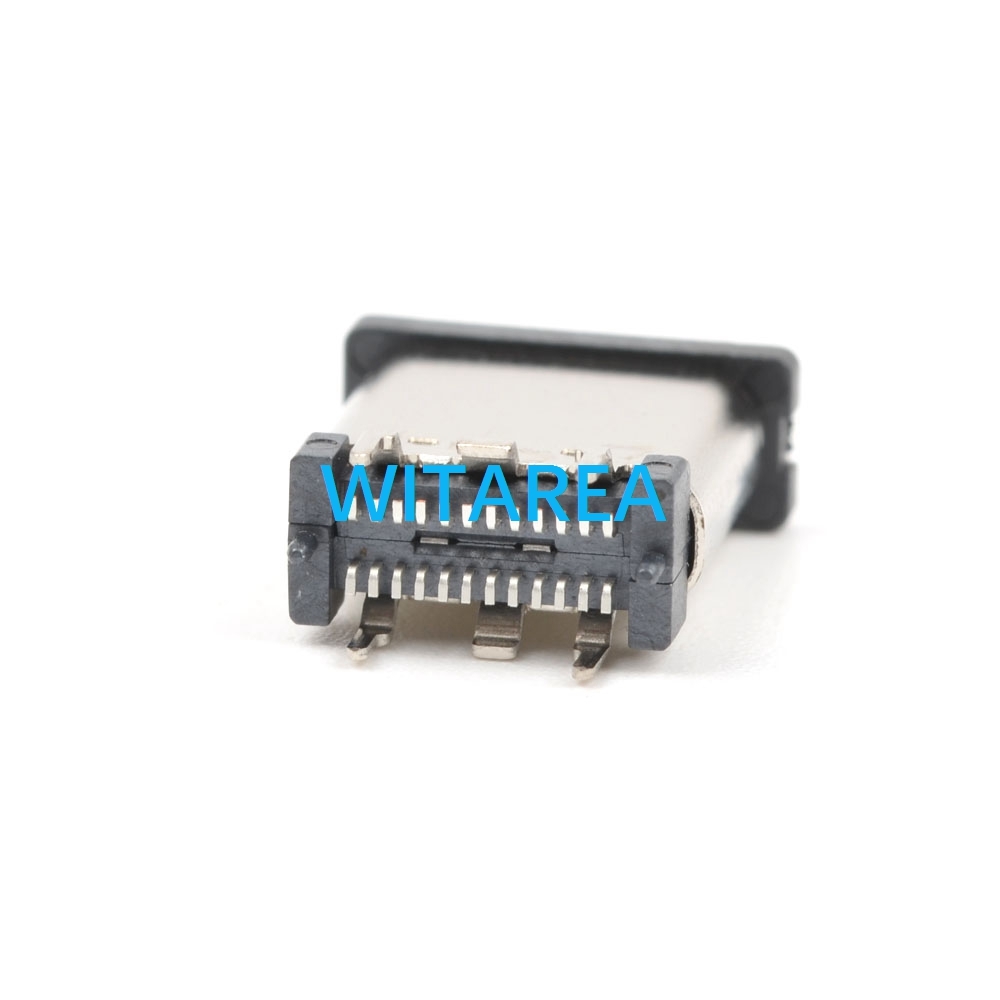

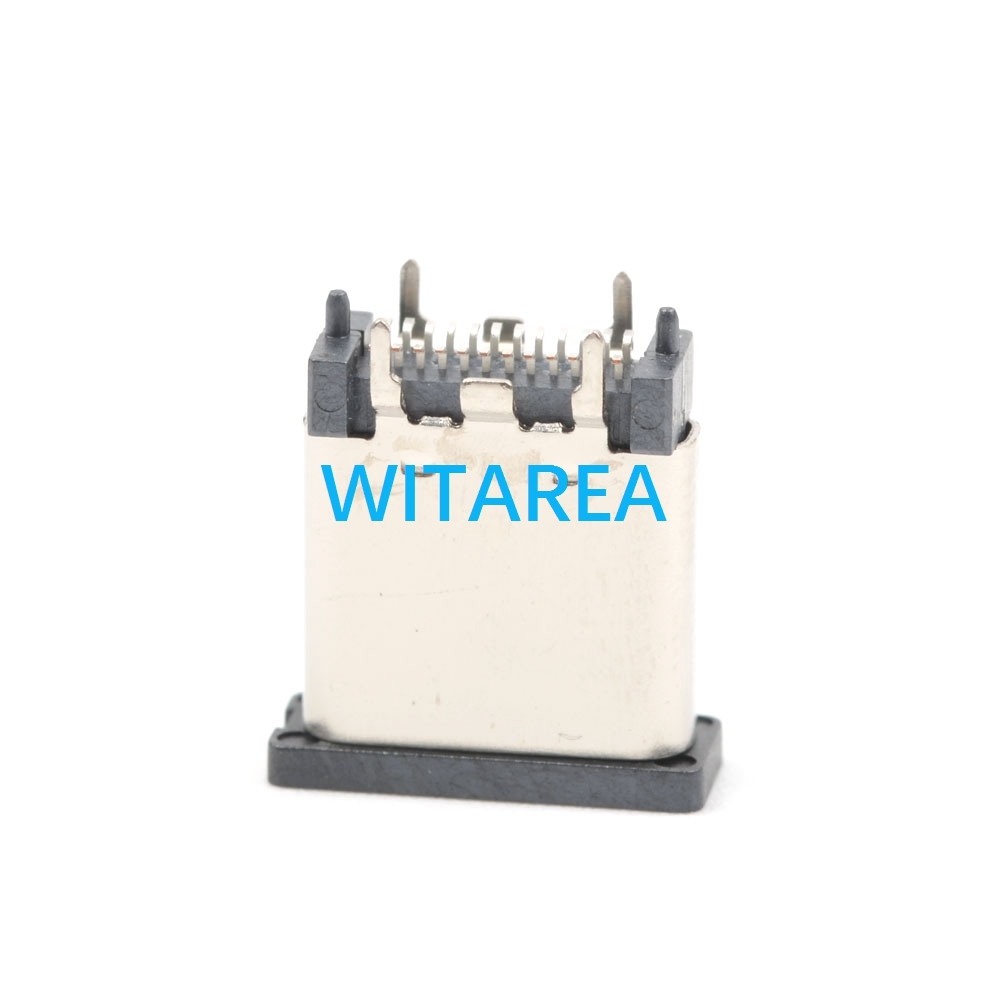

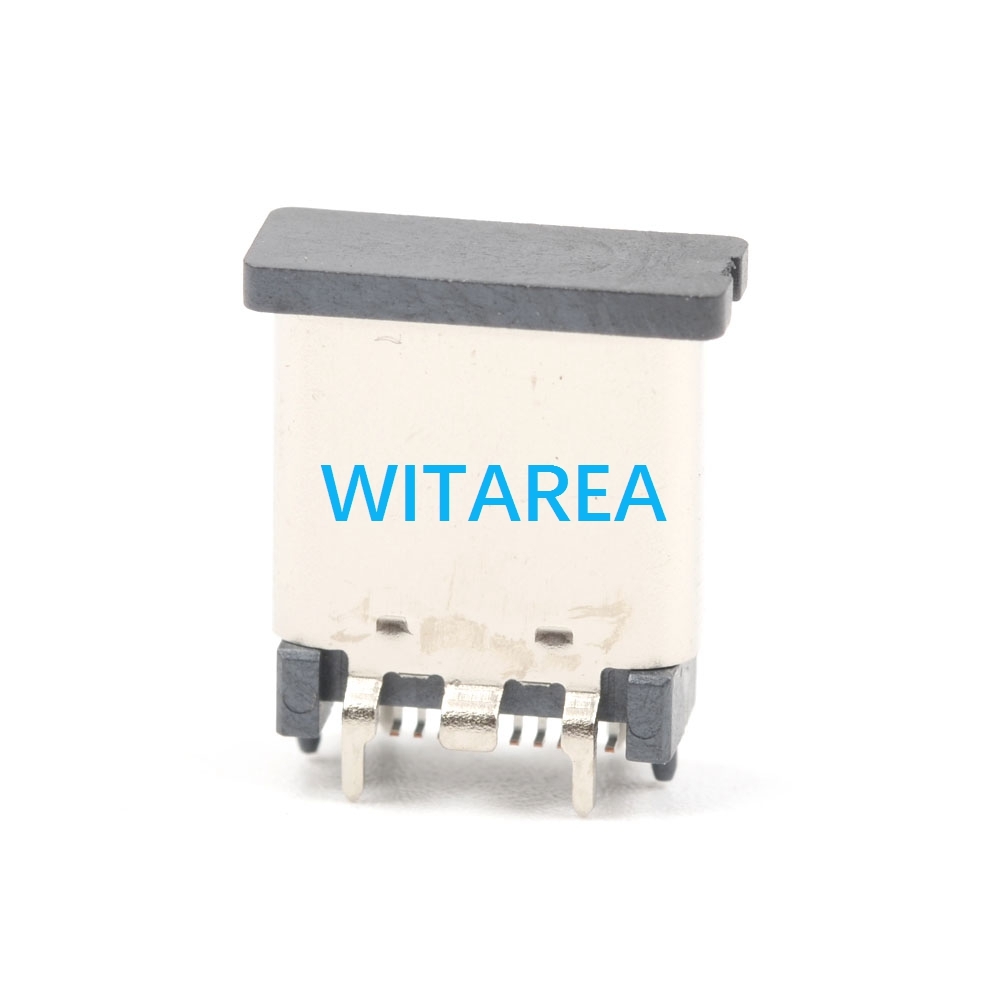

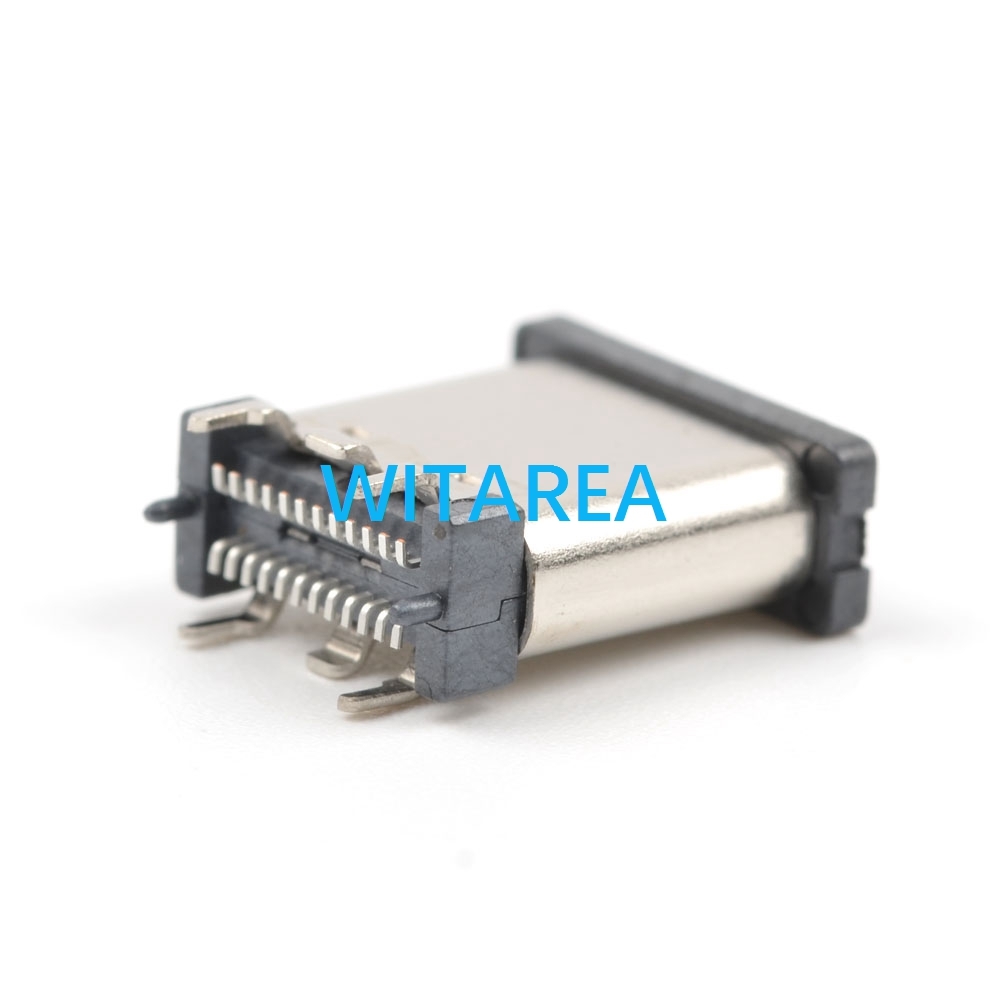

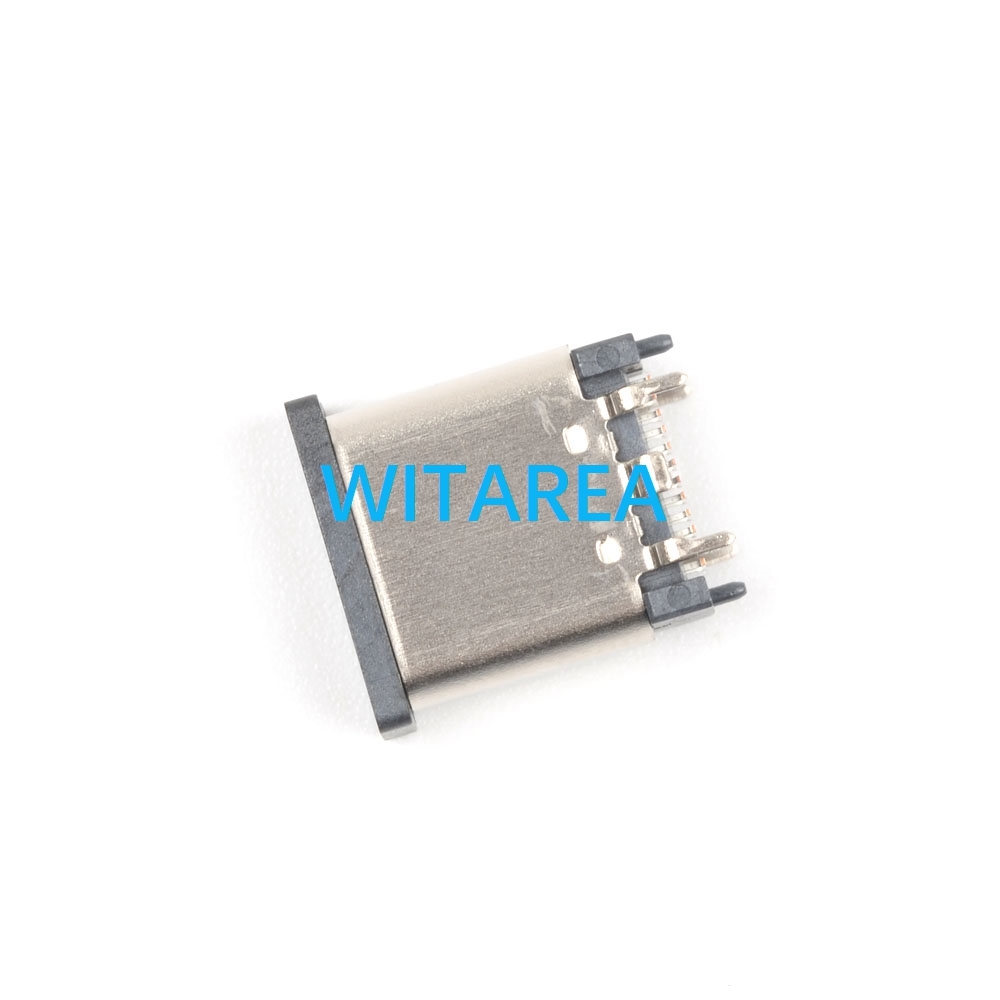

SMT/SMD TYPE C 24PIN Receptacle Socket Vertical mount,H=7.35mm, L=9.25MM

Item.: W0026-24-VM1-S7
Connector style: Type C
USB version: USB3.1/USB4
Gender: receptacle/female plug
PCB mount type: Vertical mount edge mount
Mount position: horizontal,DIP PEG
Shell stake: Through hole
Body Length :10.45mm/10.95mm/11.65mm/12.15mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Parameter

Part No.: W0026-24-VM1-S7
Equivalent
Products: SMT/SMD TYPE C 24PIN Receptacle Socket Vertical mount,H=7.35mm, L=9.25MM
Body length
 10.45mm/10.95mm/11.65mm/12.15mm
PCB thickness 0.8mm/1.0mm,1.2mm
Central-Height(1CH)  CH=9.3 MM
Product Family:  TYPE C USB 3.1/USB4  Connector
Connector style:  Type C
Number of contacts:  24
PCB mount type:  Straddle mount
Orientation:  Horizontal
Mount position: Straddle mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  1.65mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000




Part No. Chart

No.: Part No. CONTACTS DIM A(1Vertical height) DIM B  (1Contact Space) DIM D (1Body Lenth) DIM E (1Inner height)
1 W0026-6-VM1-W3
 6


2 W0026-6-VM1-S7
 6



3 W0026-14-VM2-S3
 14



4 W0026-16-VM1-S1
 16



5 W0026-16-VM2-S6
 16


6 W0026-16-VM2-S11
 16



7 W0026-16-VM1-S4A
 16



8 W0026-16-VM1-S4B
 16



9 W0026-16-VM1-S4C
 16



10 W0026-16-VM1-S4D
 16



11 W0026-16-VM1-S4E
 16



12 W0026-16-VM1-S4F 16


13 W0025-16-VM1-S1
 16


14 W0026-24-VM1-W1
 24



15 W0026-24-VM1-S1
 24



16 W0026-24-VM1-S5
 24



17 W0026-24-VM1-S7
 24



18 W0026-24-VM1-S8
 24



19 W0026-24-VM1-S9A
 24



20 W0026-24-VM1-S9B
 24



21 W0026-24-VM1-S10
 24



22 W0026-24-VM1-S11
 24



23 W0026-24-VM1-S13
 24



24 W0026-24-VM1-S15
 24



25 W0026-24-VM1-S17
 24



26 W0028-24-VM1-S1
 24



27 W0025-24-VM1-S1
 24








Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

W0026-24-VM1-S7-TYPE-CF-24PSMT-H9_25mm-USB-3_1-TYPE-C-FEMALE-VERTICAL_2.pdf

Type C Female PlugUsb C Female PlugStraddle Type C Plug
