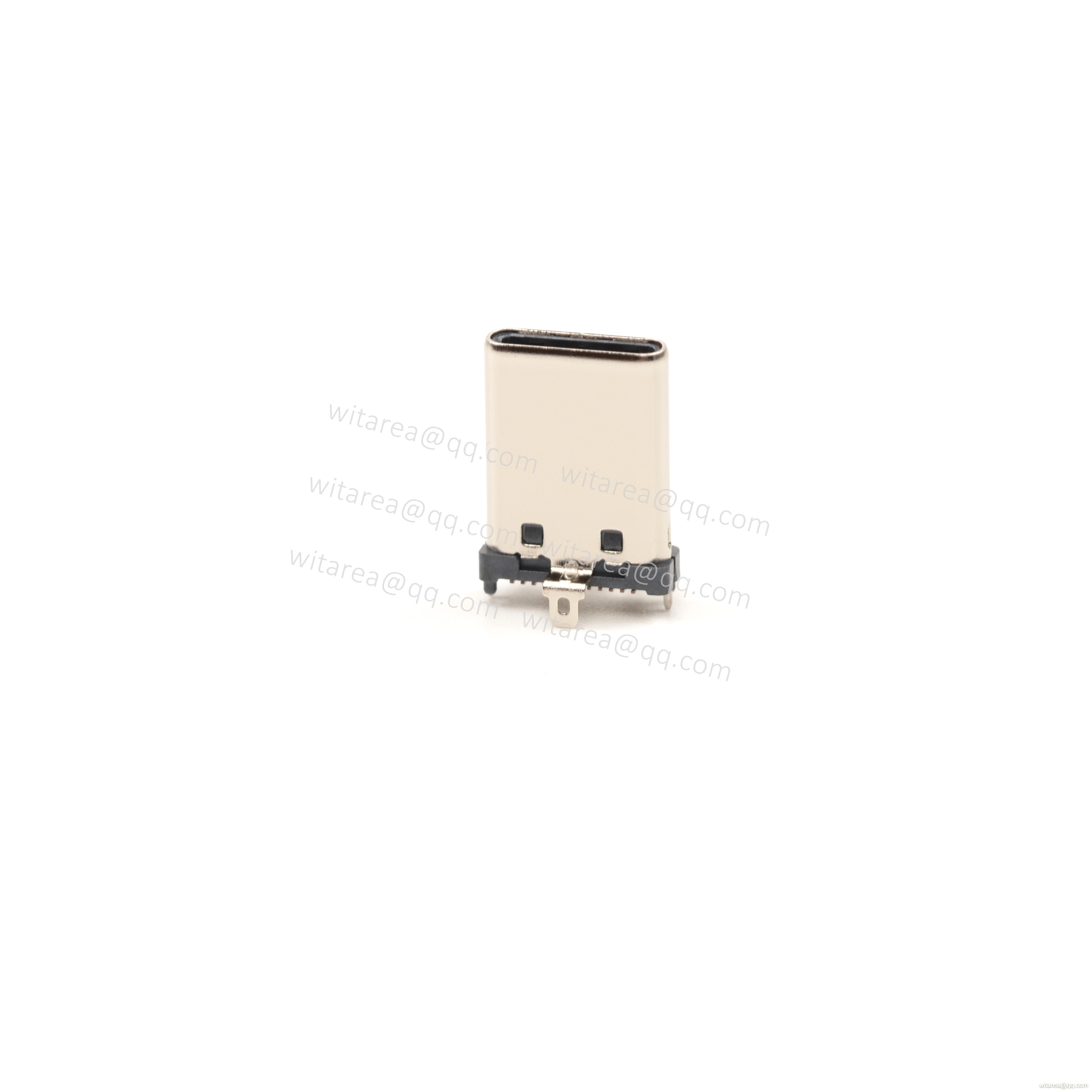

USB3.1 TYPE C 24PIN MALE PLUG, VERTICAL-MOUNT, DUAL ROW SMT,H=11.1MM, L=8.66MM

Item.: 122.W0025-24-VM1-S1
Connector style: Type C
USB version: USB3.1/USB4
Gender: Plug
PCB mount type: Vertical mount
Mount position: Vertical mount,DIP PEG
Shell stake: Through hole
Body Length :8.66mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb3.1 type c 24pin male plug , vertical-mount dual-row SMT , H=11.1mm, L=8.66mm

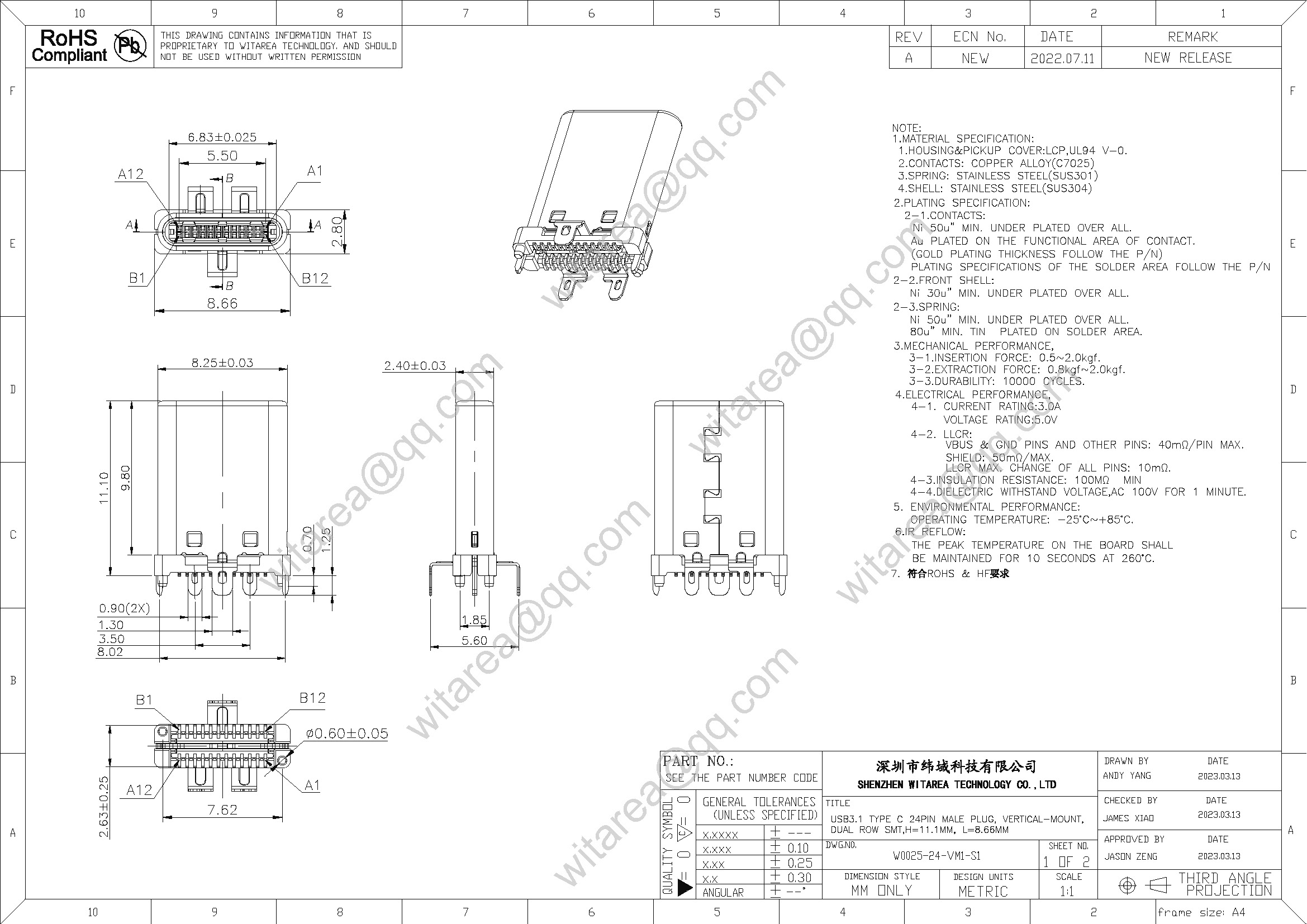

DRAWING

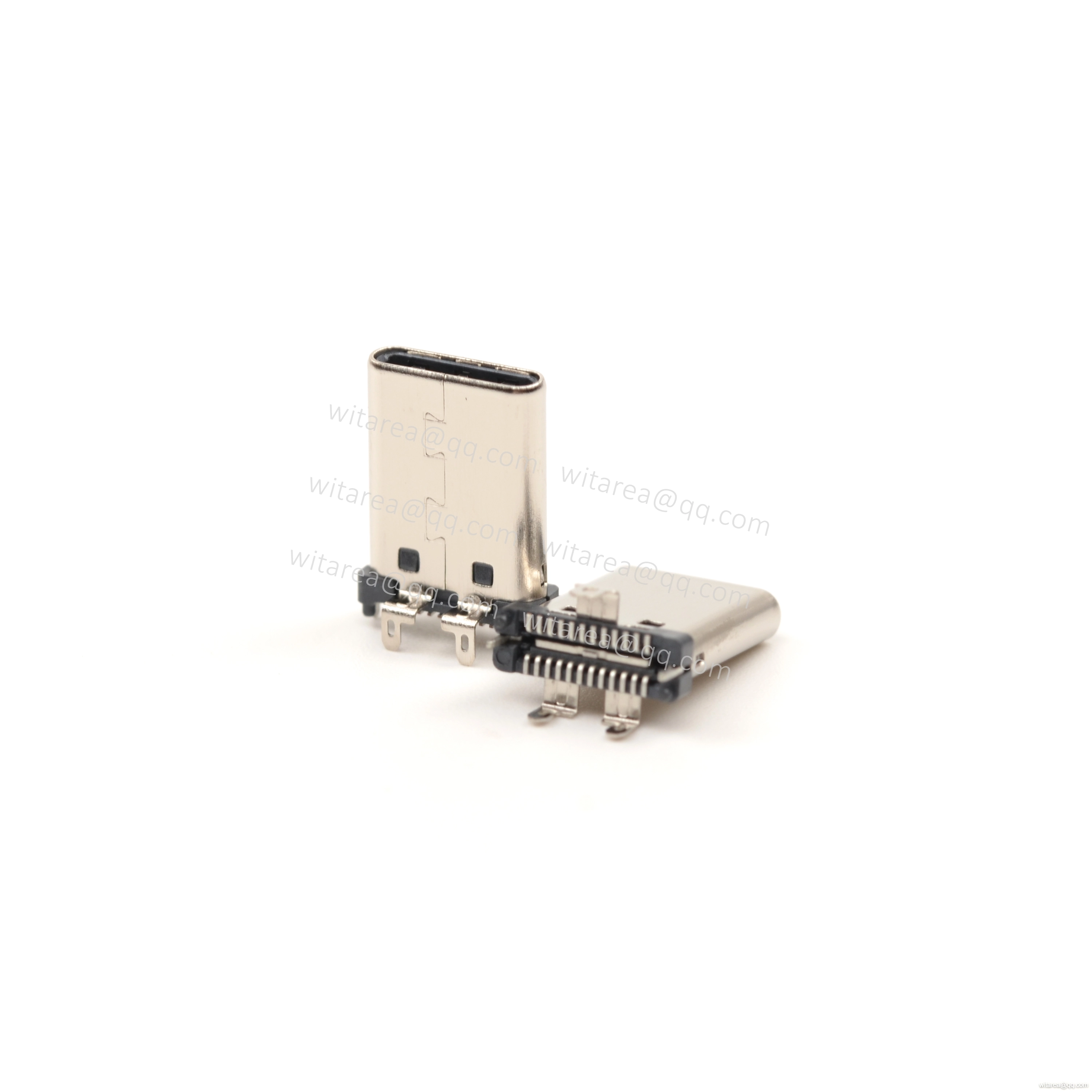

USB TYPE C Connector Sample board

Parameter

Part No.: 122.W0025-24-VM1-S1
Products: Usb3.1 type c 24pin male plug , vertical-mount dual-row SMT , H=11.1mm, L=8.66mm
Central-Height(CH) H=11.1mm
Product Family:  TYPE C USB 3.1  Connector
Connector style:  Type C
Number of contacts:  24
PCB mount type: Vertical mount
Orientation: Vertical
Mount position: Vertical mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  1.25mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0025-24-VM1-S1-USB3_1-TYPE-C-24PIN-MALE-PLUG-VERTICAL-MOUNT--DUAL-ROW-SMTH11_1MM-L8_66MM.pdf

Usb 3.1 Male PlugSmt Type C Male Plug
