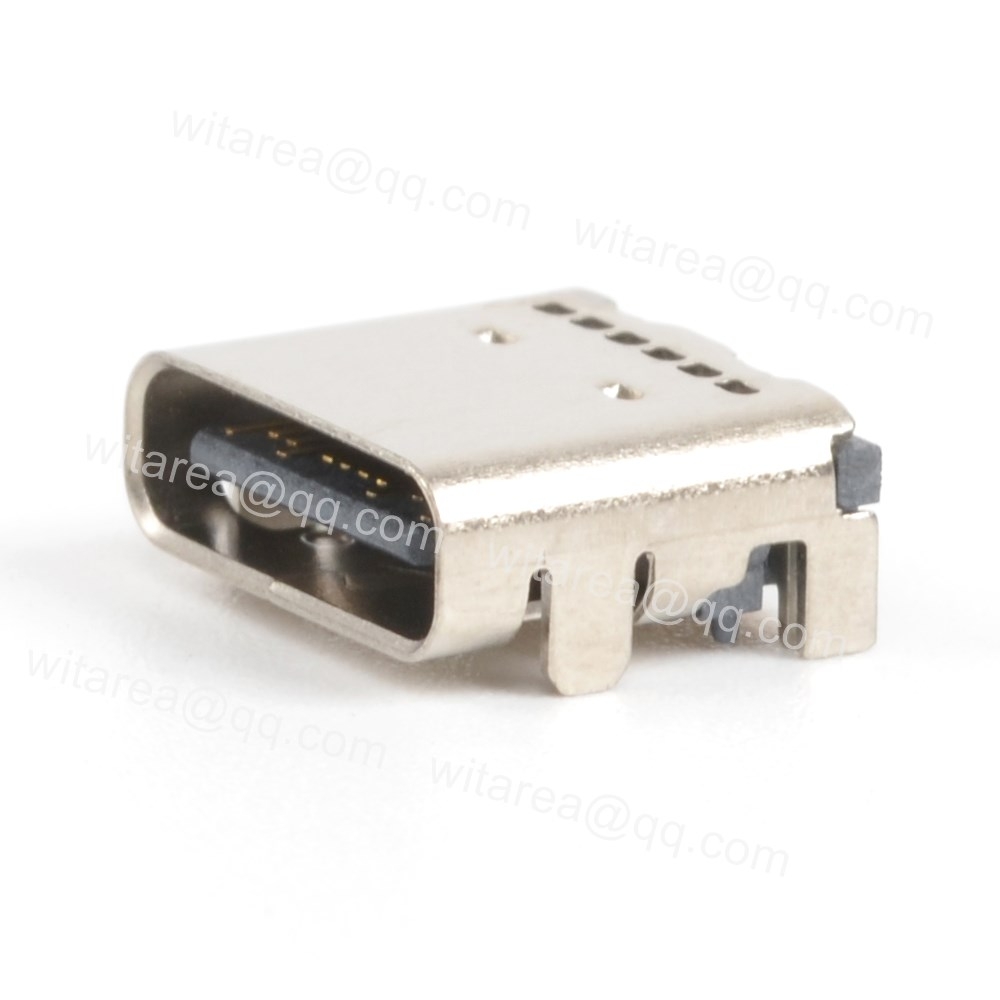

WATERPROOF SMT TYPE C 16PIN Receptacle Surface MOUNT,CH=2.1MM, L=7.41MM

Item.: W0026-16-MM1-W7
Connector style: Type C
USB version: USB2.0
Gender: receptacle
PCB mount type: Surface mount,top mount
Mount position: Surface mount,DIP PEG
Shell stake: Through hole
Body Length :7.41mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

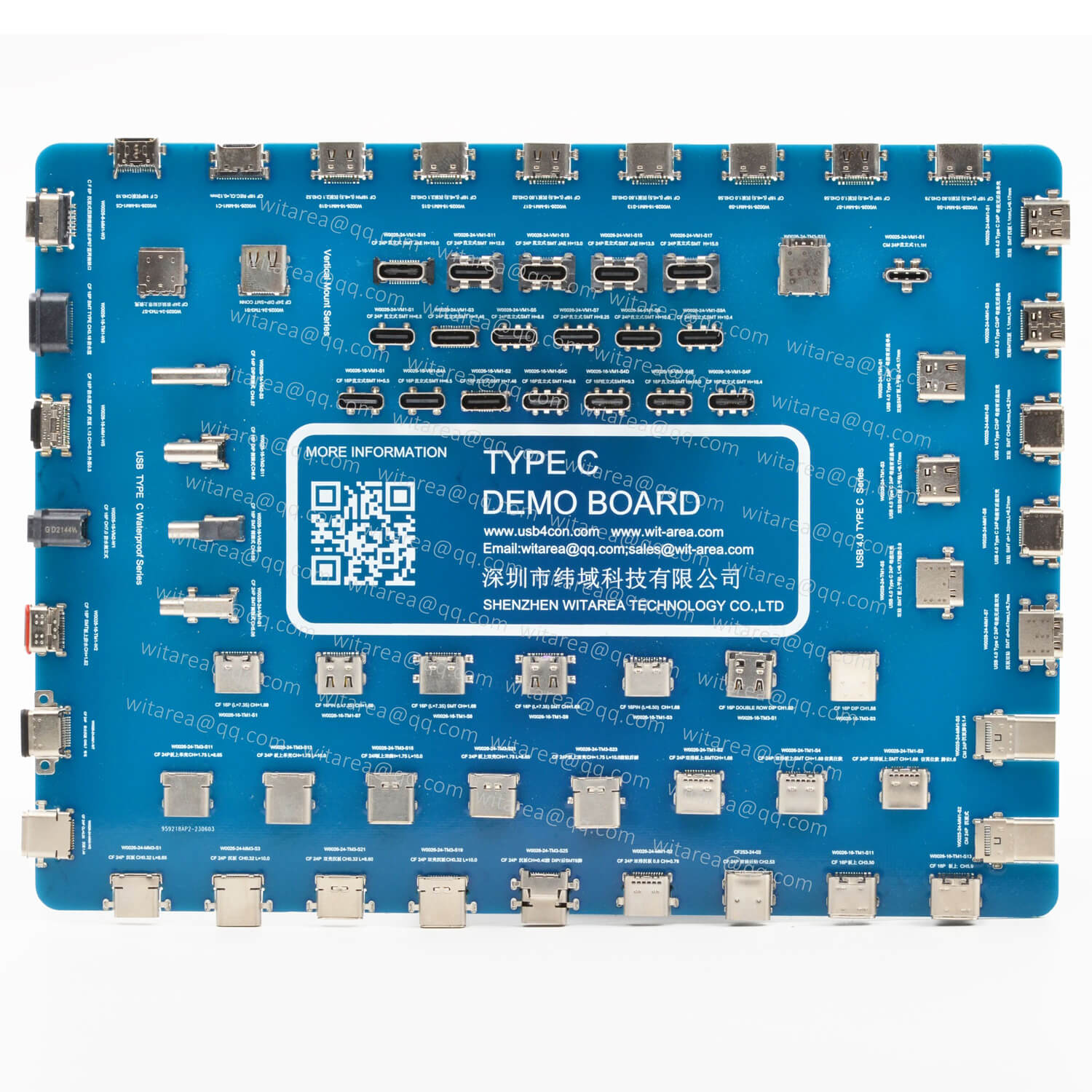

USB TYPE C Connector Sample board


Parameter

Part No.: W0026-16-MM1-W7
Equivalent
Products: SMT/SMD TYPE C 24PIN Receptacle Socket Surface MOUNT,CH=2.1MM, L=7.41MM
Central-Height(1CH)  CH=7.41 MM
Product Family:  TYPE C USB 2.0  Connector
Connector style:  Type C
Number of contacts:  16
PCB mount type:  Surface mount
Orientation:  Horizontal
Mount position: Vertical mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  0.8mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-16-MM1-W7-NSC1H1T1P5-C-F-16P.pdf

WaterproofWaterproof Type C
