ParameterDatasheet

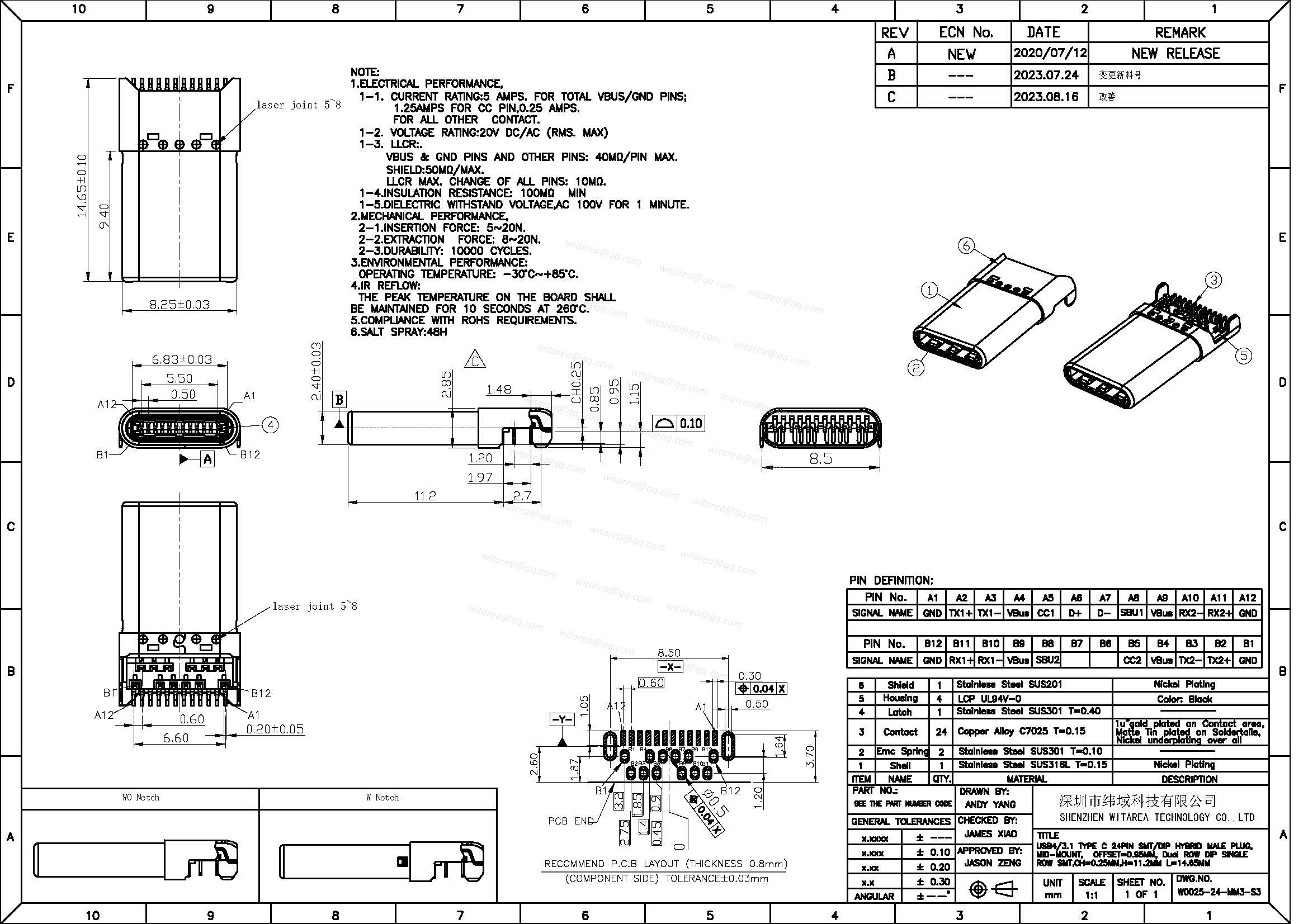

DRAWING

USB TYPE C Connector Sample board

Parameter

Part No.:	154.W0025-24-MM3-S3
Products:	USB4/3.1 TYPE C 24PIN SMT/DIP HYBRID MALE PLUG, MID-MOUNT, OFFSET=0.95MM, Dual ROW DIP SINGLE ROW SMT,CH=0.25MM,H=11.2MM L=14.65MM
Central-Height(1CH)	0.25MM
Product Family:	TYPE C USB 3.1 Connector
Connector style:	Type C
Number of contacts:	24
PCB mount type:	Surface mount
Orientation:	Horizontal
Mount position:	Middle mount,DIP PEG
Current Rating:	5A
Shell stake:	Through hole
Shell stake lengths:	1.25mm
Locating Peg:	With locating peg
Application:	USB C device
Product Status:	Active
Certification:	Rohs(1EN50581),REACH
Mating Cycles:	10000

Application

该 USB4 / USB 3.1 Type-C 24PIN 混合插头广泛应用于各类便携式智能产品及消费电子，包括：
Type-C 接口的 U 盘（USB闪存盘）
防蚊器（如 Heatit 等智能驱蚊设备）
手机酒精测试仪
与手机连接使用的各类智能小设备
安全认证设备（U盾、UKey、USB Token）
智能传感器、IoT 小型设备
便携式数据存储产品
使用 Type-C 供电或传输的智能随身配件

Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

153-154-W0025-24-MM3-S3-USB-TYPE-C-24P-PLUG-CH0_259_4H3--1.pdf
