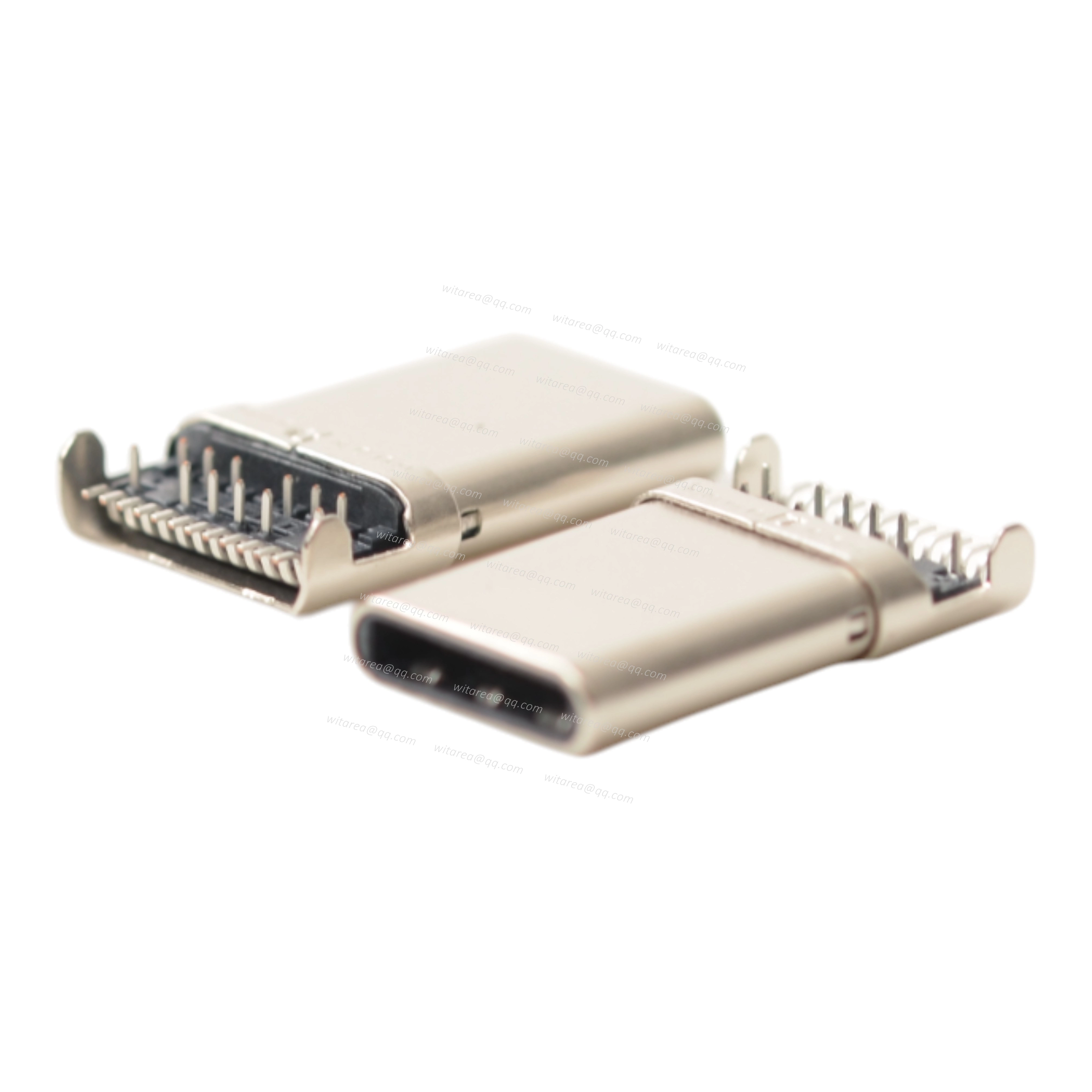

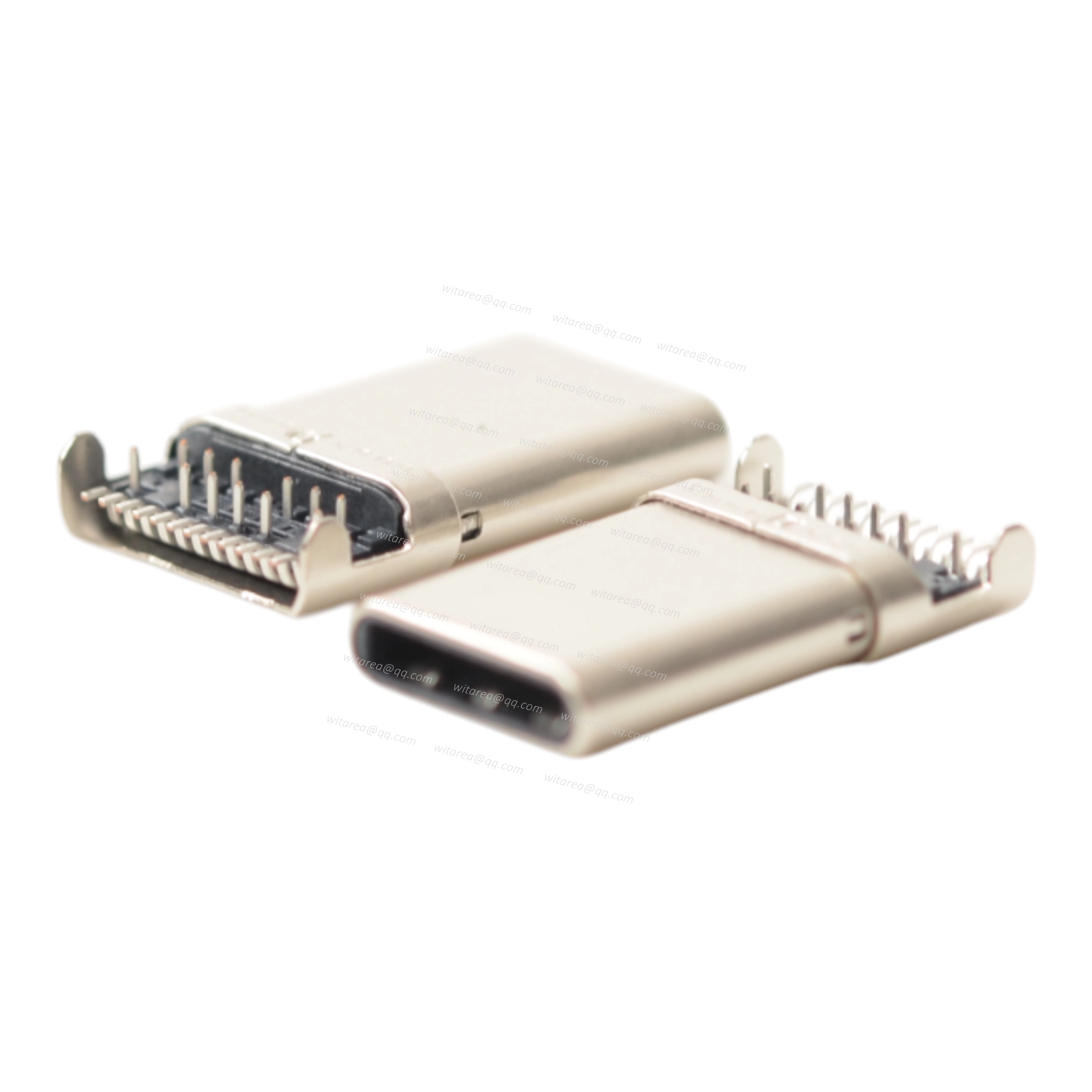

USB4/USB 3.1 Type-C 24-Pin SMT/DIP Hybrid Male Plug, Mid-Mount, Offset 0.95 mm, CH=0.25 mm, H=11.2 mm, L=14.65 mm

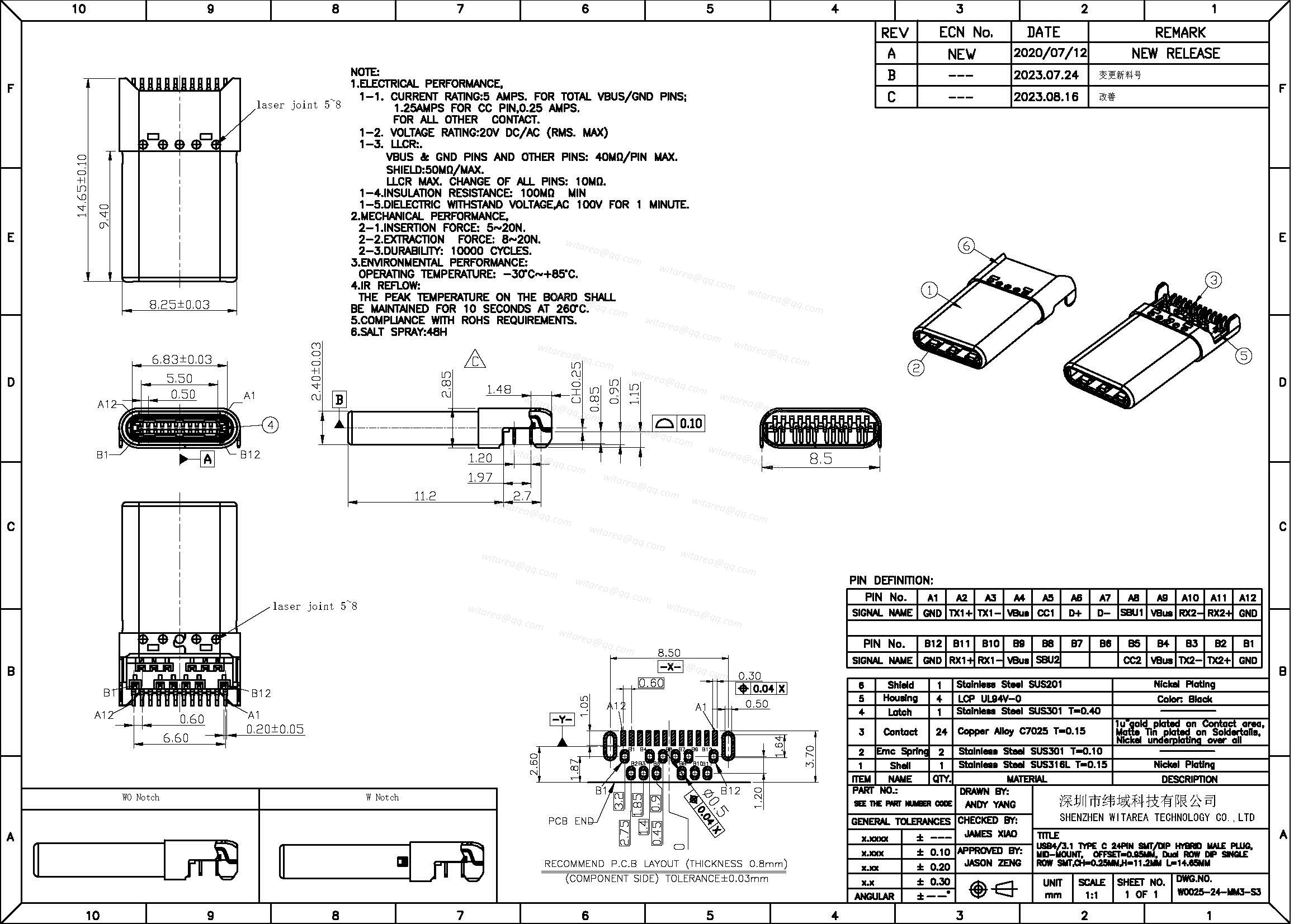

DRAWING

USB TYPE C Connector Sample board

Parameter

Part No.:	154.W0025-24-MM3-S3
Products:	USB4/3.1 TYPE C24PINSMT/DIP HYBRID MALE PLUGMID-MOUNT,OFFSET=0.95MM,DuaI ROW DIP SINGLEROW SMT,CH=0.25MM,H=11.2MM L=14.65MM
Central-Height(1CH)	0.25MM
Product Family:	TYPE C USB 3.1  Connector
Connector style:	Type C
Number of contacts:	24
PCB mount type:	Surface mount
Orientation:	Horizontal
Mount position:	Middle mount,DIP PEG
Current Rating:	5A
Shell stake:	Through hole
Shell stake lengths:	1.25mm
Locating Peg:	With locating peg
Application:	USB C device
Product Status:	Active
Certification:	Rohs(1EN50581),REACH
Mating Cycles:	10000



Application

This USB4/USB 3.1 Type-C 24-pin hybrid plug is suitable for a wide range of compact smart devices and consumer electronics, including:
USB flash drives (Type-C U-disk)
Mosquito repellent devices (e.g., Heatit smart repeller)
Mobile alcohol breath analyzers
Portable smart gadgets that connect to mobile phones
Security authentication devices (U-Shield / USB Token / UKey)
Smart sensors and IoT mini devices
Compact data storage devices
Intelligent personal accessories powered by Type-C interface

Application

Hybrid SMT + DIP design for excellent solder strength and signal integrity
Mid-mount structure reduces product height and suits ultra-thin devices
0.95 mm offset design for flexible PCB layout
High-speed compatible with USB4, USB3.2, USB3.1, PD fast charging
Dual-row DIP pins ensure strong mechanical retention
Reinforced stainless-steel shell increases durability and EMI shielding
Precision 0.25 mm contacts designed for stable high-frequency transmission
Suitable for mass-production assembly and automated SMT processes

Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.
