Home Products USB Connector USB 2.0 Connector

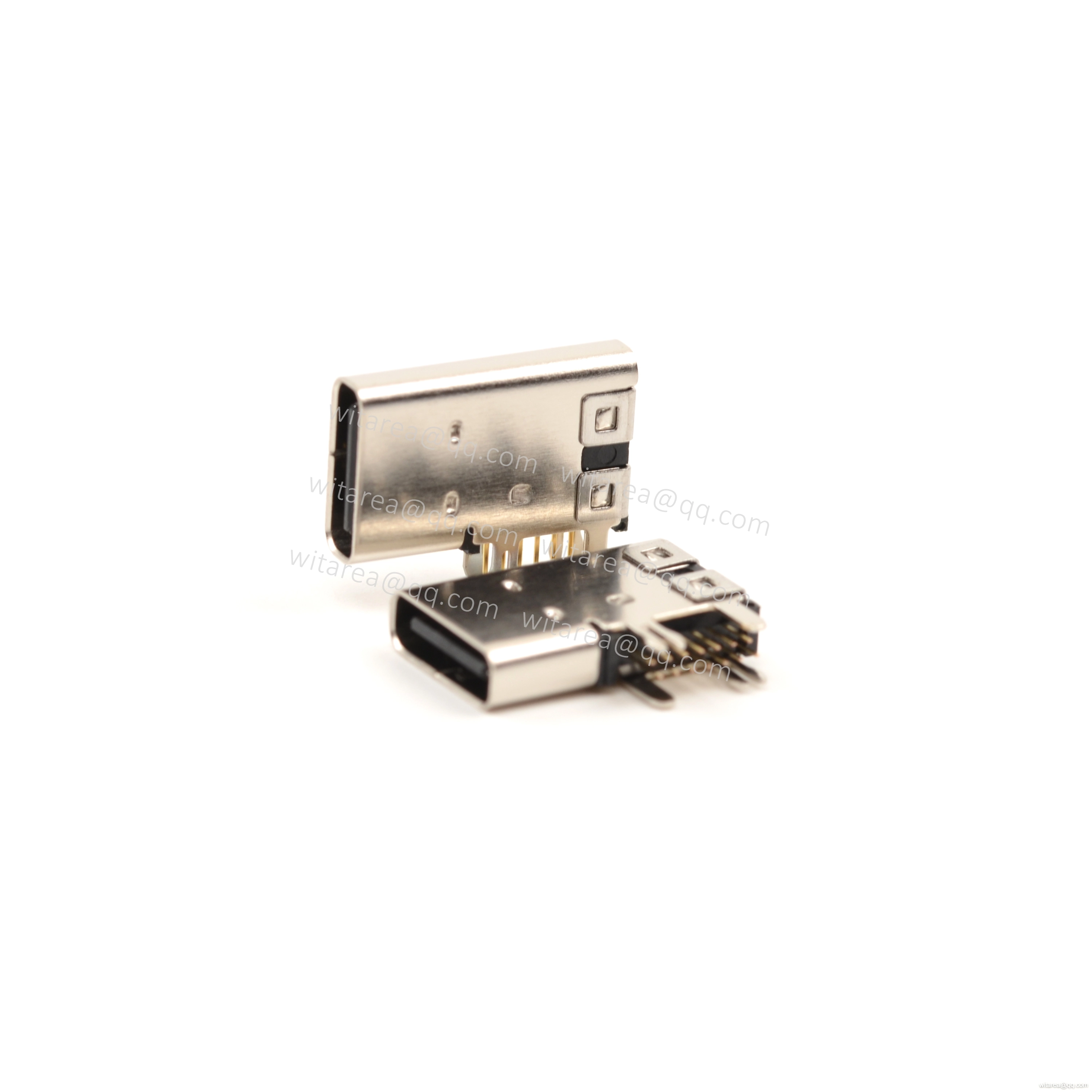

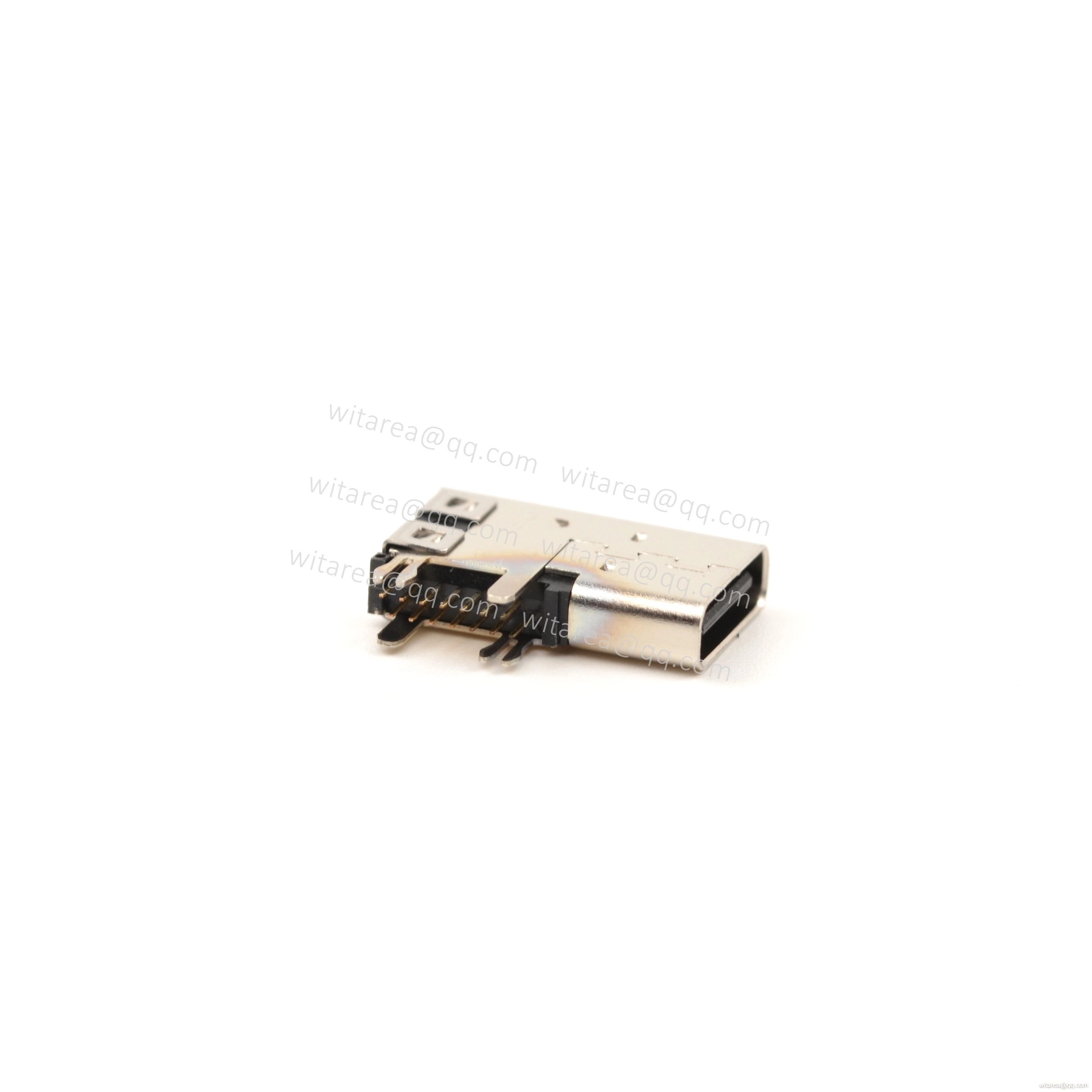

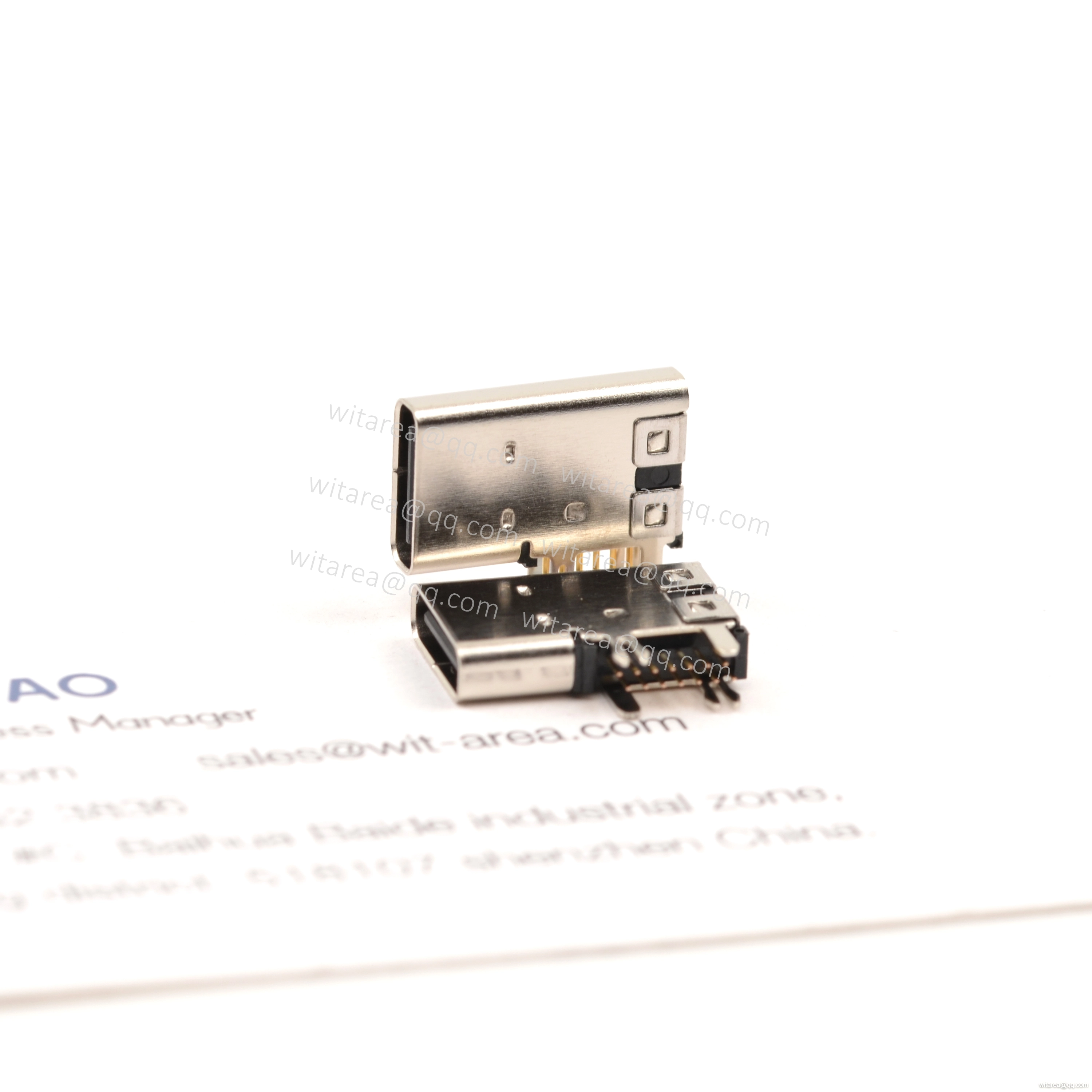

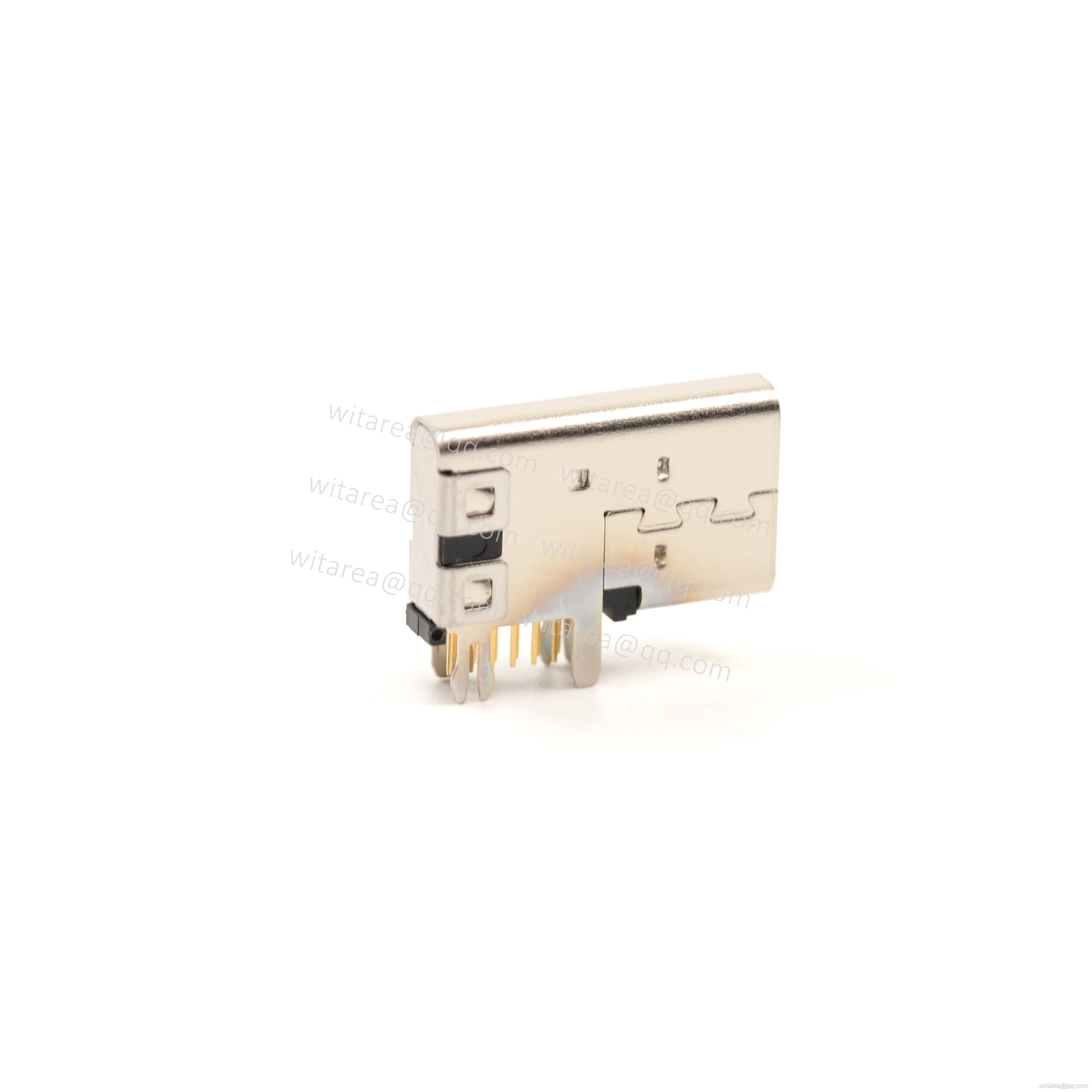

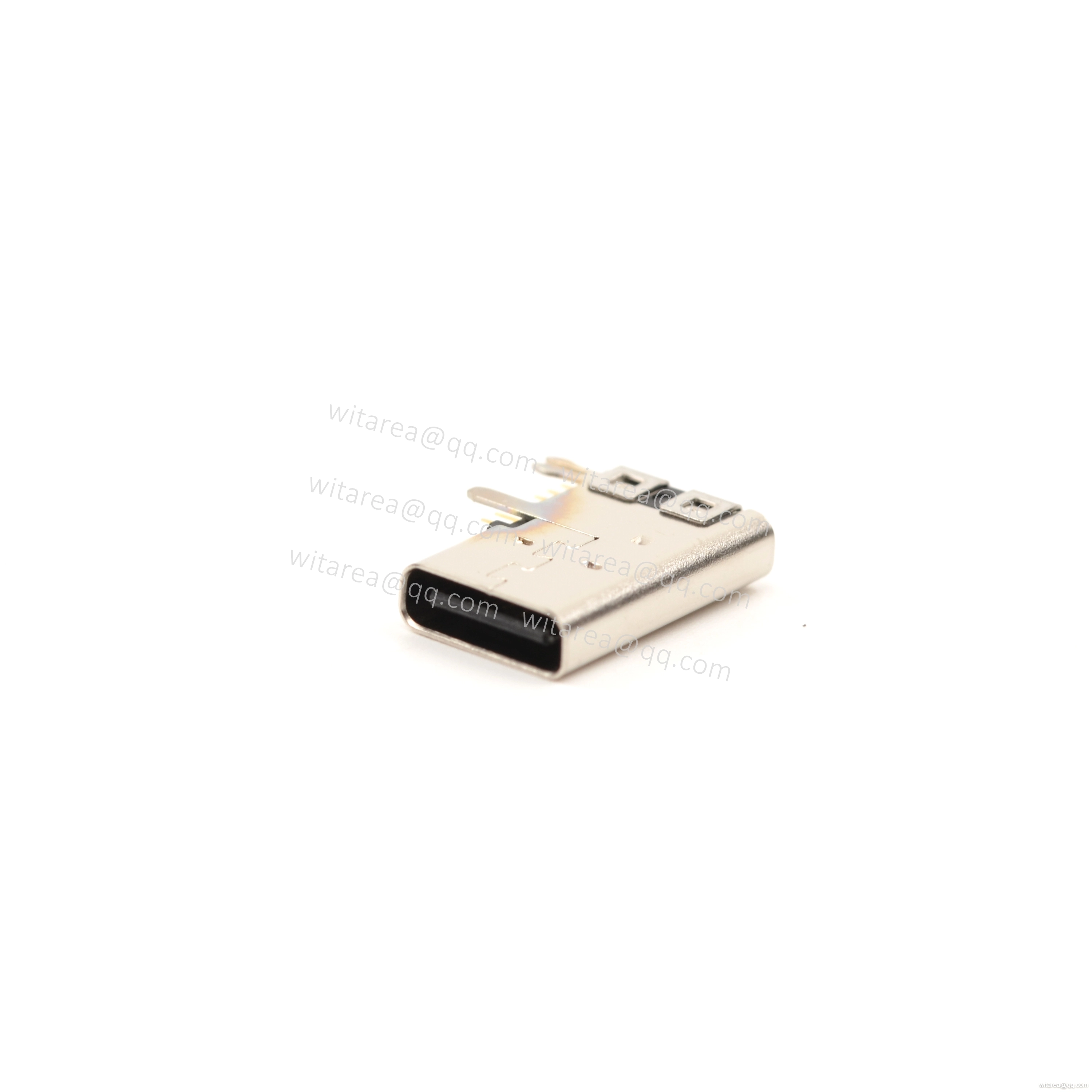

USB2.0 TYPE C 14P FLAG-MOUNT DUAL-ROW DIP RECEPTACLE ,CH=4.57MM,L=14.55MM

Item.: 10.W0026-14-FM2-S3
Connector style: Type C
USB version: USB 2.0
Gender: Receptacle
PCB mount type: Flag-mount
Mount position: Flag-mount,DIP PEG
Shell stake: Through hole
Body Length: 14.55mm
CategoriesUSB 2.0 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type C 14p flag-mount dual-row DIP receptacle with stakes=2.5mm , CH=4.57mm, L=14.55mm , 48V 5A 240W

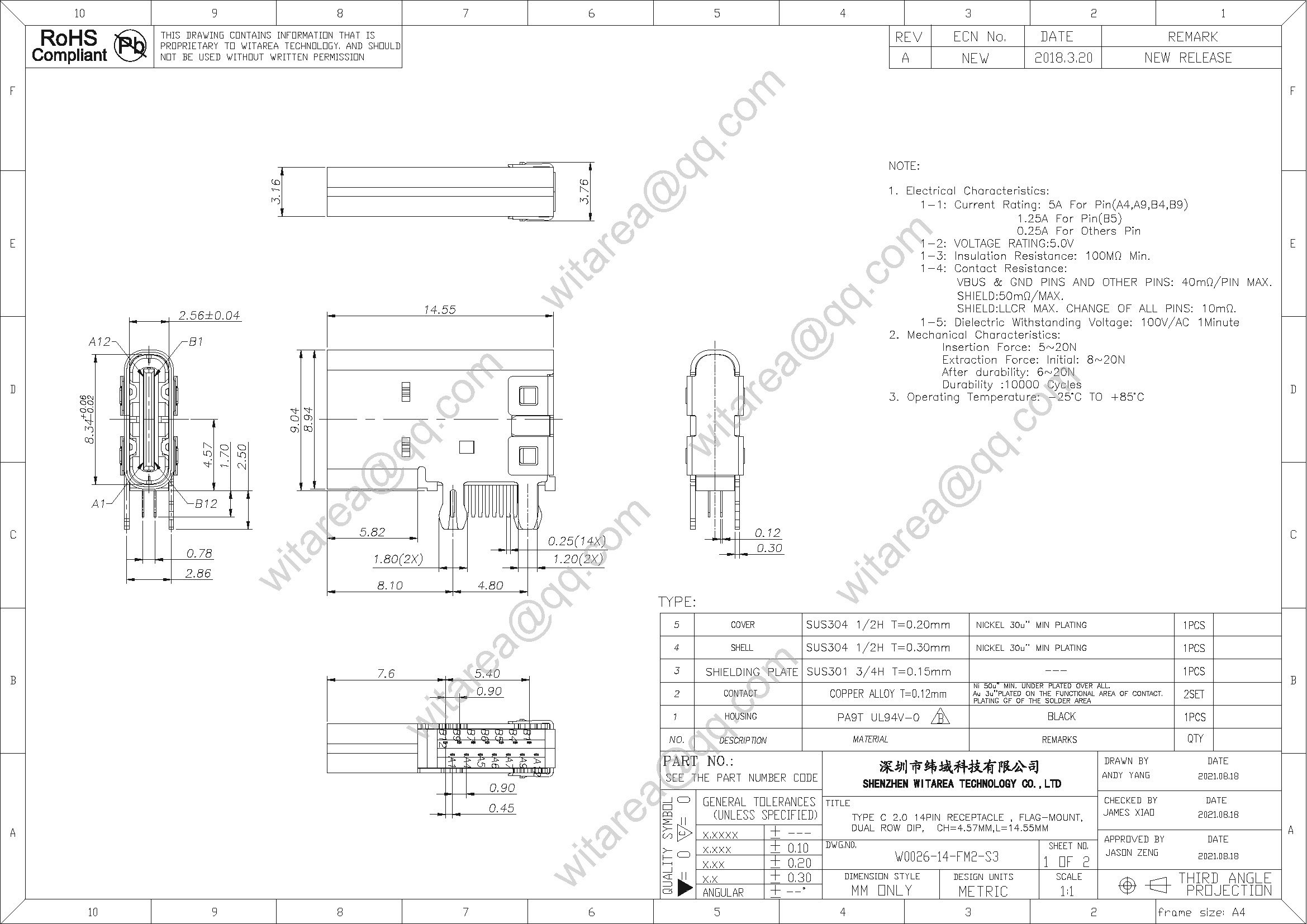

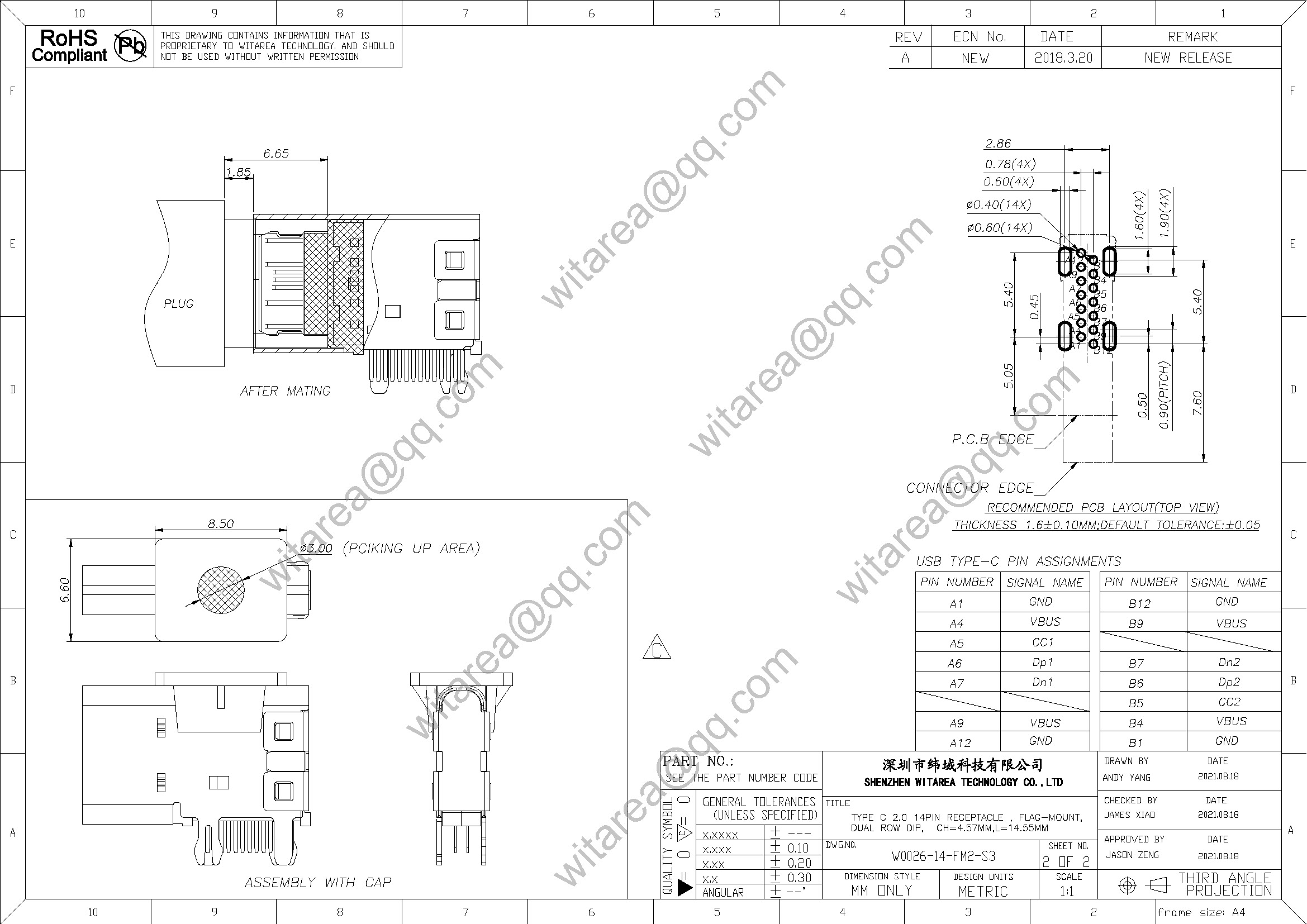

Drawing





USB TYPE C Connector Sample board



Parameter

Part No.: Usb2.0 type C 14p flag-mount dual-row DIP receptacle with stakes=2.5mm , CH=4.57mm, L=14.55mm , 48V 5A 240W
Equivalent
Products: 10.W0026-14-FM2-S3
Central-Height(1CH) CH=4.57mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 14
PCB mount type: Flag-mount
Orientation: Right-angle
Mount position: Flag-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 2.5mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-14-FM2-S3-TYPE-C-2_0-14PIN-RECEPTACLE--FLAG-MOUNT-DUAL-ROW-DIP--CH4_57MML14_55MM.pdf

High-current Usb Type C Connectors
