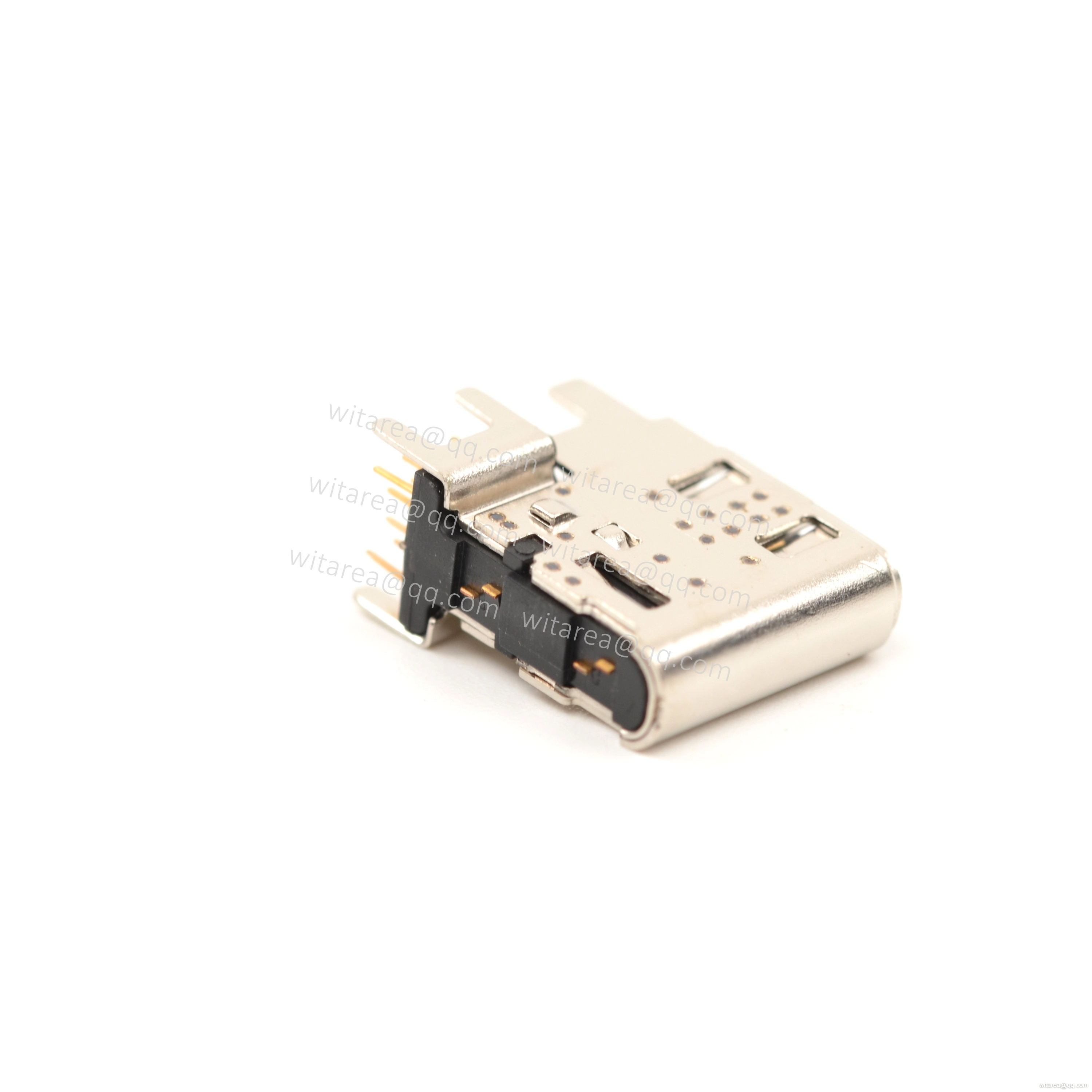

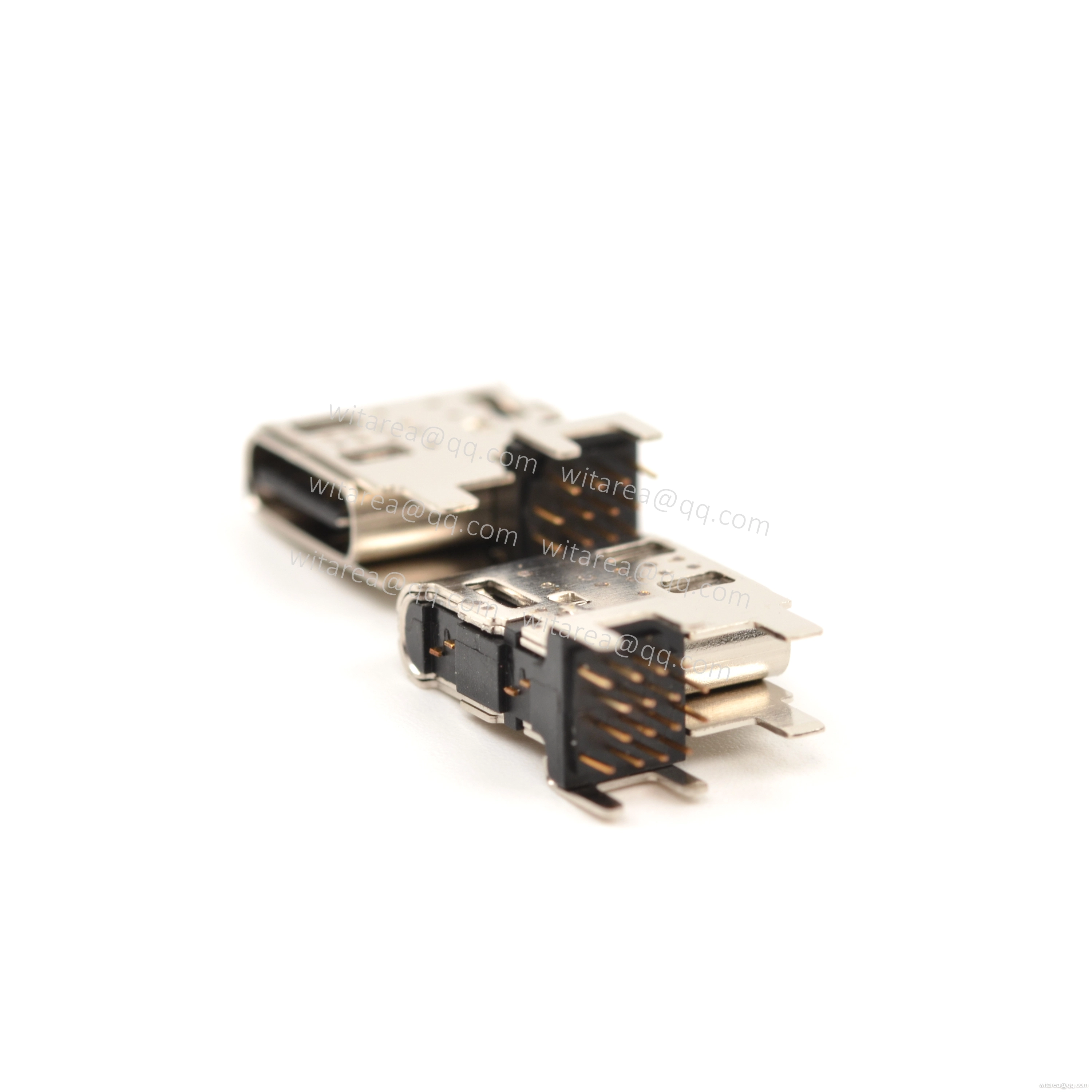

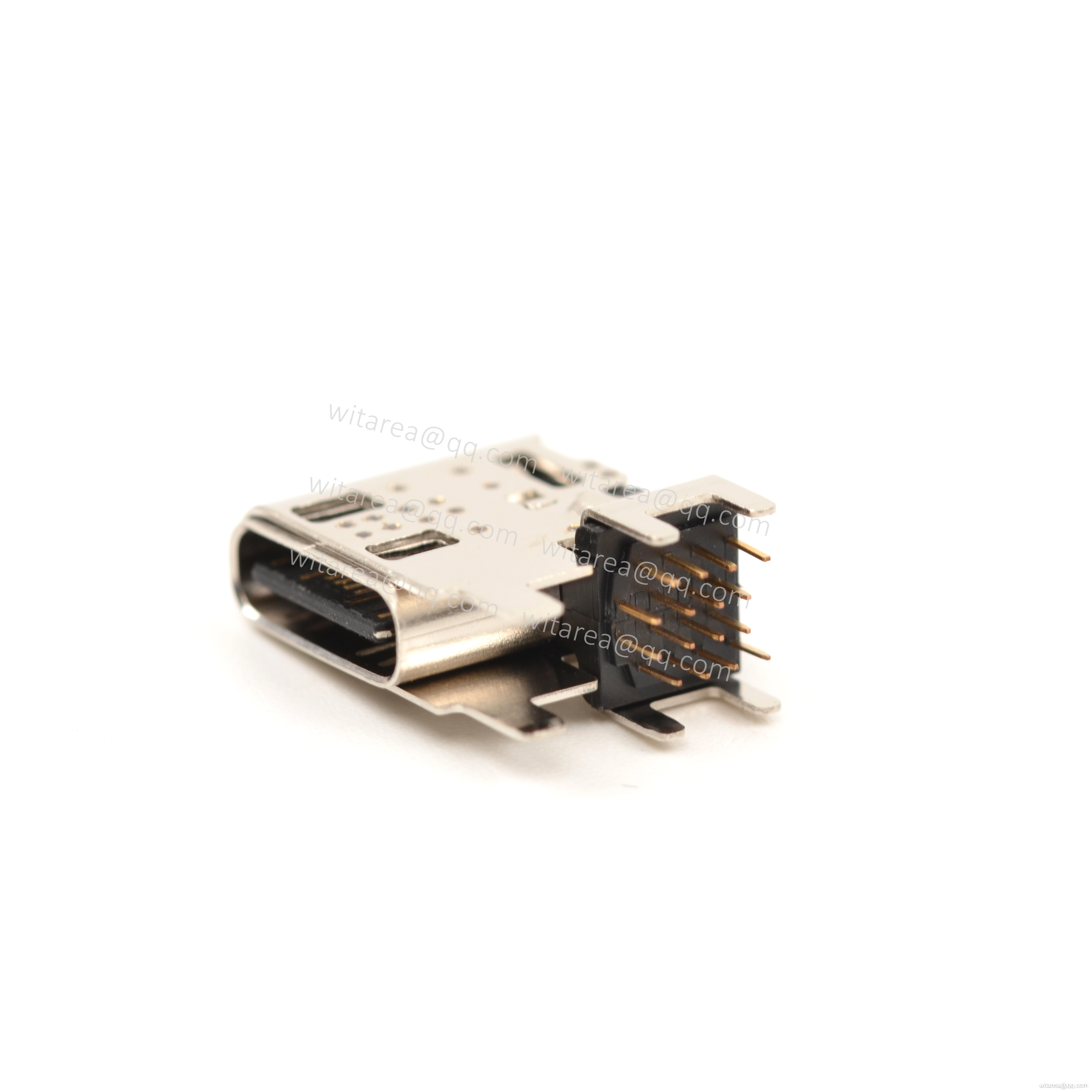

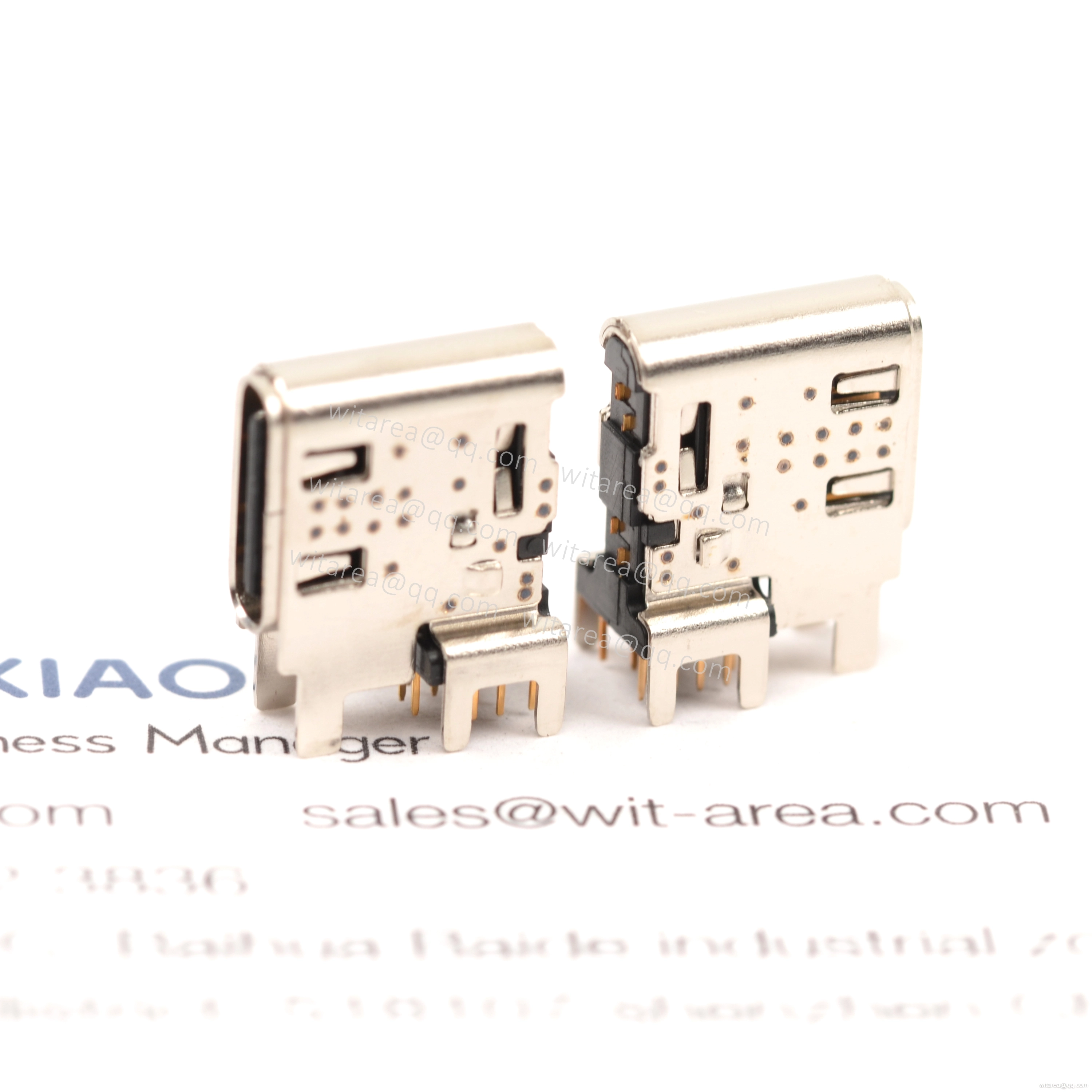

USB2.0 TYPE C 16P FLAG-MOUNT DIP RECEPTACLE ,CH=6.6MM,L=10.4MM

Item.: 30.W0026-16-FM2-S11
Connector style: Type C
USB version: USB 2.0
Gender: Receptacle
PCB mount type: Flag-mount
Mount position: Flag-mount,DIP PEG
Shell stake: Through hole
Body Length: 10.4mm
CategoriesUSB 2.0 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type C 16p flag-mount 4-rows DIP receptacle with bracket, CH=6.6mm, L=10.4mm , 48V 5A 240W

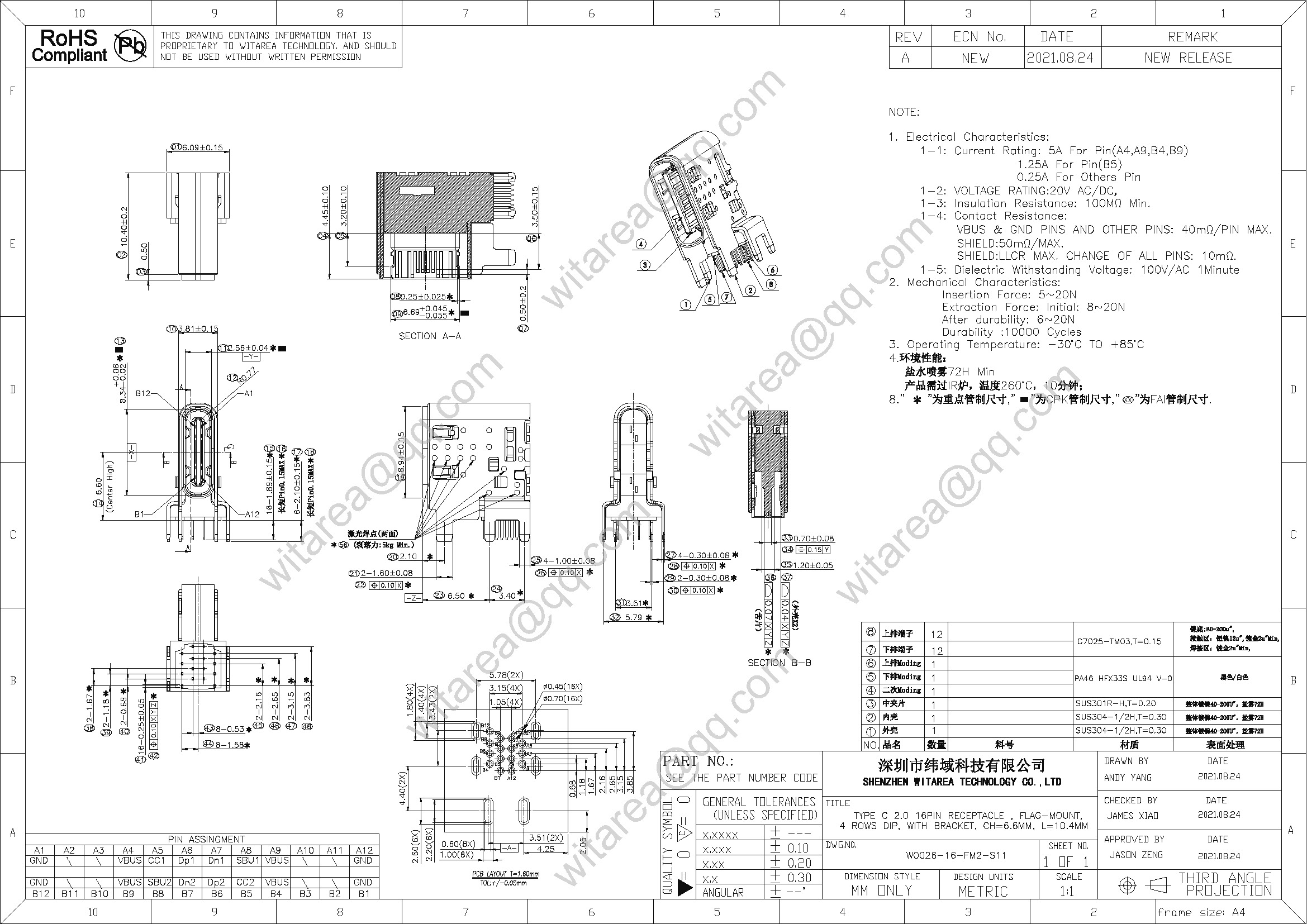

Drawing





USB TYPE C Connector Sample board



Parameter

Part No.: 30.W0026-16-FM2-S11
Equivalent
Products:

Usb2.0 type C 16p flag-mount 4-rows DIP receptacle with bracket, CH=6.6mm, L=10.4mm , 48V 5A 240W
Central-Height(1CH) CH=6.6mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 16
PCB mount type: Flag-mount
Orientation: Right Angle
Mount position: Flag-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 2.1mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-16-FM2-S11-TYPE-C-2_0-16PIN-RECEPTACLE--FLAG-MOUNT-4-ROWS-DIP-WITH-BRACKET-CH6_6MM-L10_4MM.pdf
