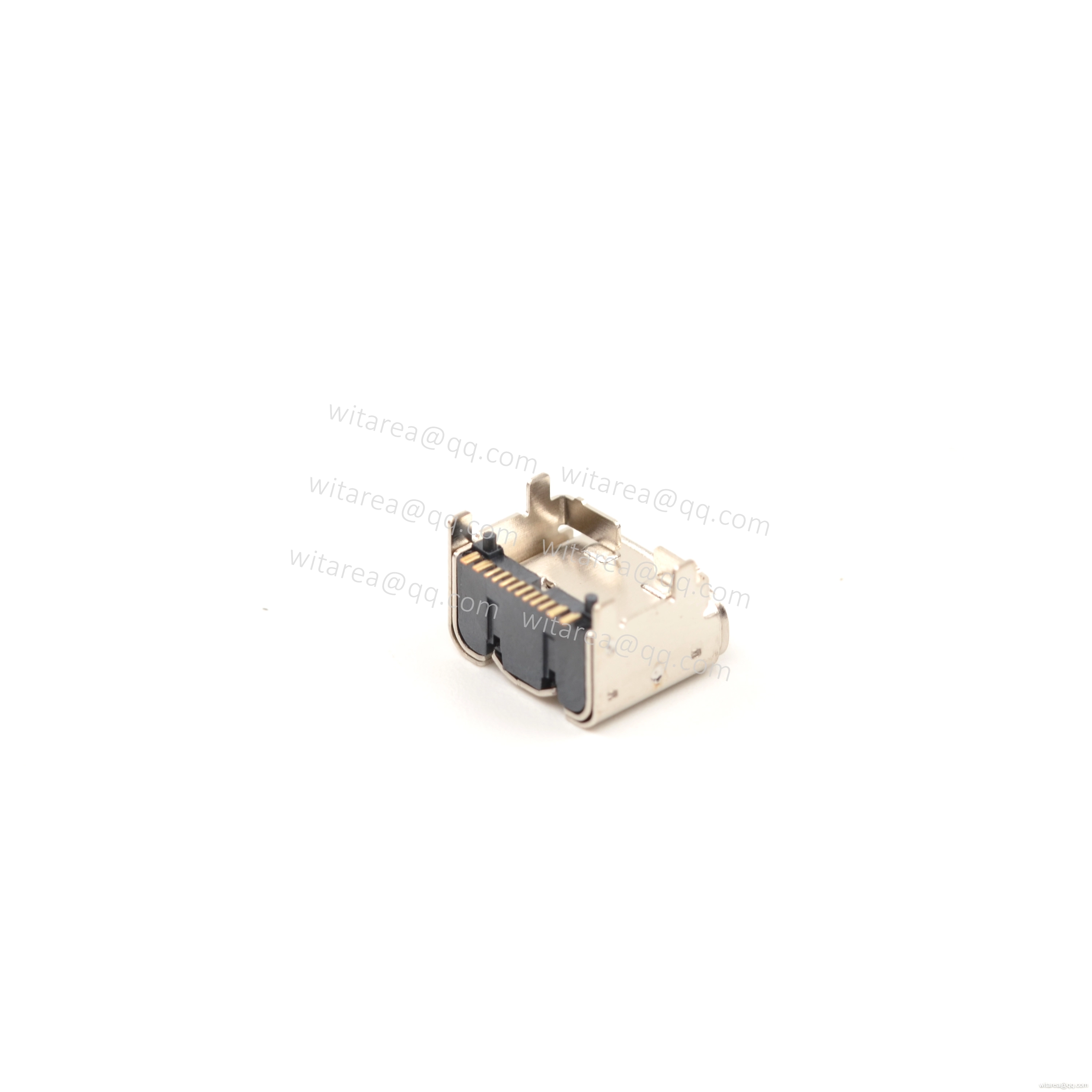

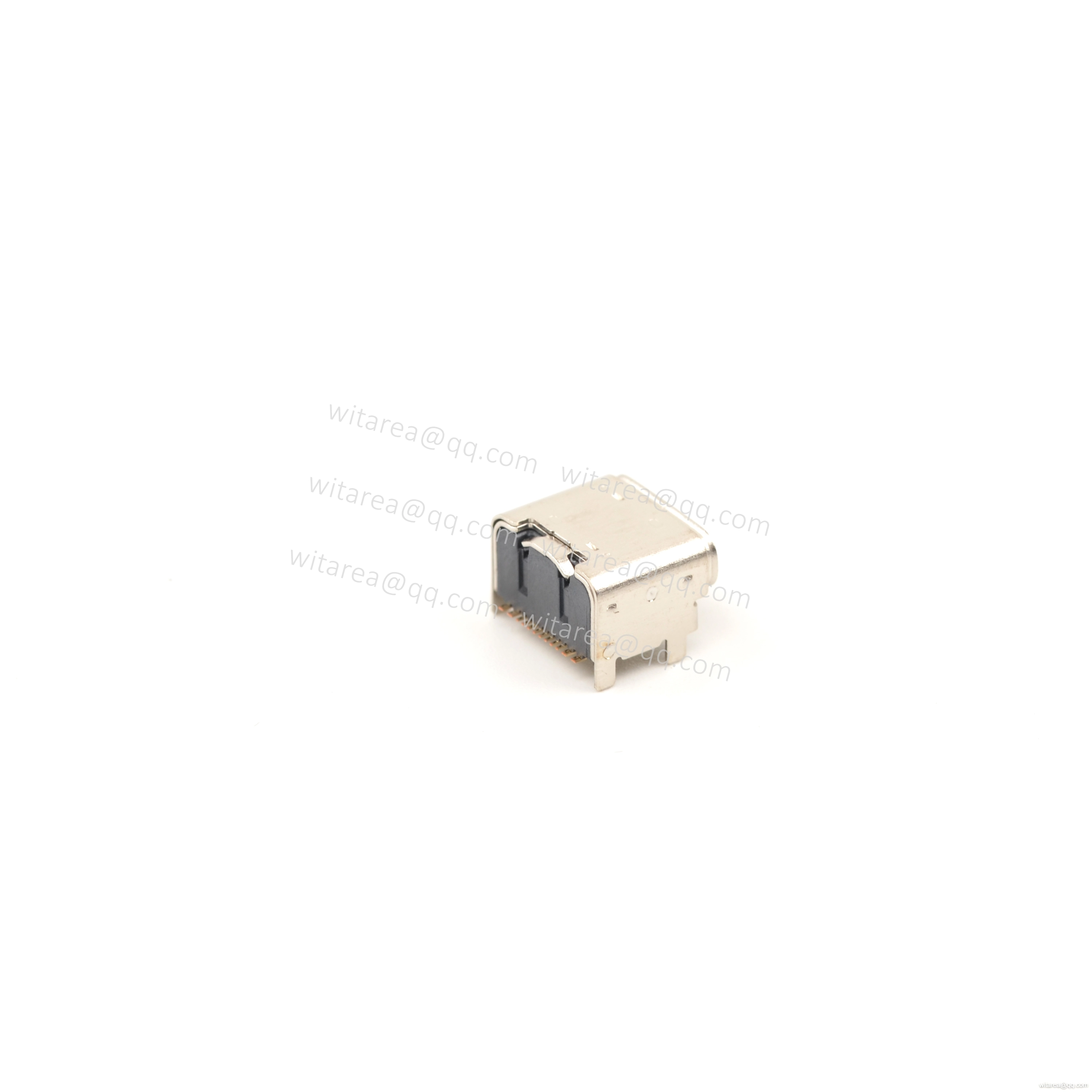

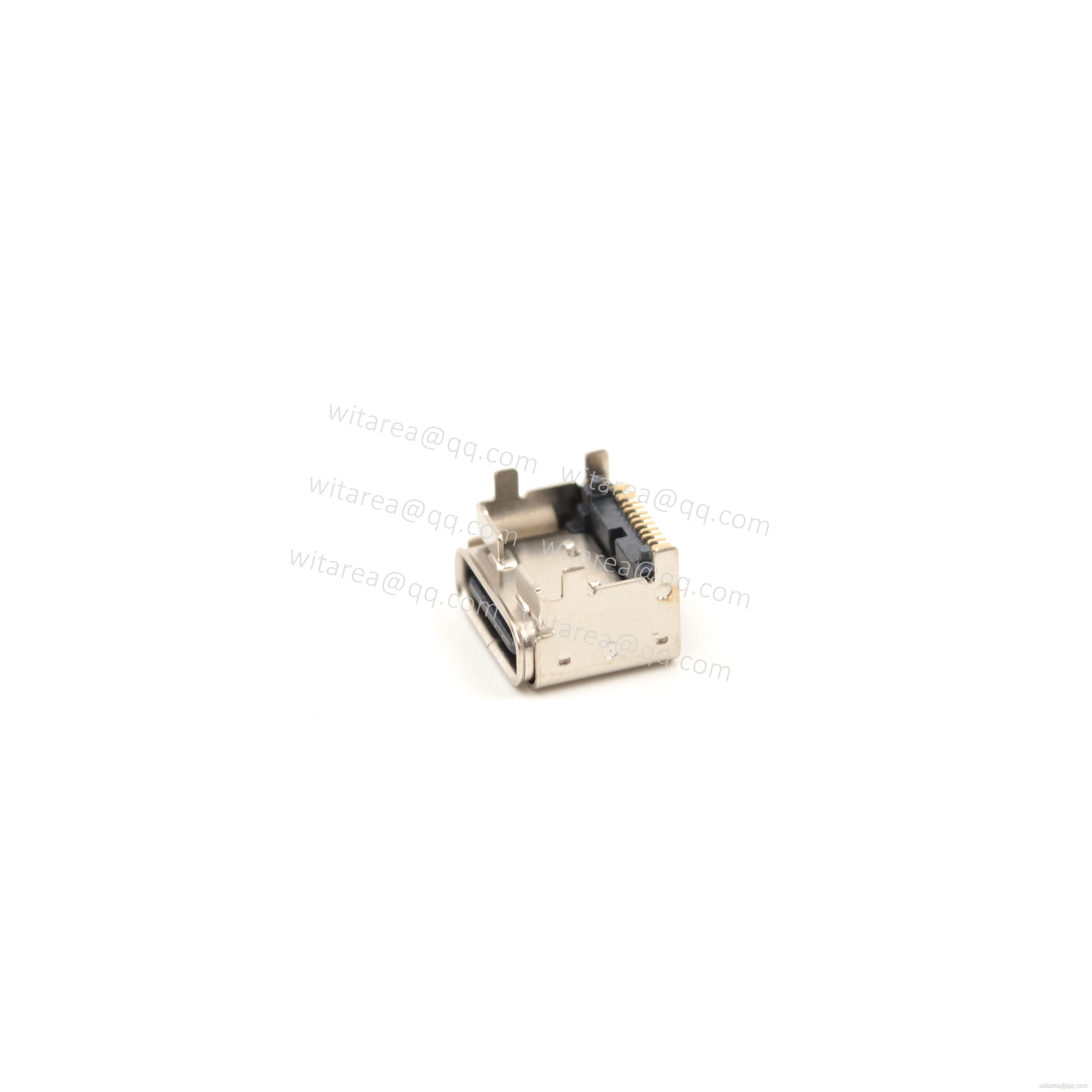

USB2.0 TYPE C 16P TOP-MOUNT SMT RECEPTACLE WITH BRACKET ,CH=3.5MM,L=8MM

Item.: 27.W0026-16-TM1-S11
Connector style: Type C
USB version: USB 2.0
Gender: Receptacle
PCB mount type: Top-mount
Mount position: Top-mount,DIP PEG
Shell stake: Through hole
Body Length: 8mm
CategoriesUSB 2.0 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type C 16p top-mount single-row SMT receptacle with bracket, CH=3.5mm, L=8mm , 48V 5A 240W

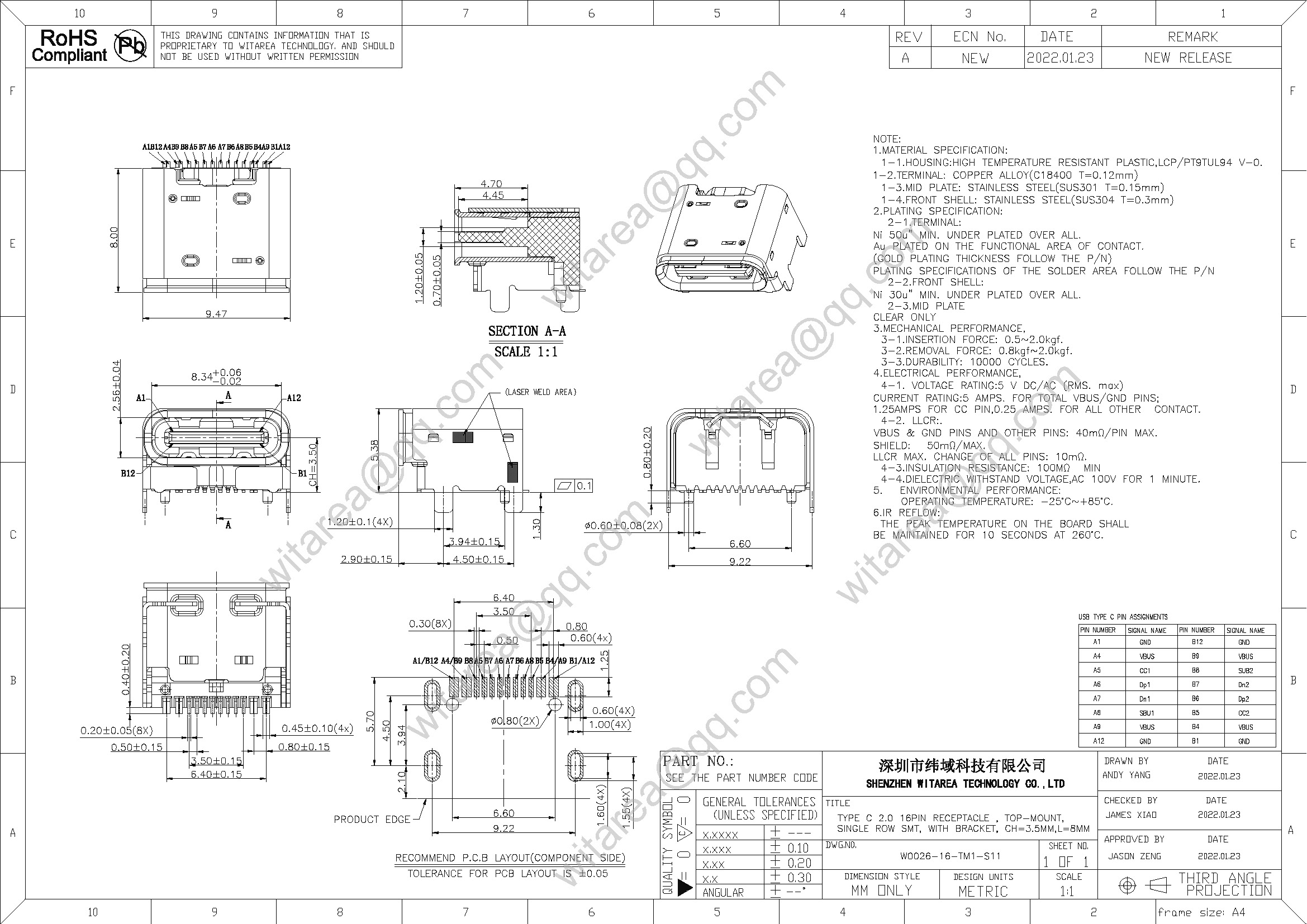

Drawing

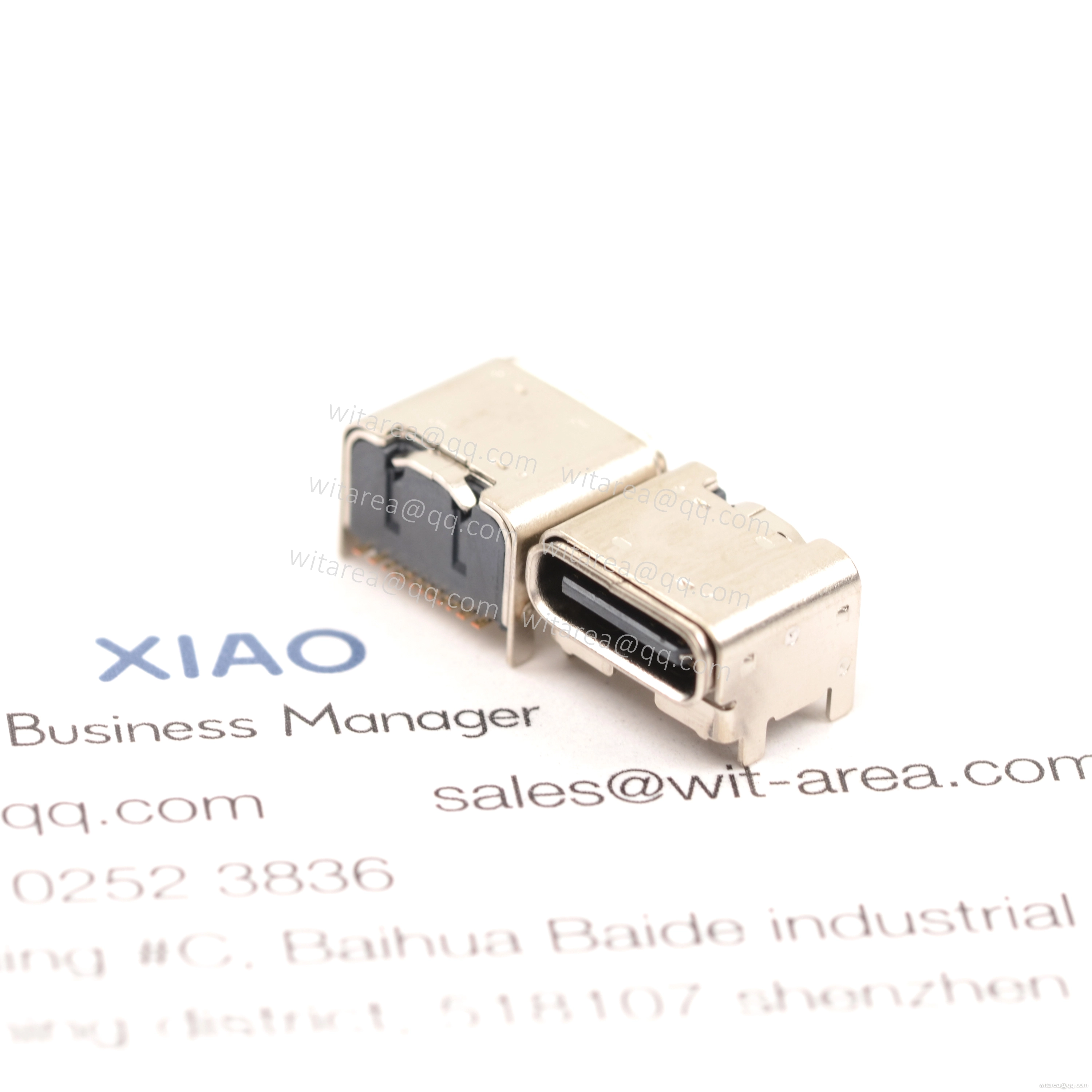

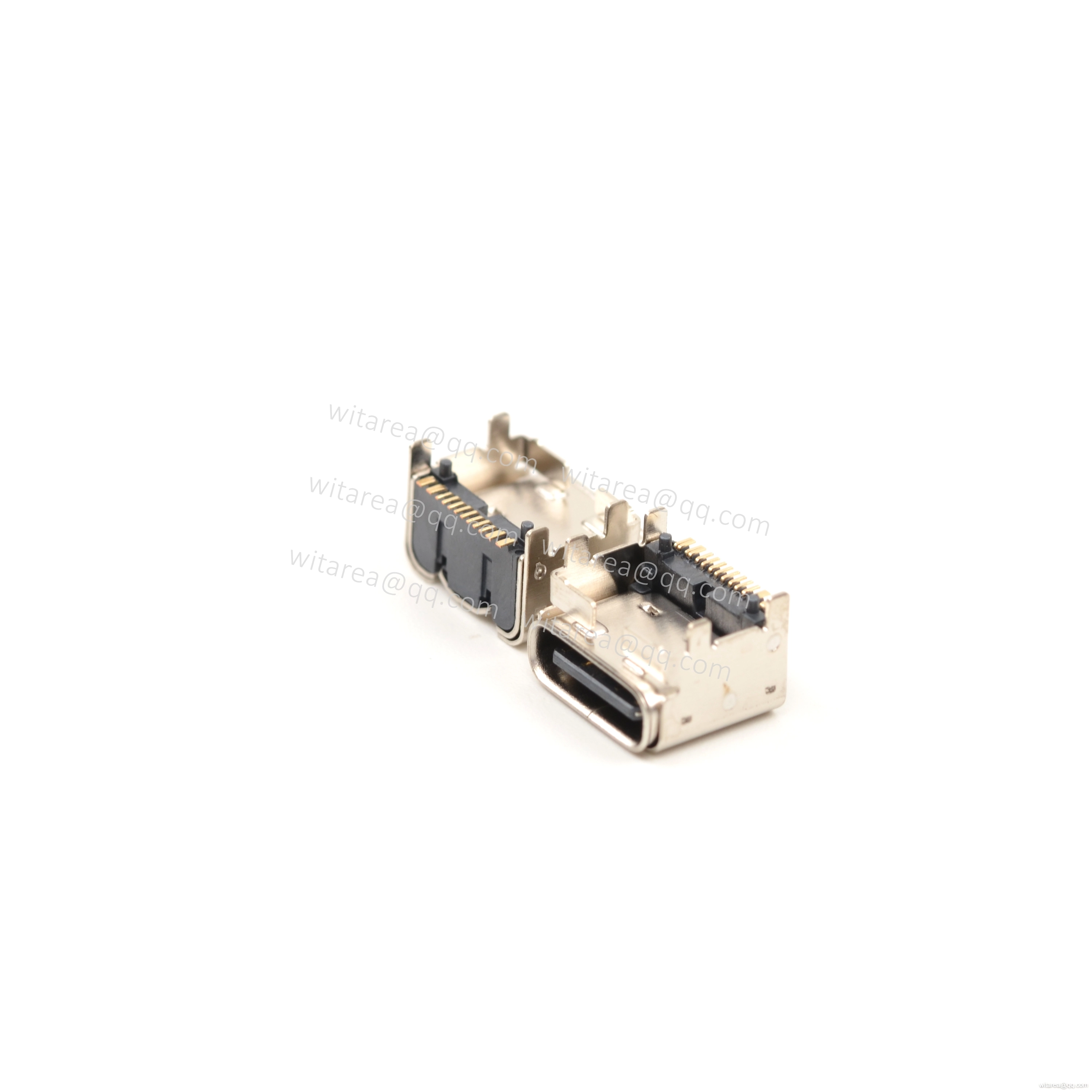

USB TYPE C Connector Sample board



Parameter

Part No.: 27.W0026-16-TM1-S11
Equivalent
Products: Usb2.0 type C 16p top-mount single-row SMT receptacle with bracket, CH=3.5mm, L=8mm , 48V 5A 240W
Central-Height(1CH) CH=3.5mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 16
PCB mount type: Top-mount
Orientation: Horizontal
Mount position: Top-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 1.3mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-16-TM1-S11-TYPE-C-2_0-16PIN-RECEPTACLE--TOP-MOUNT-SINGLE-ROW-SMT-WITH-BRACKET-CH3_5MML8MM.pdf

High-current Usb Type C Connectors
