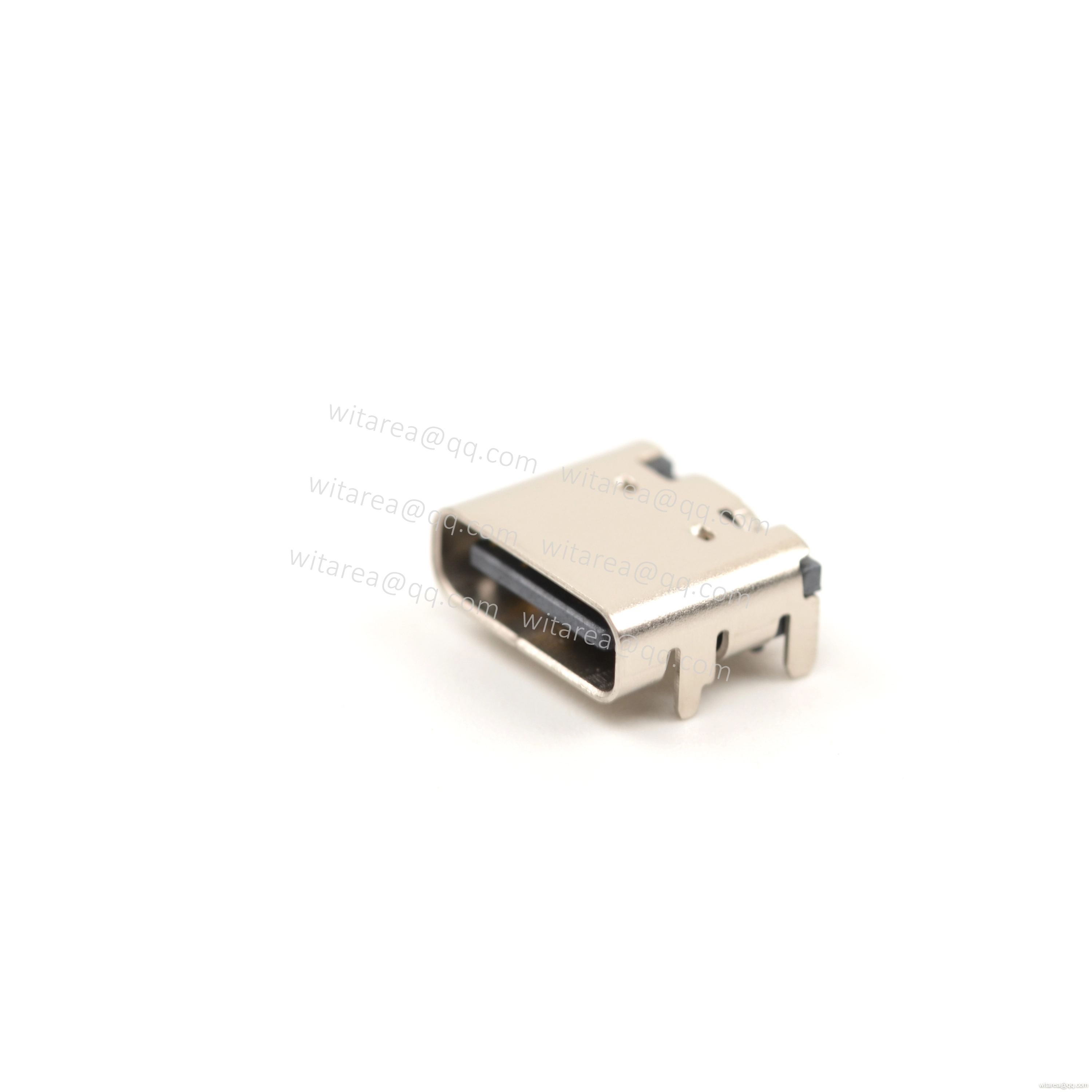

USB2.0 TYPE C 8P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.1MM,L=6.1MM
USB2.0 TYPE C 8P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.1MM,L=6.1MM
Home Products USB Connector USB 2.0 Connector

USB2.0 TYPE C 8P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.1MM,L=6.1MM

Item.: 8.W0026-8-VM1-S1
Connector style: Type C
USB version: USB 2.0
Gender: Receptacle
PCB mount type: Vertical-mount
Mount position: Vertical-mount,DIP PEG
Shell stake: Through hole
Body Length: 6.1mm
CategoriesUSB 2.0 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type C 8p vertical-mount SMT receptacle , H=6.1mm, L=6.1mm, , 48V 5A 240W

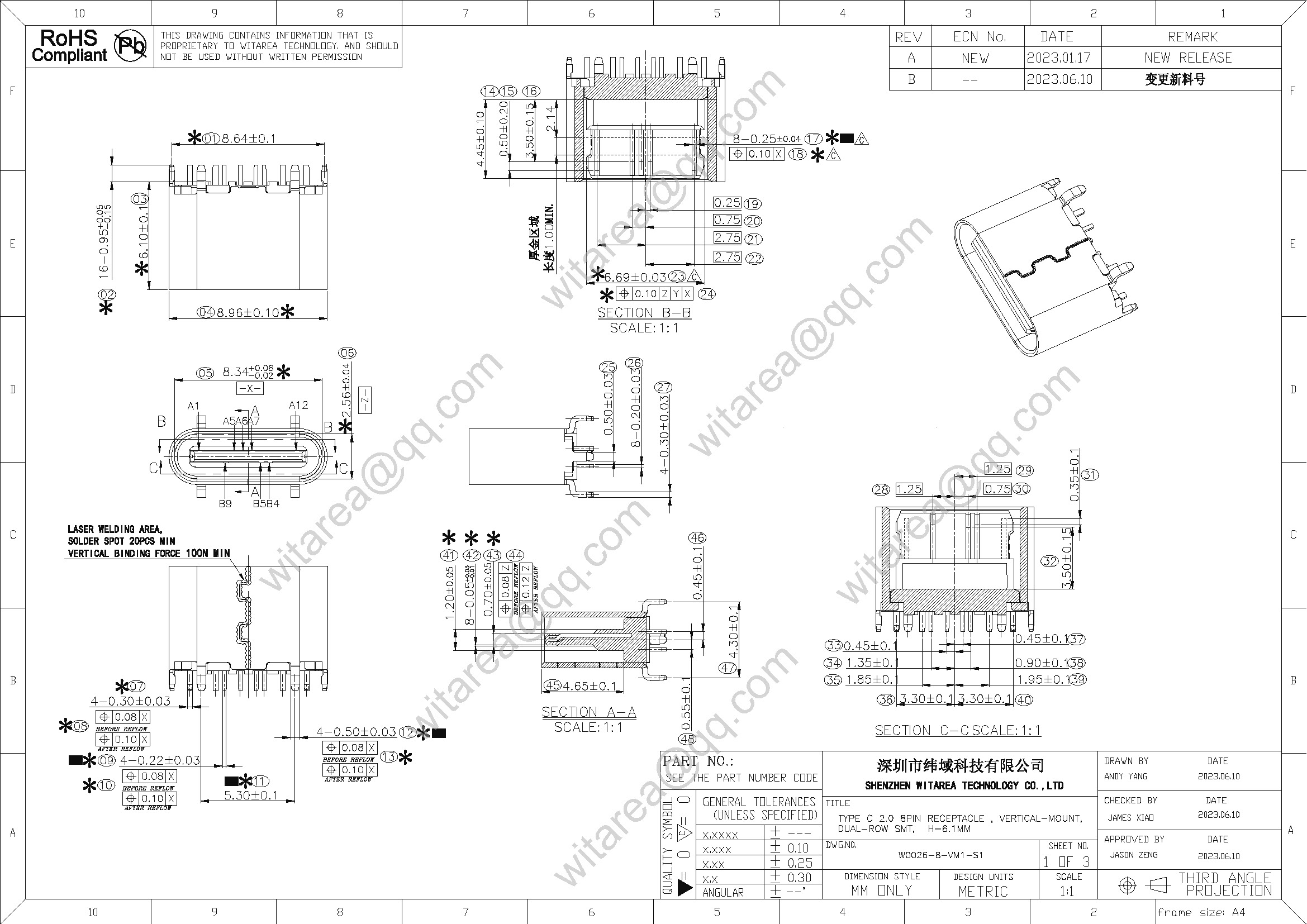

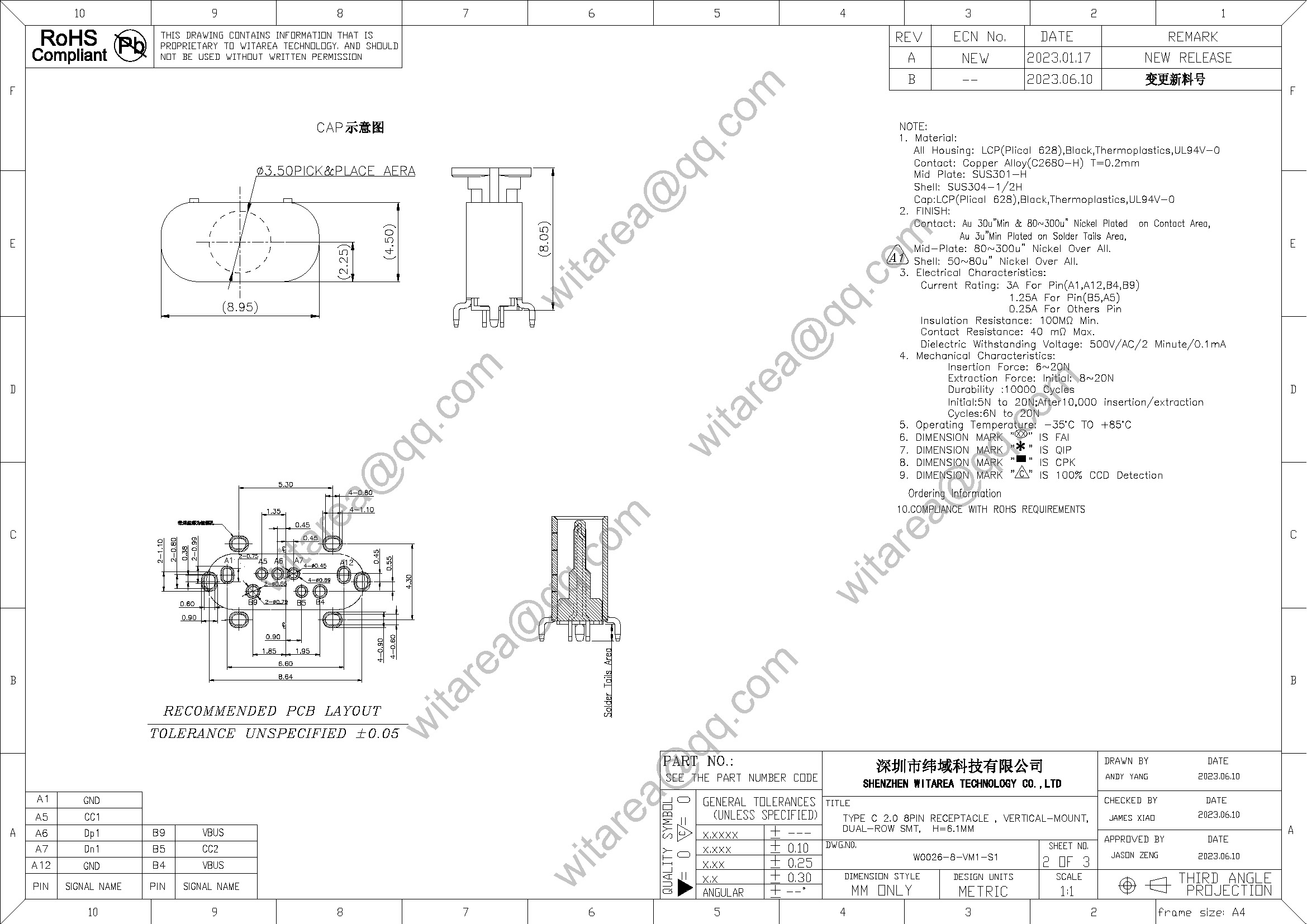

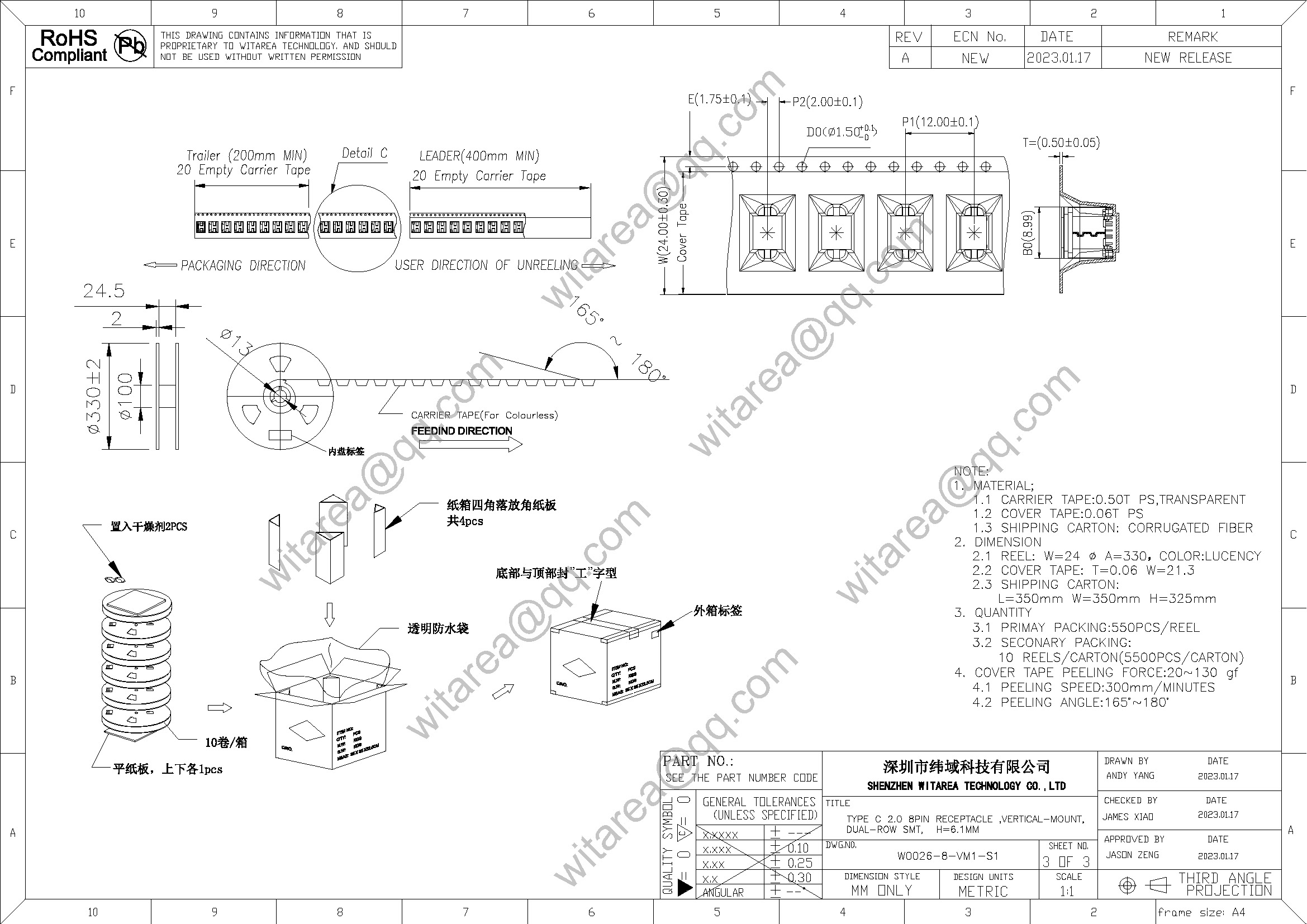

Drawing





USB TYPE C Connector Sample board



Parameter

Part No.: 8.W0026-8-VM1-S1
Equivalent
Products: Usb2.0 type C 8p vertical-mount SMT receptacle , H=6.1mm, L=6.1mm, , 48V 5A 240W
Central-Height(1CH) H=6.1mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 8
PCB mount type: Vertical-mount
Orientation: Vertical
Mount position: Vertical-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 0.95mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-8-VM1-S1-TYPE-C-2_0-8PIN-RECEPTACLE--VERTICAL-MOUNT-DUAL-ROW-SMT--H6_1MM.pdf

High-current Usb Type C Connectors
