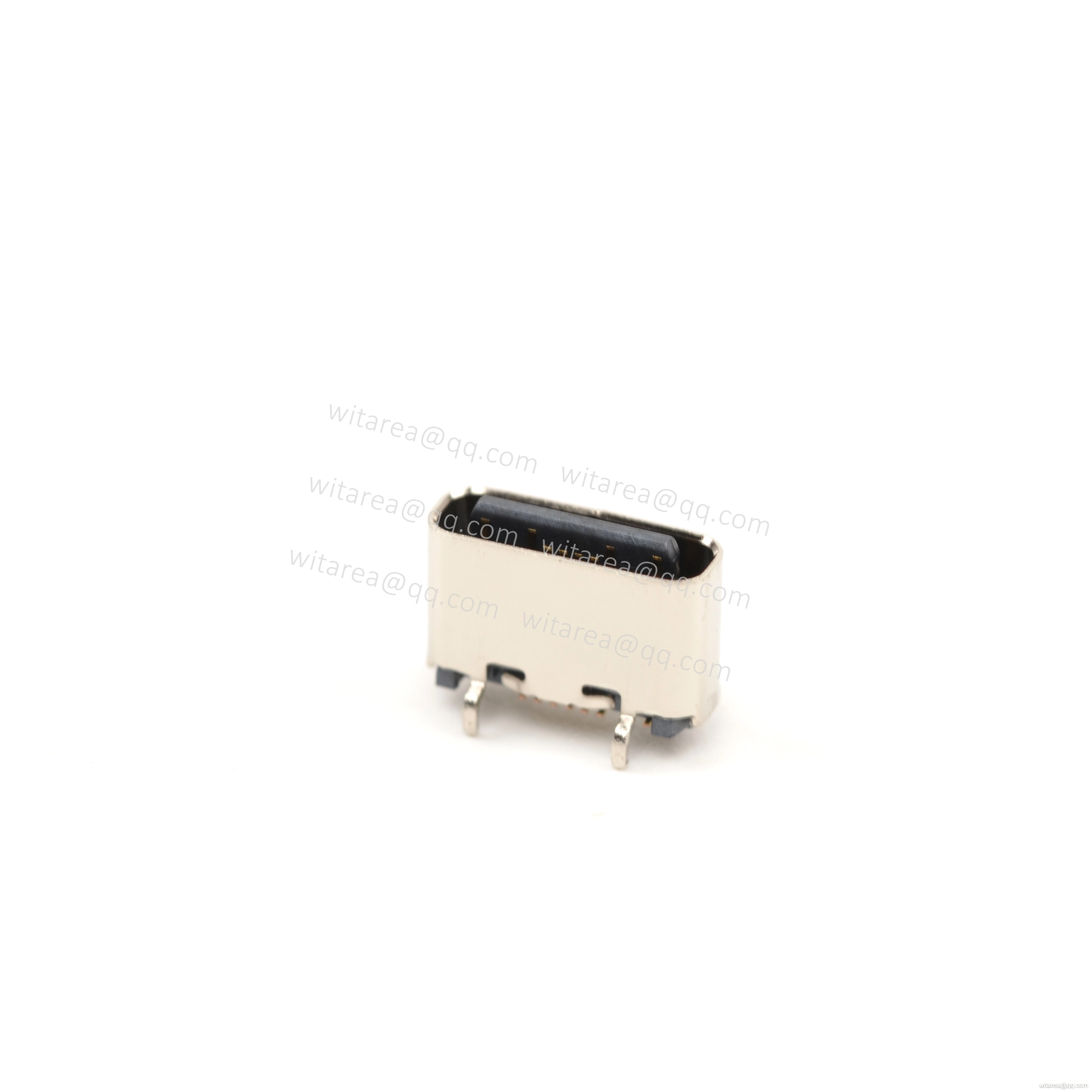

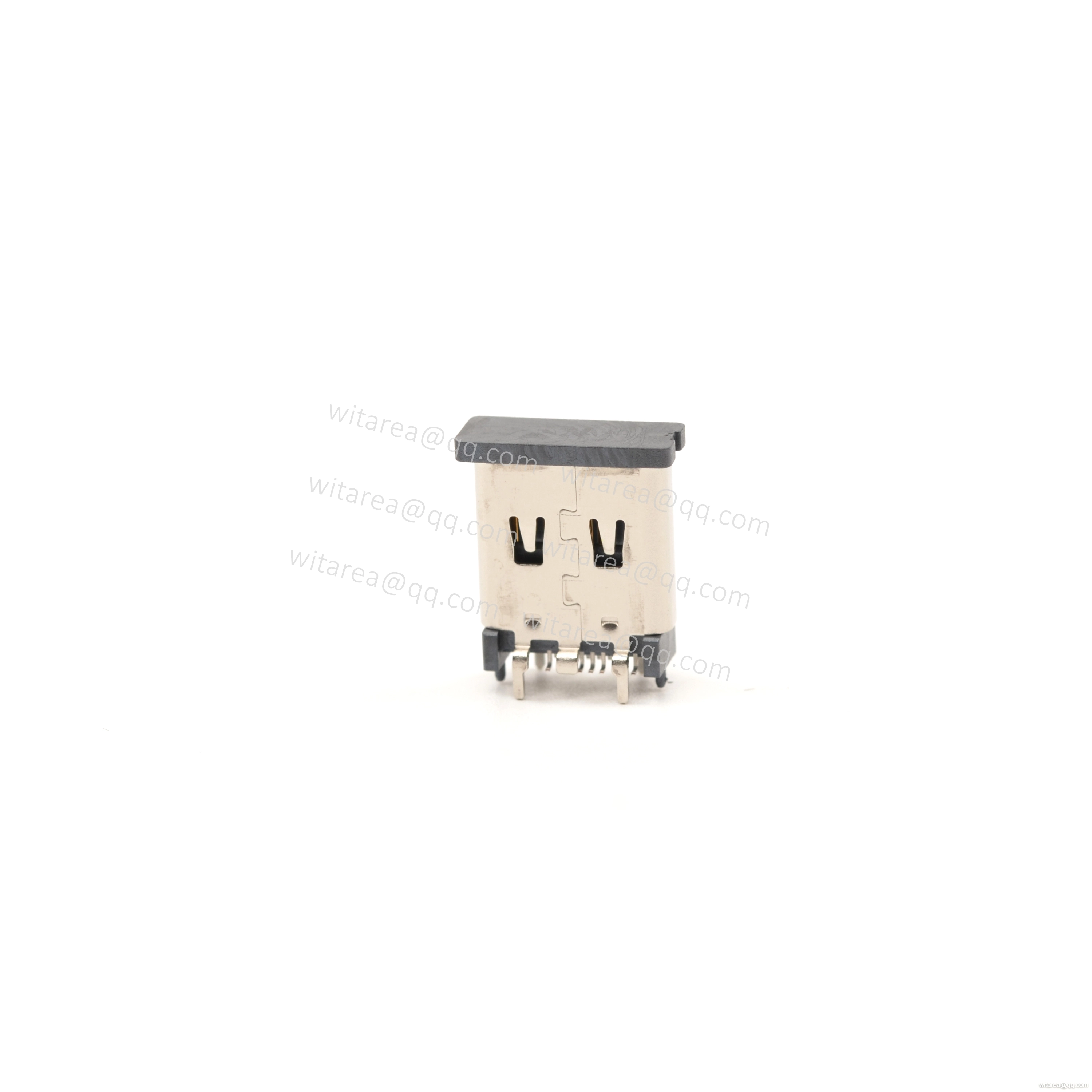

USB2.0 TYPE C 6P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.5MM,L=6.5MM
USB2.0 TYPE C 6P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.5MM,L=6.5MM
Home Products Connectors USB Connector USB 2.0 Connector

USB2.0 TYPE C 6P VERTICAL-MOUNT SMT RECEPTACLE ,H=6.5MM,L=6.5MM

Item.: 7.W0026-6-VM1-S7
Connector style: Type C
USB version: USB 2.0
Gender: Receptacle
PCB mount type: Vertical-mount
Mount position: Vertical-mount,DIP PEG
Shell stake: Through hole
Body Length: 6.5mm
CategoriesUSB 2.0 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

Usb2.0 type C 6p vertical-mount SMT receptacle , H=6.5mm, L=6.5mm, with stakes=2.3mm/1.7mm/0.7mm optional , 48V 5A 240W

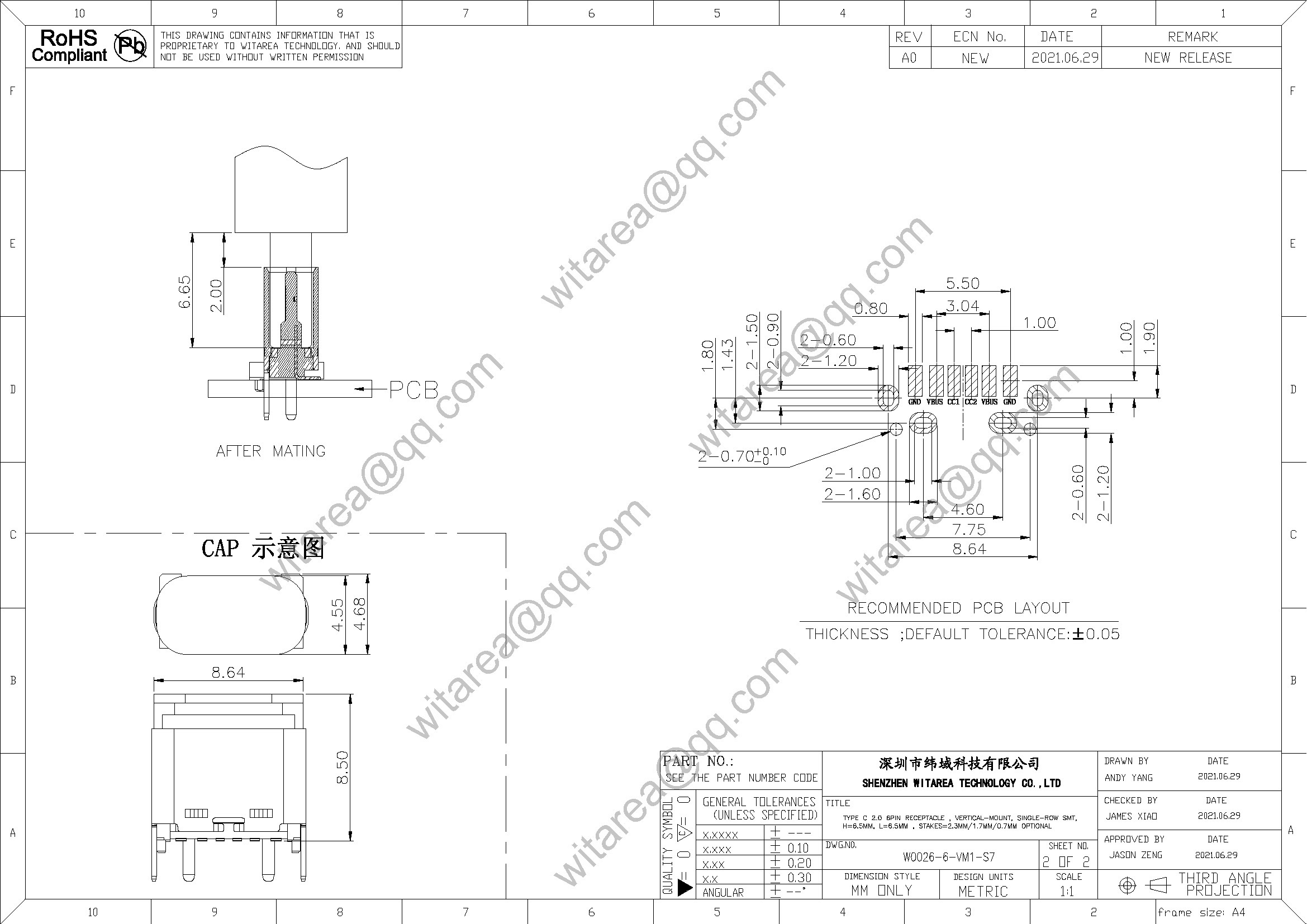

Drawing

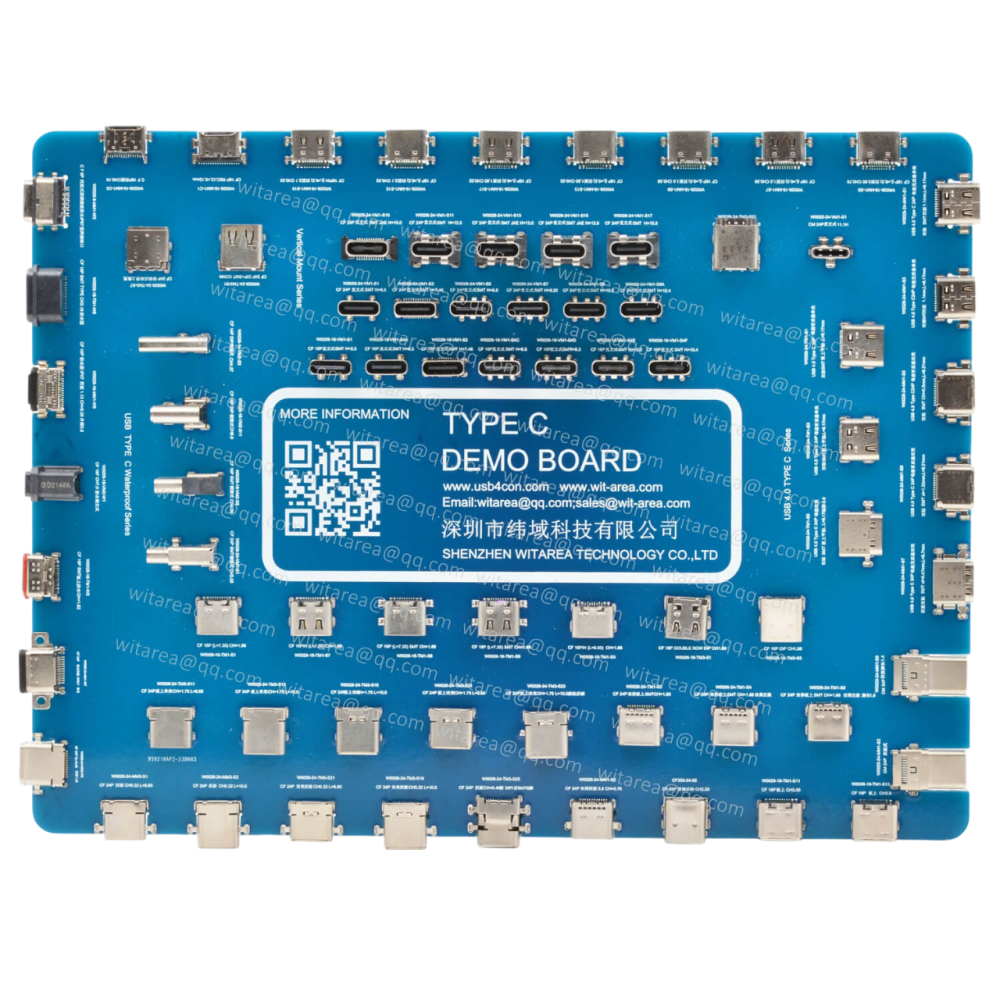

USB TYPE C Connector Sample board



Parameter

Part No.: 7.W0026-6-VM1-S7
Equivalent
Products: Usb2.0 type C 6p vertical-mount SMT receptacle , H=6.5mm, L=6.5mm, with stakes=2.3mm/1.7mm/0.7mm optional , 48V 5A 240W
Central-Height(1CH) H=6.5mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 6
PCB mount type: Vertical-mount
Orientation: Vertical
Mount position: Vertical-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 2.3mm/1.7mm/0.7mm optional
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-6-VM1-S7-TYPE-C-2_0-6PIN-RECEPTACLE--VERTICAL-MOUNT-SINGLE-ROW-SMT-H6_5MM-L6_5MM--STAKES2_3MM1_7MM0_7MM-OPTIONAL.pdf
