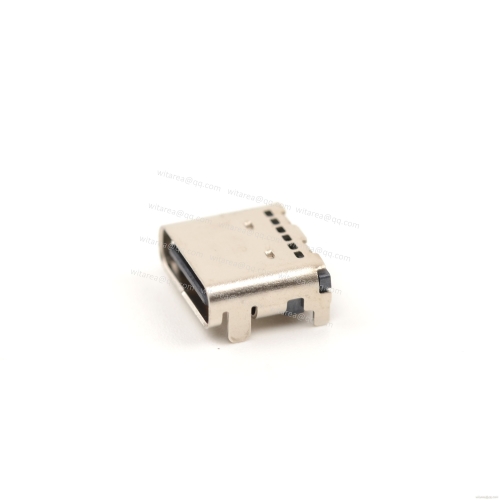

USB3.1 TYPE C 24P TOP MOUNT,DIP+SMT receptacle,CH=3.31mm,L=9.87mm
USB3.1 TYPE C 24P TOP MOUNT,DIP+SMT receptacle,CH=3.31mm,L=9.87mm
Home Products USB Connector USB C Connector

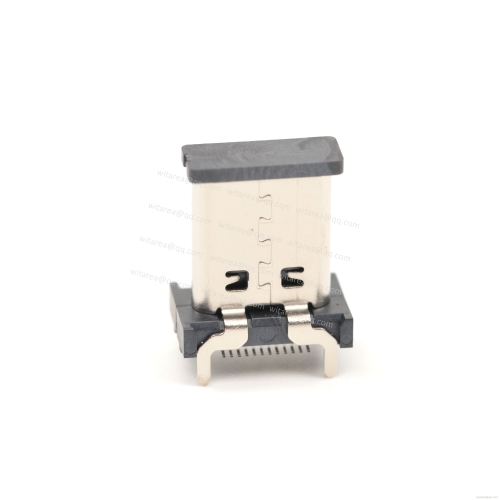

USB3.1 TYPE C 24P TOP MOUNT,DIP+SMT receptacle,CH=3.31mm,L=9.87mm

Item.: 45.W0026-24-TM3-S5
Connector style: Type C
USB version: USB3.0/3.1
Gender: receptacle
PCB mount type: Top-mount
Mount position: Top-mount,DIP PEG
Shell stake: Through hole
Body Length : 9.87mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

USB3.1/3.2 TYPE C 24P TOP MOUNT,DIP+SMT receptacle,CH=3.31mm,L=9.87mm, stakes=1.8mm,48V 5A 240W

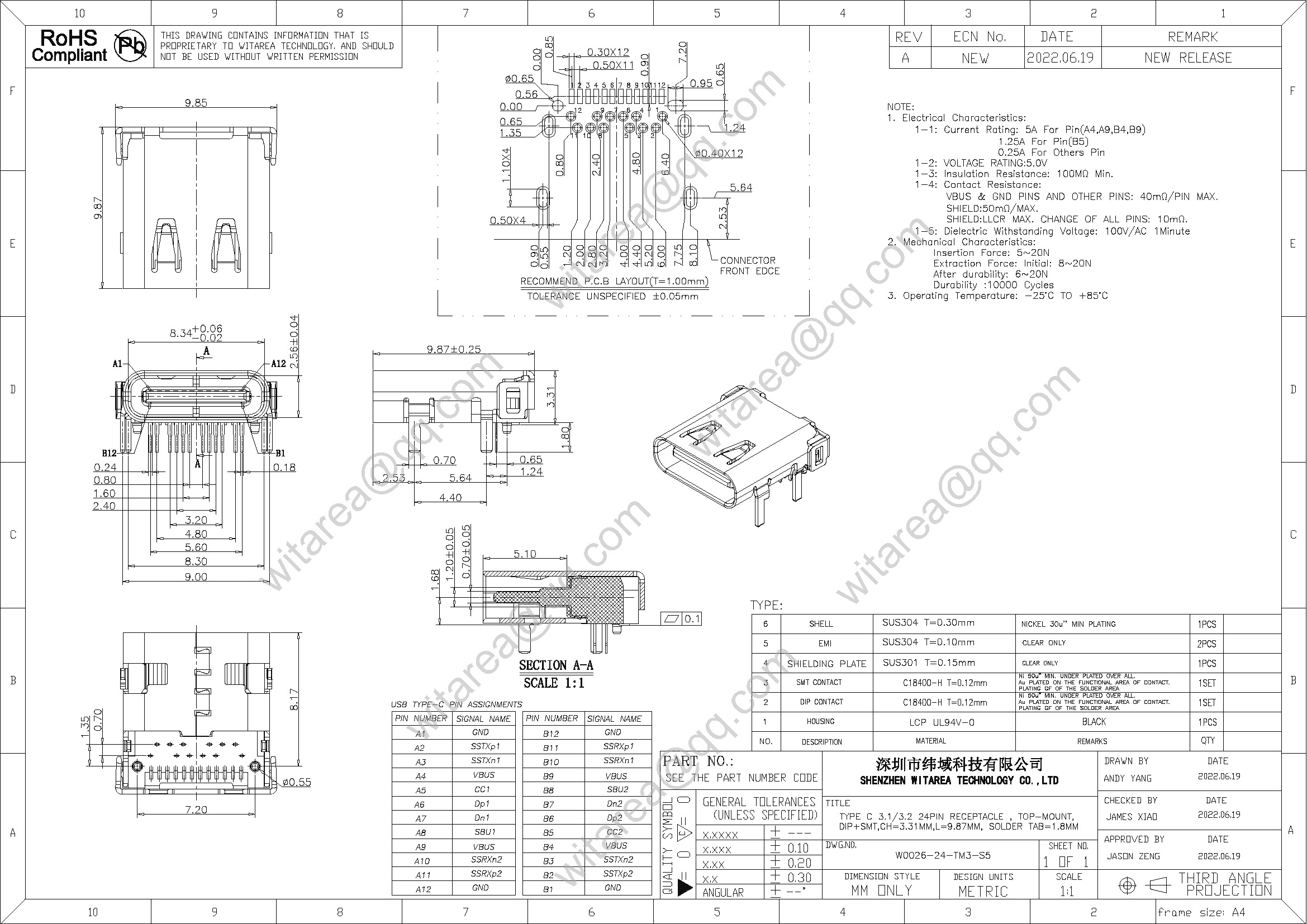

Drawing

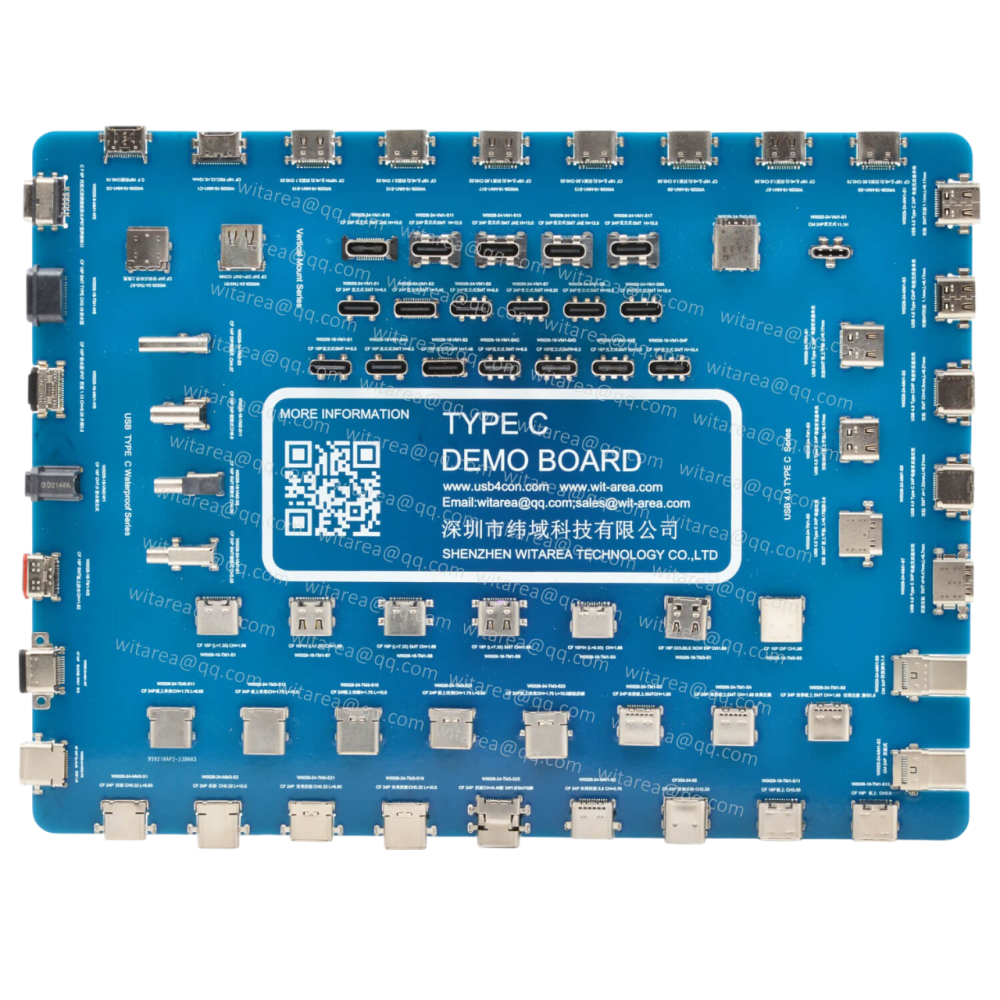

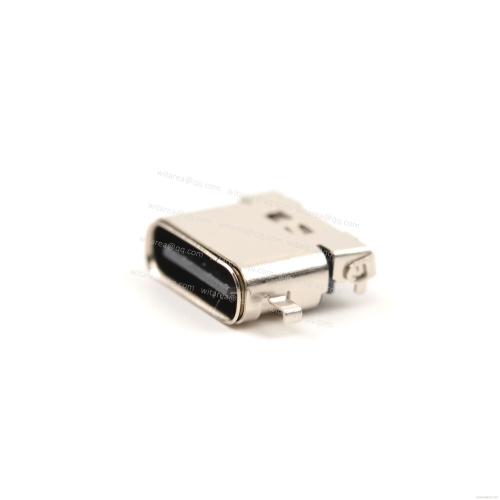

USB TYPE C Connector Sample board



Parameter

Part No.: 45.W0026-24-TM3-S5
Equivalent
Products: TYPE C 3.1/3.2 24PIN RECEPTACLE , TOP-MOUNT,DIP+SMT,CH=3.31MM,L=9.87MM, STAKES=1.8MM
Central-Height(1CH) CH=3.31mm
Product Family:  USB TYPE C Connector
Connector style: Type C
Number of contacts: 24
PCB mount type: Top-mount
Orientation: Horizontal
Mount position: Mid-mount,DIP PEG
Current Rating:  5A
Shell stake: Through hole
Shell stake lengths: 1.8mm
Locating Peg: With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-24-TM3-S5-TYPE-C-3_13_2-24PIN-RECEPTACLE--TOP-MOUNTDIPSMTCH3_31MML9_87MM-SOLDER-TAB1_8MM.pdf
