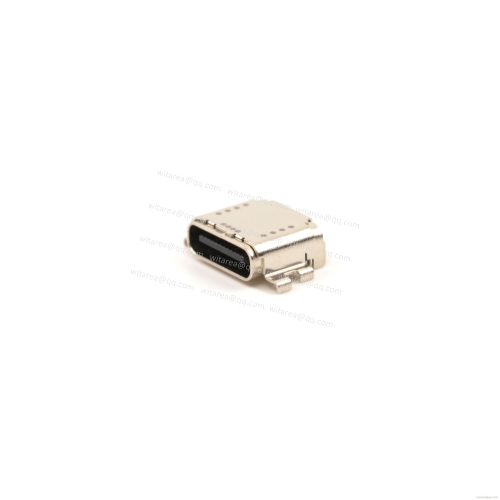

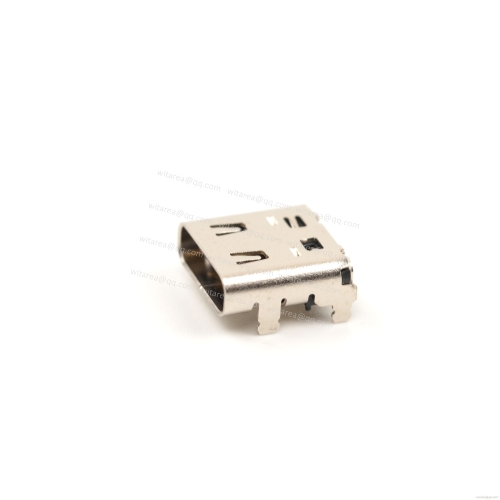

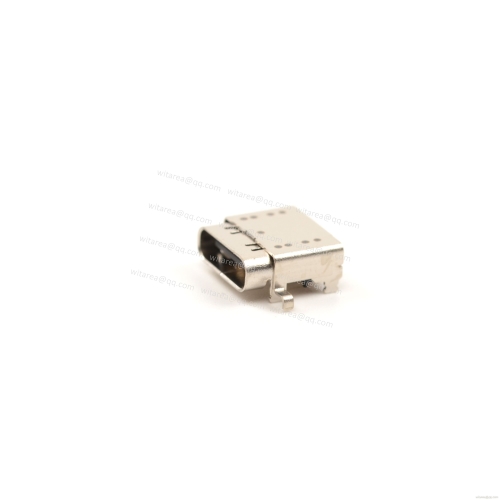

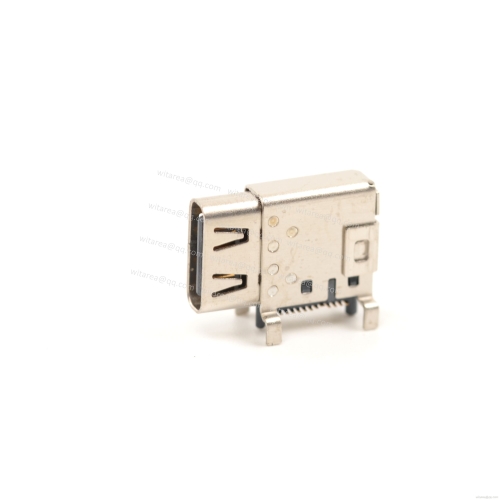

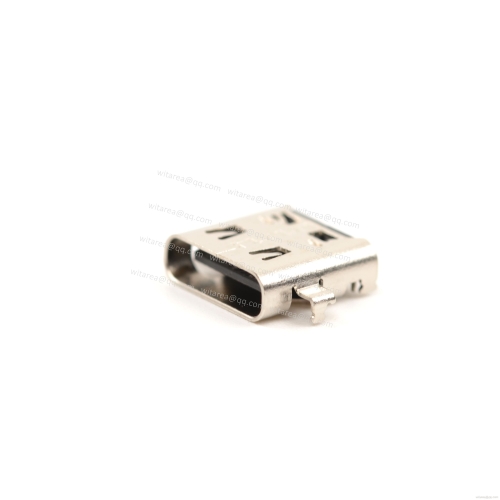

USB4 TYPE C 24P Receptacle Mid-mount,off-set SMT,CH=0.5mm L= 8.21mm
USB4 TYPE C 24P Receptacle Mid-mount,off-set SMT,CH=0.5mm L= 8.21mm
Home Products USB Connector USB4 Connector

USB4 TYPE C 24P Receptacle Mid-mount,off-set SMT,CH=0.5mm L= 8.21mm

Item.:90.W0028-24-MM1-S5
Connector style: USB4 U4 Type C
USB version: USB4/U4 20/40/80/120/Gbit/s
Gender: receptacle
PCB mount type: mid-mount
Mount position: RA,DIP PEG
Shell stake: Through hole
Body Length :8.21mm
CategoriesUSB4 Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

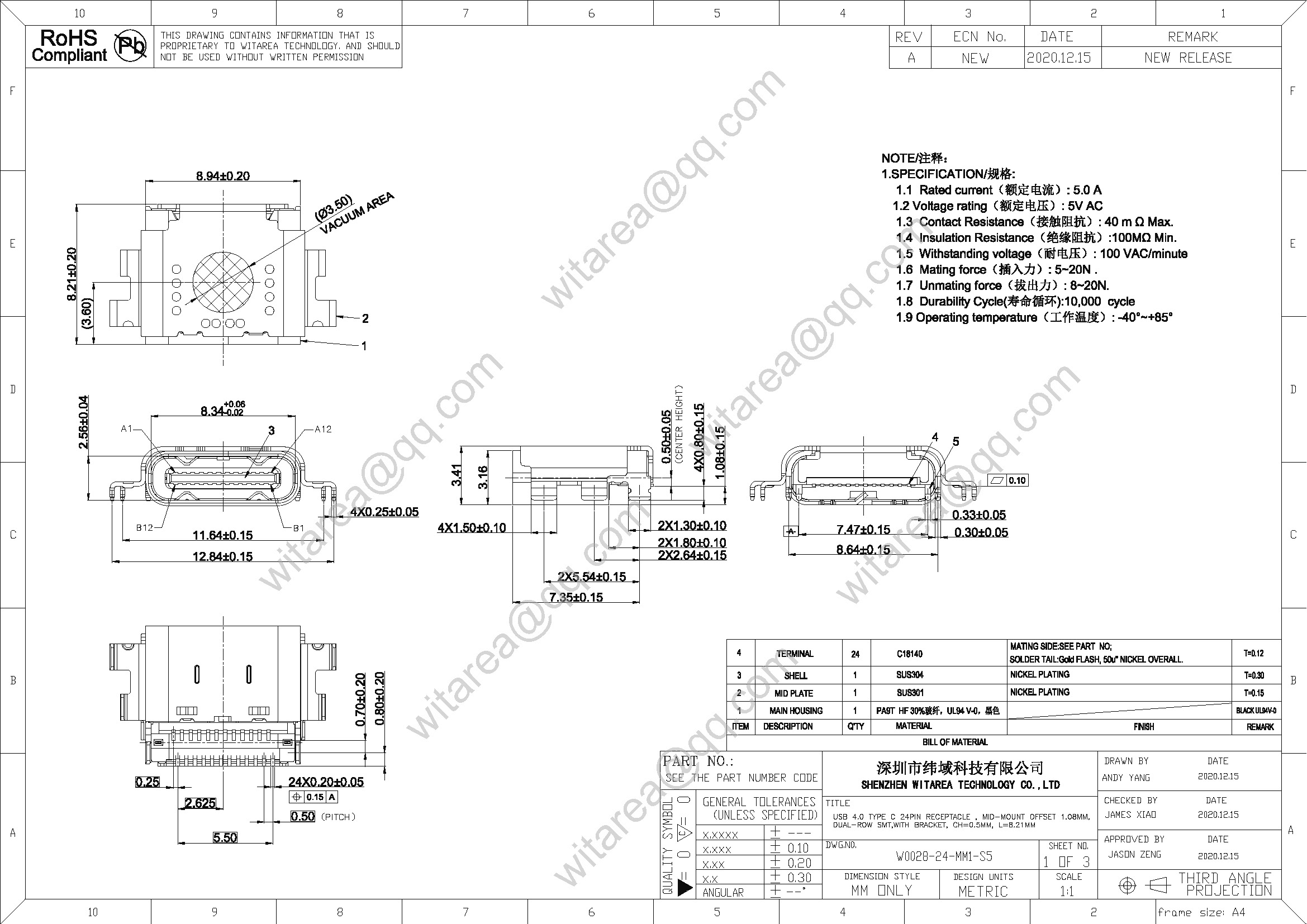

Drawing



USB TYPE C Connector Sample board



Parameter

Part No.: 90.W0028-24-MM1-S5
Equivalent
Products: USB 4.0 TYPE C 24PIN RECEPTACLE , MID-MOUNT OFFSET 1.08MM, DUAL-ROW SMT,WITH BRACKET, CH=0.5MM, L=8.21MM
Central-Height(1CH)  CH=0.5MM
Product Family:  USB4/U4 TYPE C  Connector
Connector style:  Type C
Number of contacts: 24
PCB mount type: mid-mout,Surface mount
Orientation: Horizontal
Mount position: RA,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  1.08mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.
