| Part No.: |

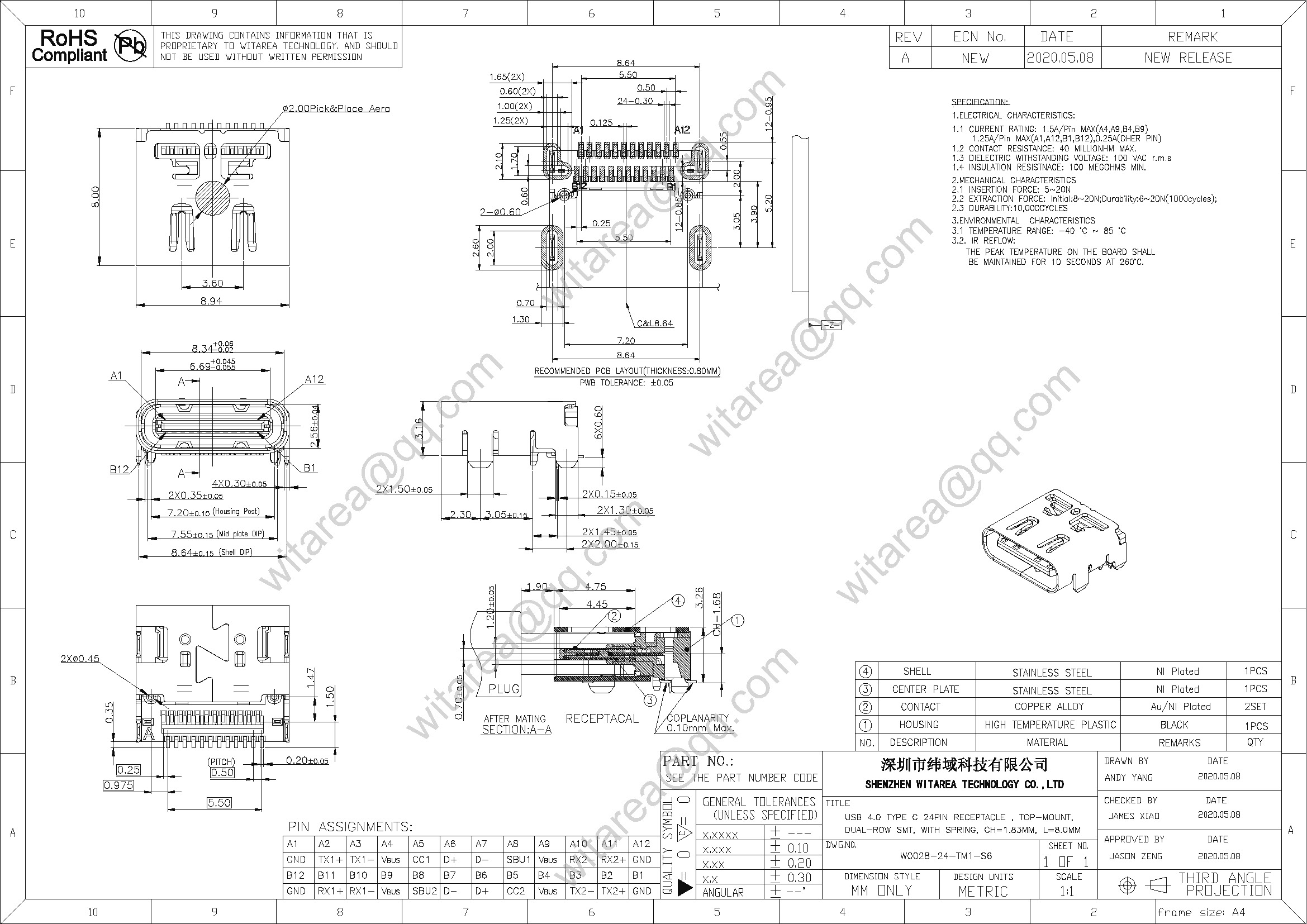

79.W0028-24-TM1-S6 |
|
Equivalent |
JAE |
| Products: | USB4.0 TYPE C 24PIN RECEPTACLE Connector , TOP-MOUNT, DUAL-ROW SMT, WITH SPRING, CH=1.68MM, L=8.0MM |
| Central-Height(1CH) | CH=1.68 MM |
| Product Family: | USB4/U4 TYPE C Connector |
| Connector style: | Type C |
| Number of contacts: | 24 |
| PCB mount type: | Top mount,Surface mount |
| Orientation: | Horizontal |
| Mount position: | RA,DIP PEG |
| Current Rating: | 5A |
| Shell stake: | Through hole |
| Shell stake lengths: | 0.6mm |
| Locating Peg: | With locating peg |
| Application: | USB C device |
| Product Status: | Active |
| Certification: | Rohs(1EN50581),REACH |
| Mating Cycles: | 10000 |
Mobile devices:smartphones, tablets and ect.
Smart devices:Remote Monitoring,and ect.
Gaming consoles and ect.
Computers:,laptops and desktop computers and ect.
Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.
Audio equipment: headphones, speakers, and other audio equipment and ect.
Video equipment and ect. Automotive industry and ect.
Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.
English
中文
EN-W0028-24-TM1-S6-USB-4_0-TYPE-C-24PIN-RECEPTACLE--TOP-MOUNT-DUAL-ROW-SMT-WITH-SPRING-CH1_83MM-L8_0MM_1.pdf
