SMT/SMD TYPE C 24Pin male Plug Middle Mount,L=15.5MM

Item.: W0025-24-MM1-S2
Connector style: Type C
USB version: USB3.1/USB4
Gender: Plug
PCB mount type: Middle mount
Mount position: Middle mount,DIP PEG
Shell stake: Through hole
Body Length :15.5mm
CategoriesUSB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

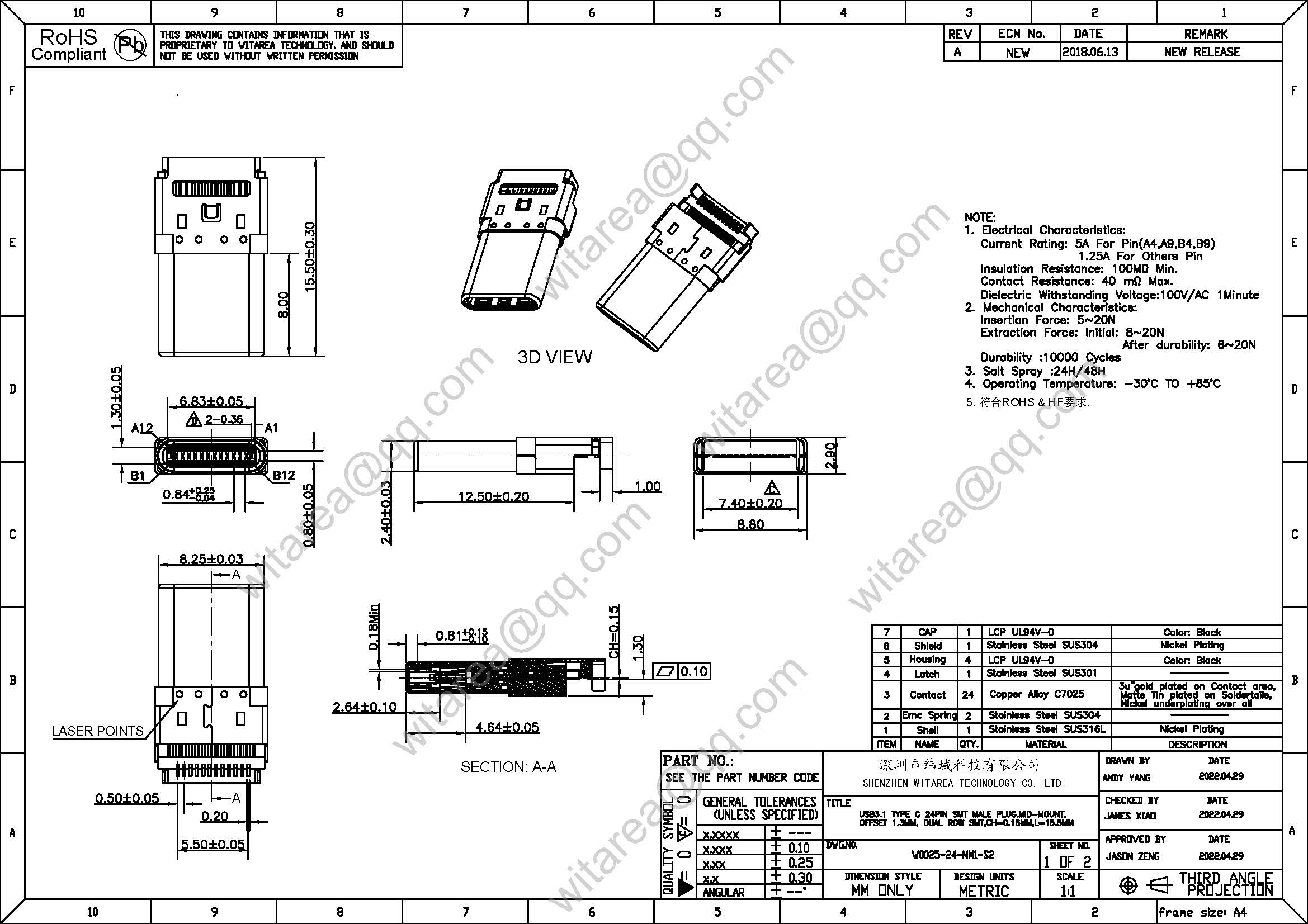

DRAWING


USB TYPE C Connector Sample board

Parameter

Part No.: W0025-24-MM1-S2
Products: SMT/SMD TYPE C 24PIN Plug Middle Mount,L=15.5MM
Central-Height(1CH)  0.15MM
Product Family:  TYPE C USB 3.1  Connector
Connector style:  Type C
Number of contacts:  24
PCB mount type:  Surface mount
Orientation:  Horizontal
Mount position: Middle mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  1.25mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0025-24-MM1-S2-USB-TYPE-C-PLUG-L15_5MM.pdf
