Home Products USB Connector Waterproof USB C Connector

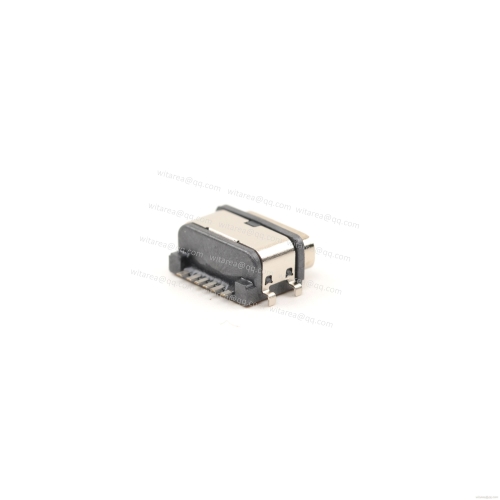

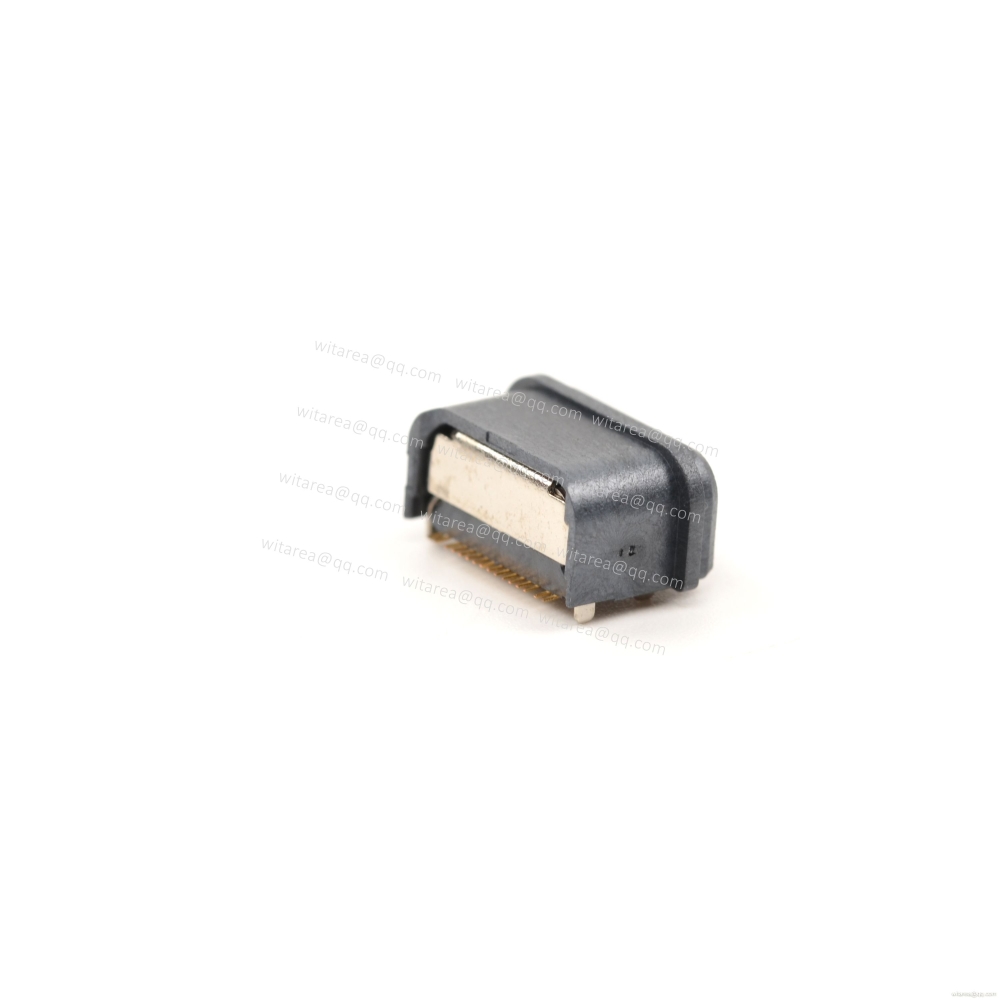

USB2.0 TYPE C 16P SMT waterproof receptacle CH=3.18mm,L=7.9mm

Item.: 110.W0026-16-TM1-W5
Connector style: Type C
USB version: USB2.0
Gender: receptacle
PCB mount type: Top-mount
Mount position: Top-mount,DIP PEG
Shell stake: Through hole
Body Length : 7.9mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

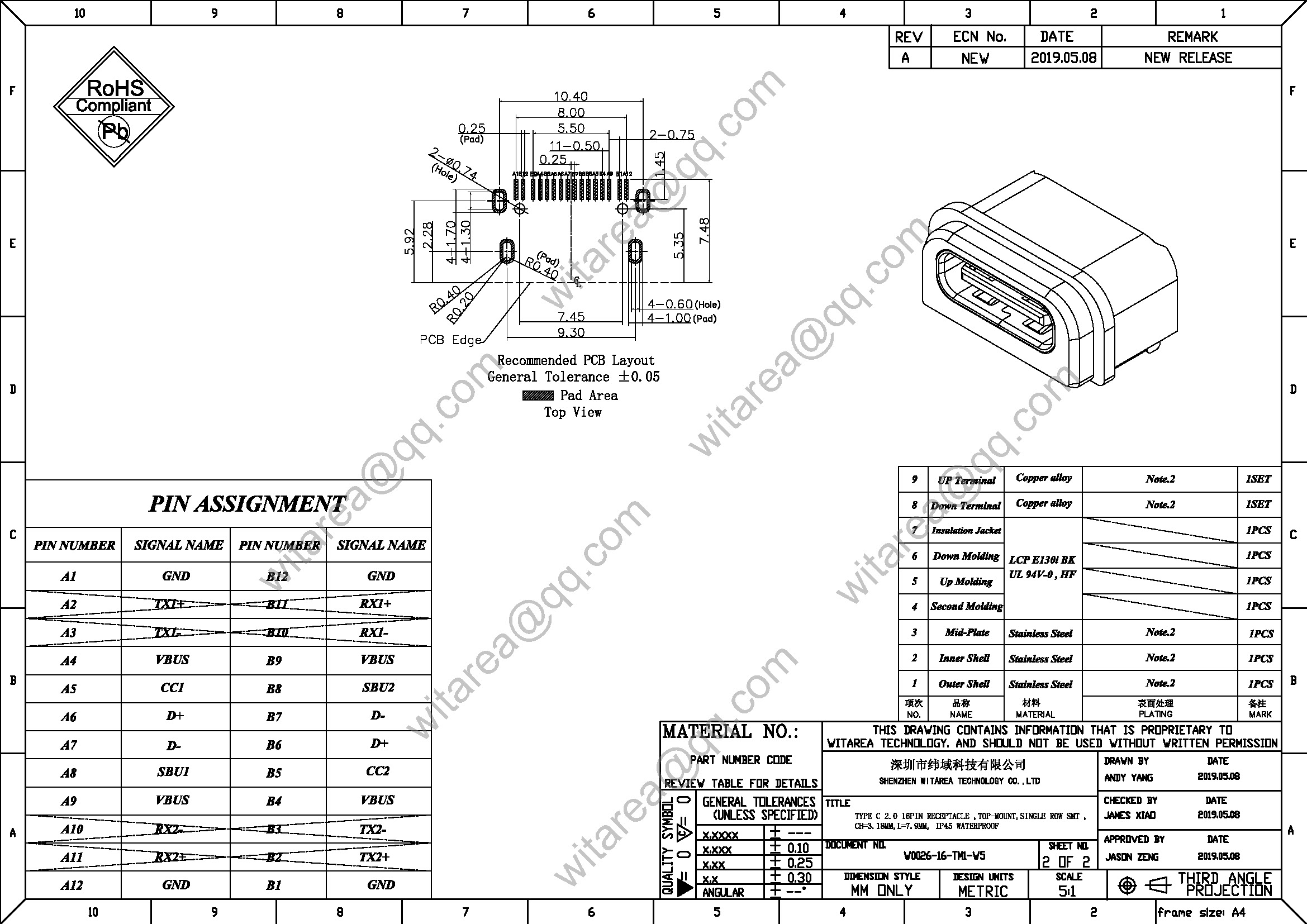

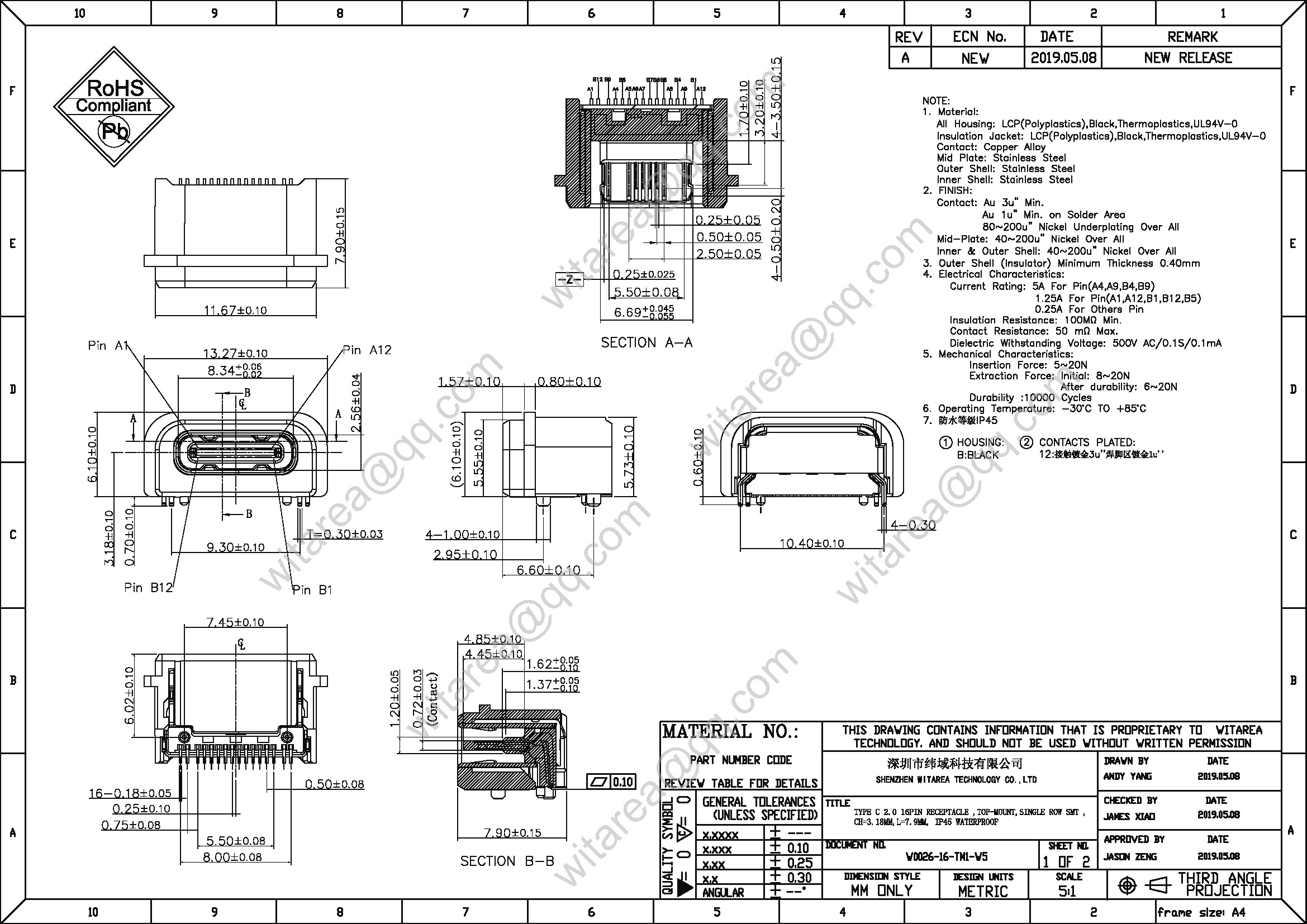

Drawing

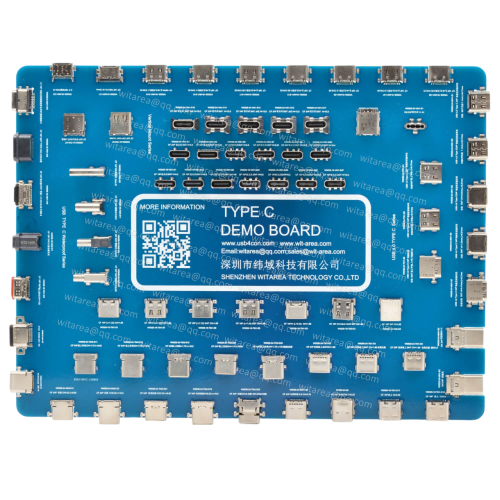

USB TYPE C Connector Sample board



Parameter

Part No.: 110.W0026-16-TM1-W5
Equivalent
Products: TYPE C 2.0 16PIN RECEPTACLE ,TOP-MOUNT,SINGLE ROW SMT , CH=3.18MM,L=7.9MM, IP45 WATERPROOF
Central-Height(1CH)  CH=3.18mm
Product Family:  USB TYPE C Connector
Connector style:  Type C
Number of contacts: 16
PCB mount type: Top-mount
Orientation: Horizontal
Mount position: Top-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths: 0.6mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-16-TM1-W5-TYPE-C-2_0-16PIN-RECEPTACLE-TOP-MOUNTSINGLE-ROW-SMT--CH3_18MML7_9MM-IP45-WATERPROOF.pdf

Usb C Waterproof 16pin Receptacle Socket
