USB2.0 TYPE C 8P SMT waterproof receptacle CH=1.55mm,L=6.35mm
USB2.0 TYPE C 8P SMT waterproof receptacle CH=1.55mm,L=6.35mm
Home Products USB Connector Waterproof USB C Connector

USB2.0 TYPE C 8P SMT waterproof receptacle CH=1.55mm,L=6.35mm

Item.: 103.W0026-8-TM1-W1
Connector style: Type C
USB version: USB2.0
Gender: receptacle
PCB mount type: Top-mount
Mount position: Top-mount,DIP PEG
Shell stake: Through hole
Body Length : 6.35mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

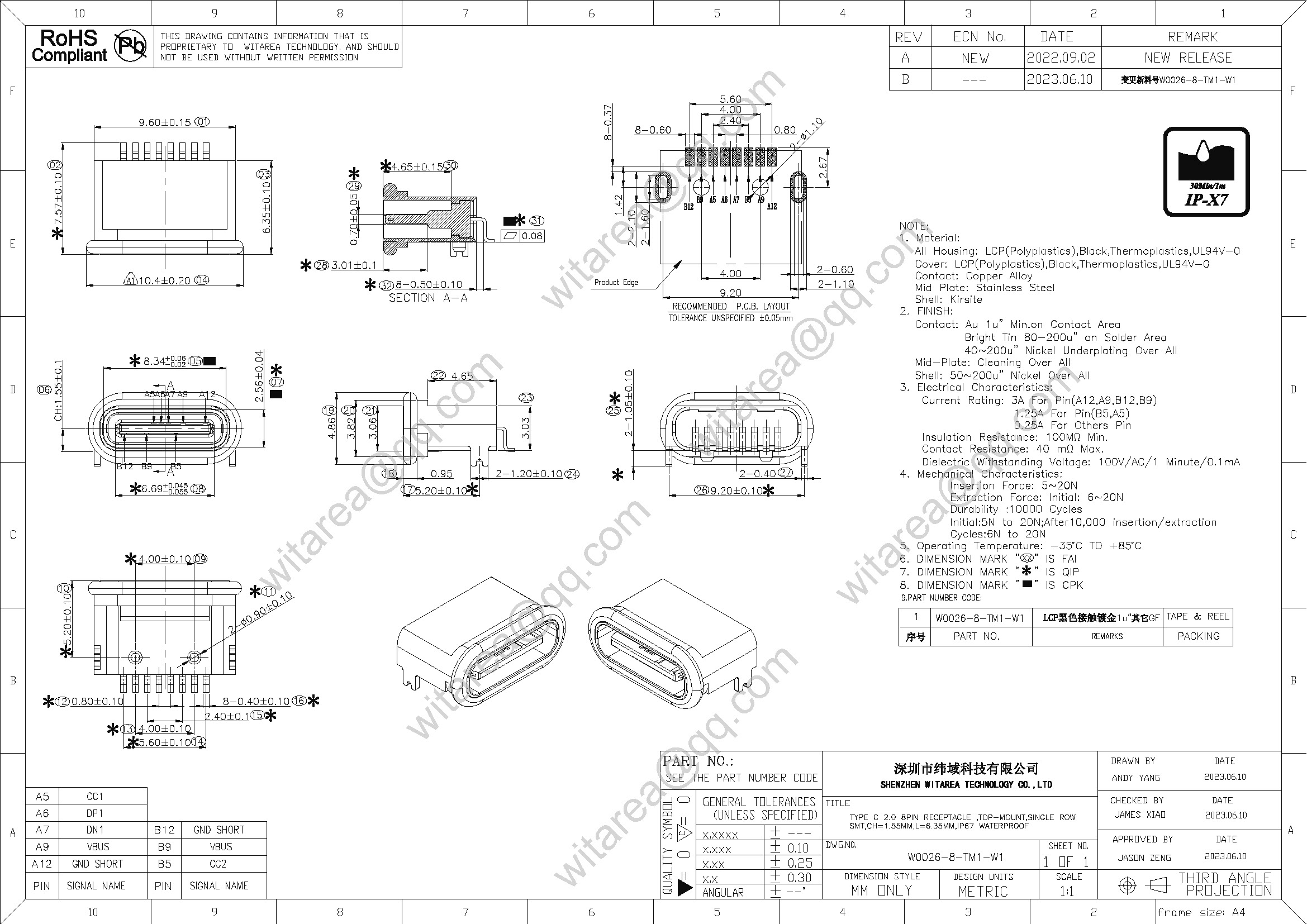

Drawing

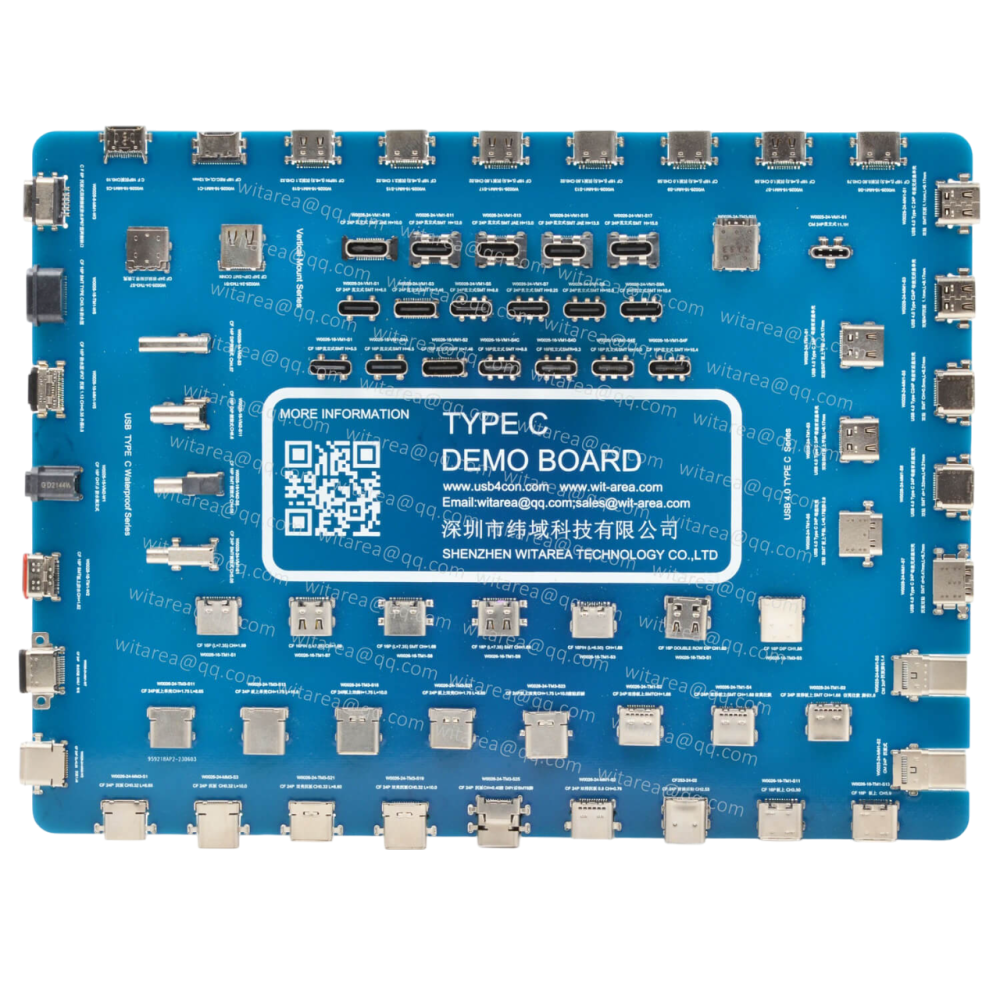

USB TYPE C Connector Sample board



Parameter

Part No.: 103.W0026-8-TM1-W1
Equivalent
Products: TYPE C 2.0 8PIN RECEPTACLE ,TOP-MOUNT,SINGLE ROW SMT,CH=1.55MM,L=6.35MM,IP67 WATERPROOF
Central-Height(1CH)  CH=1.55mm
Product Family:  USB TYPE C Connector
Connector style:  Type C
Number of contacts:  8
PCB mount type: Top-mount
Orientation: Horizontal
Mount position: Top-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths: 1.05mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-8-TM1-W1--TYPE-C-2_0-8PIN-RECEPTACLE-TOP-MOUNTSINGLE-ROW-SMTCH1_55MML6_35MMIP67-WATERPROOF.pdf

Usb C Waterproof 8pin Receptacle Socket
