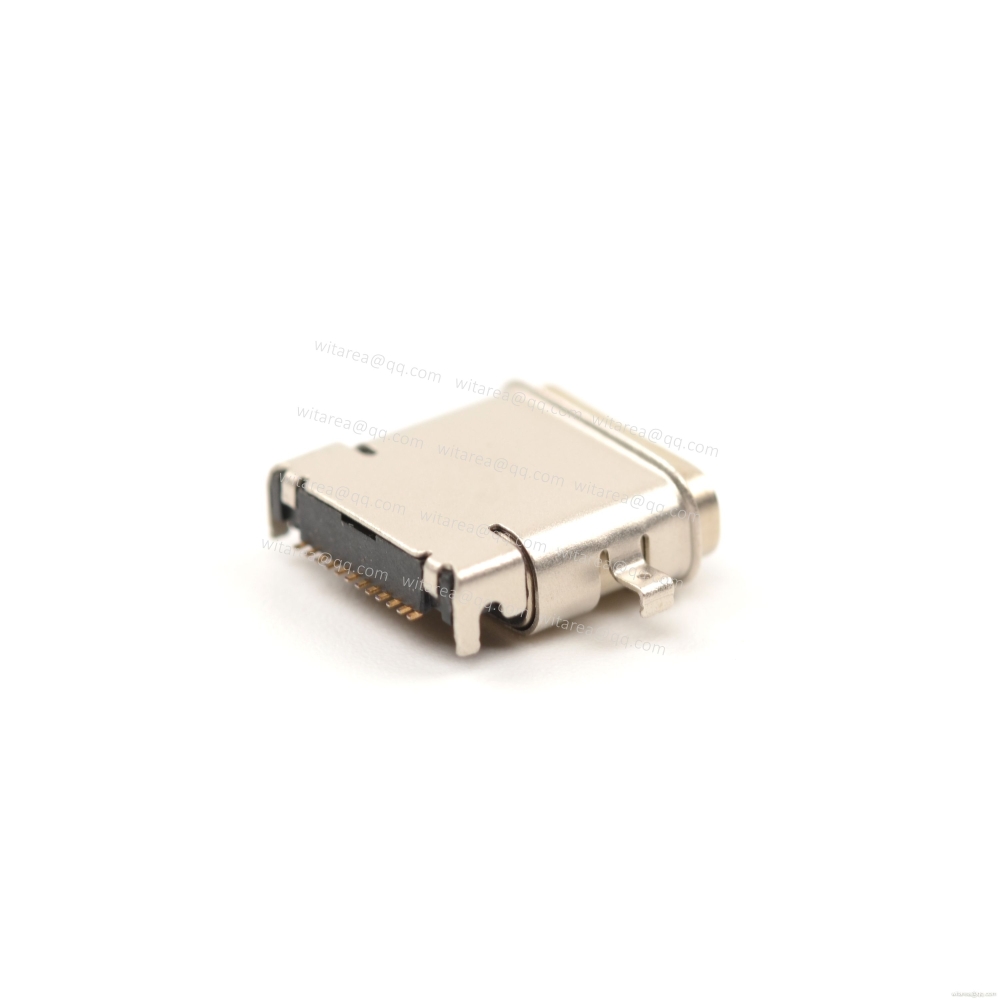

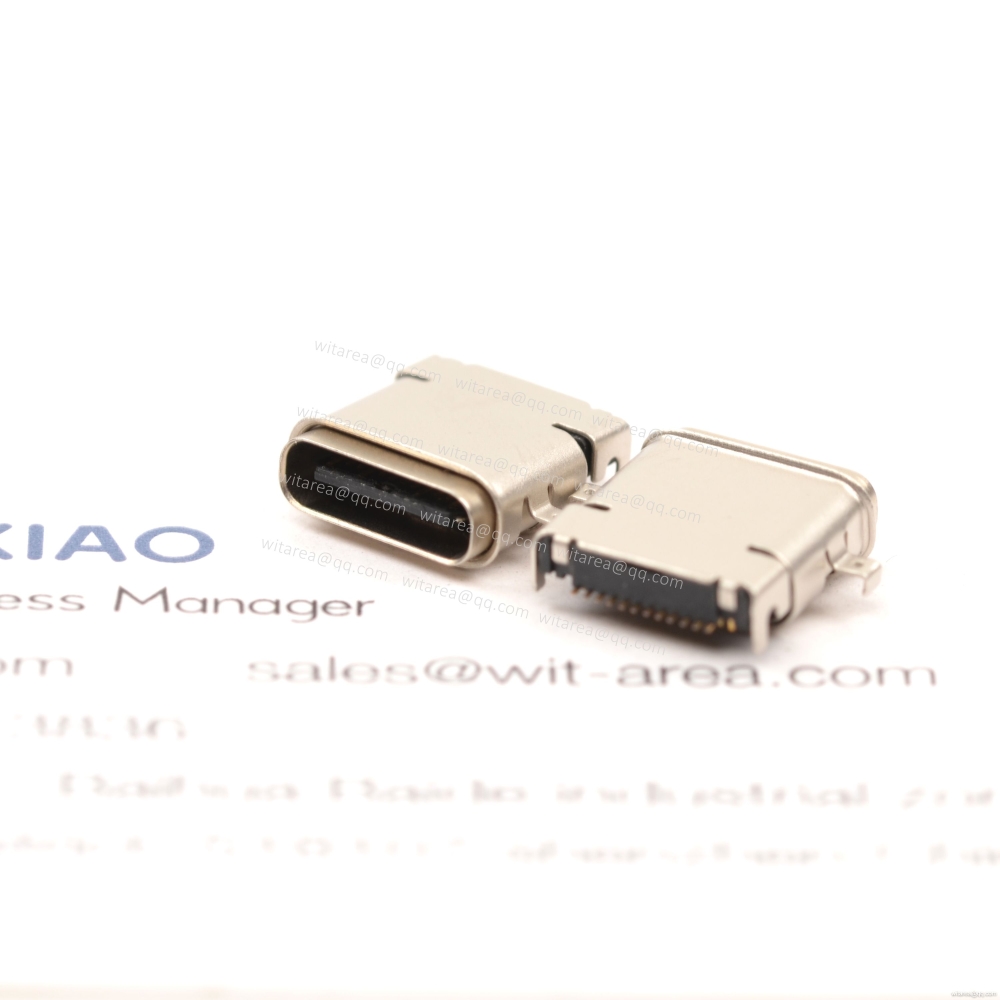

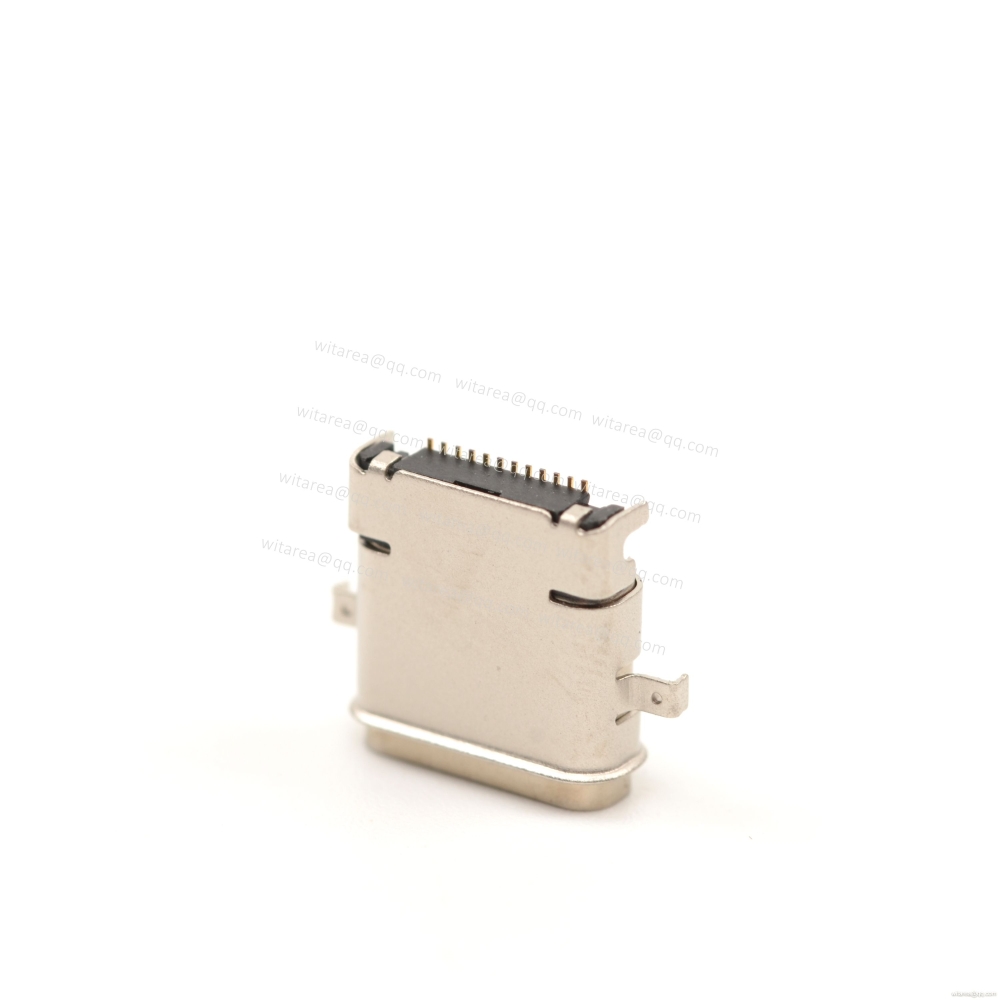

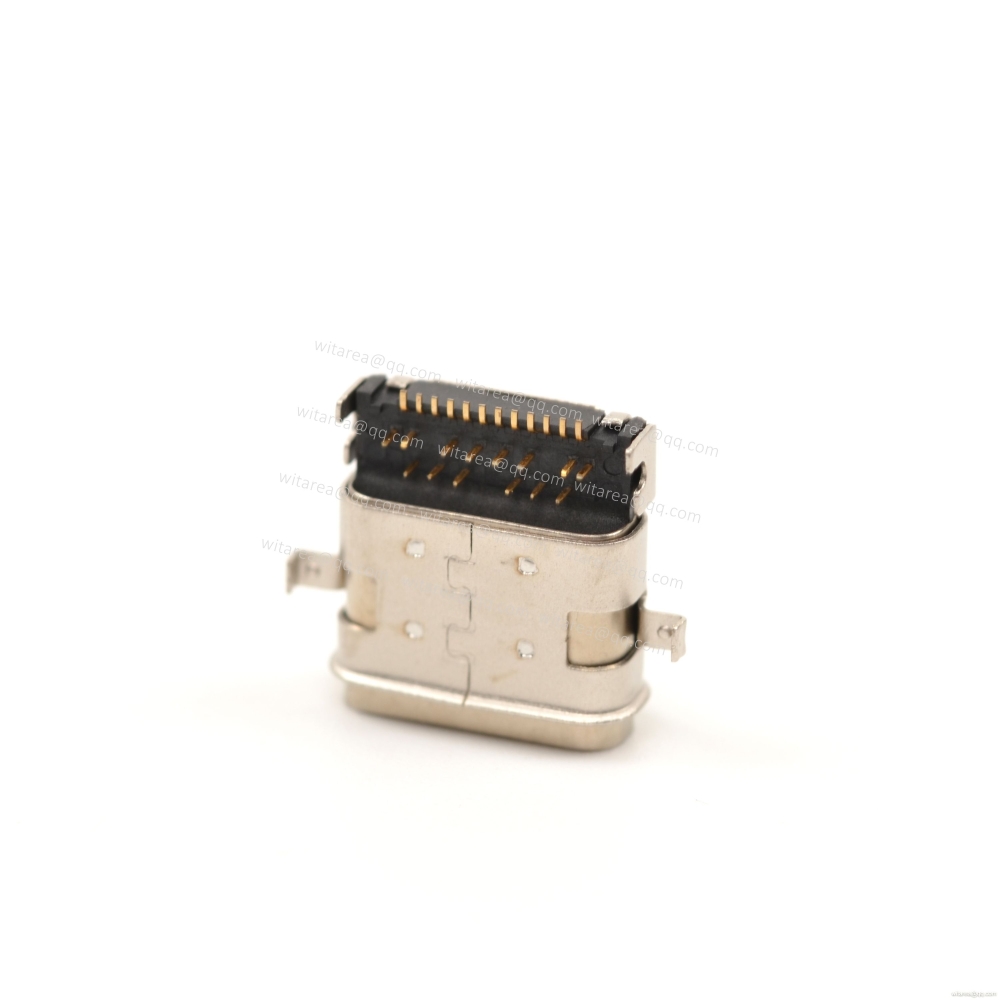

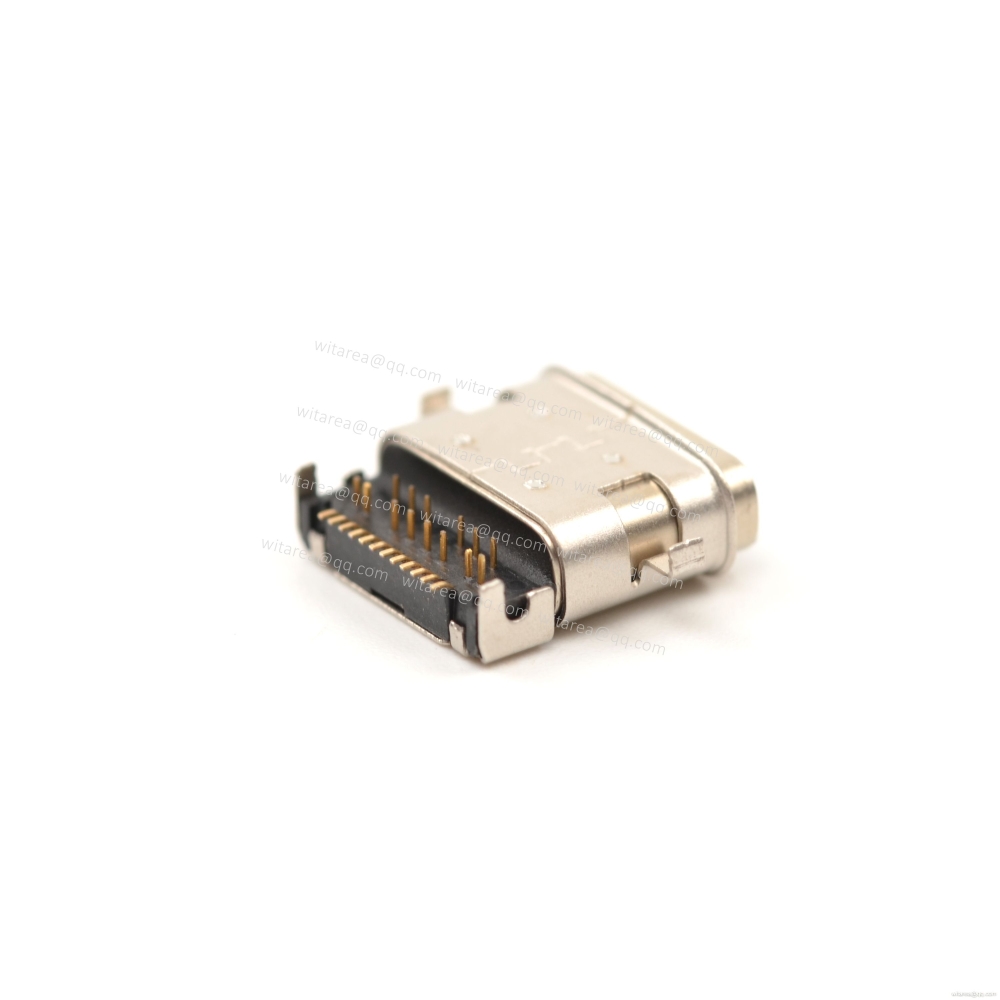

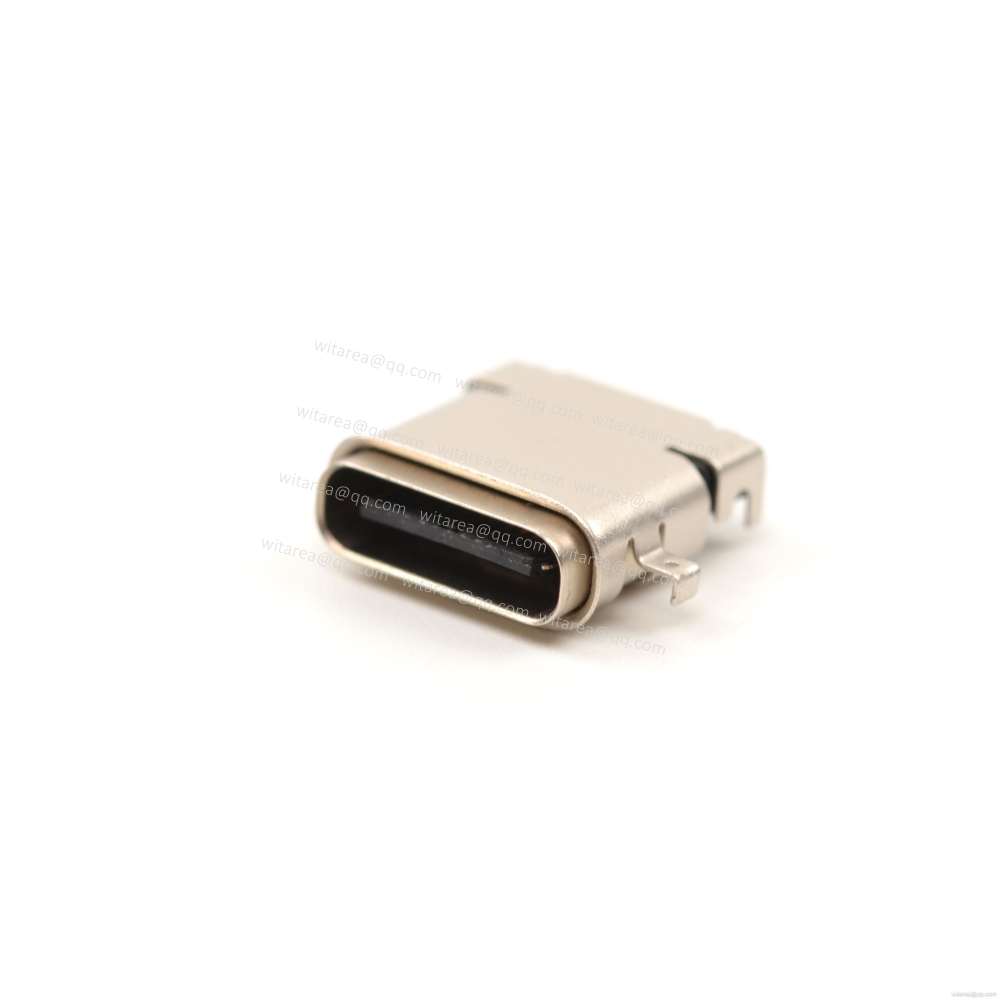

USB4/3.1/3.2 TYPE C 24P DIP+SMT hybrid waterproof receptacle CH=0.3mm,L=9.65mm

Item.: 113.W0026-24-MM3-W2
Connector style: Type C
USB version: USB4/3.1/3.2
Gender: receptacle
PCB mount type: Mid-mount
Mount position: Mid-mount,DIP PEG
Shell stake: Through hole
Body Length : 9.65mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

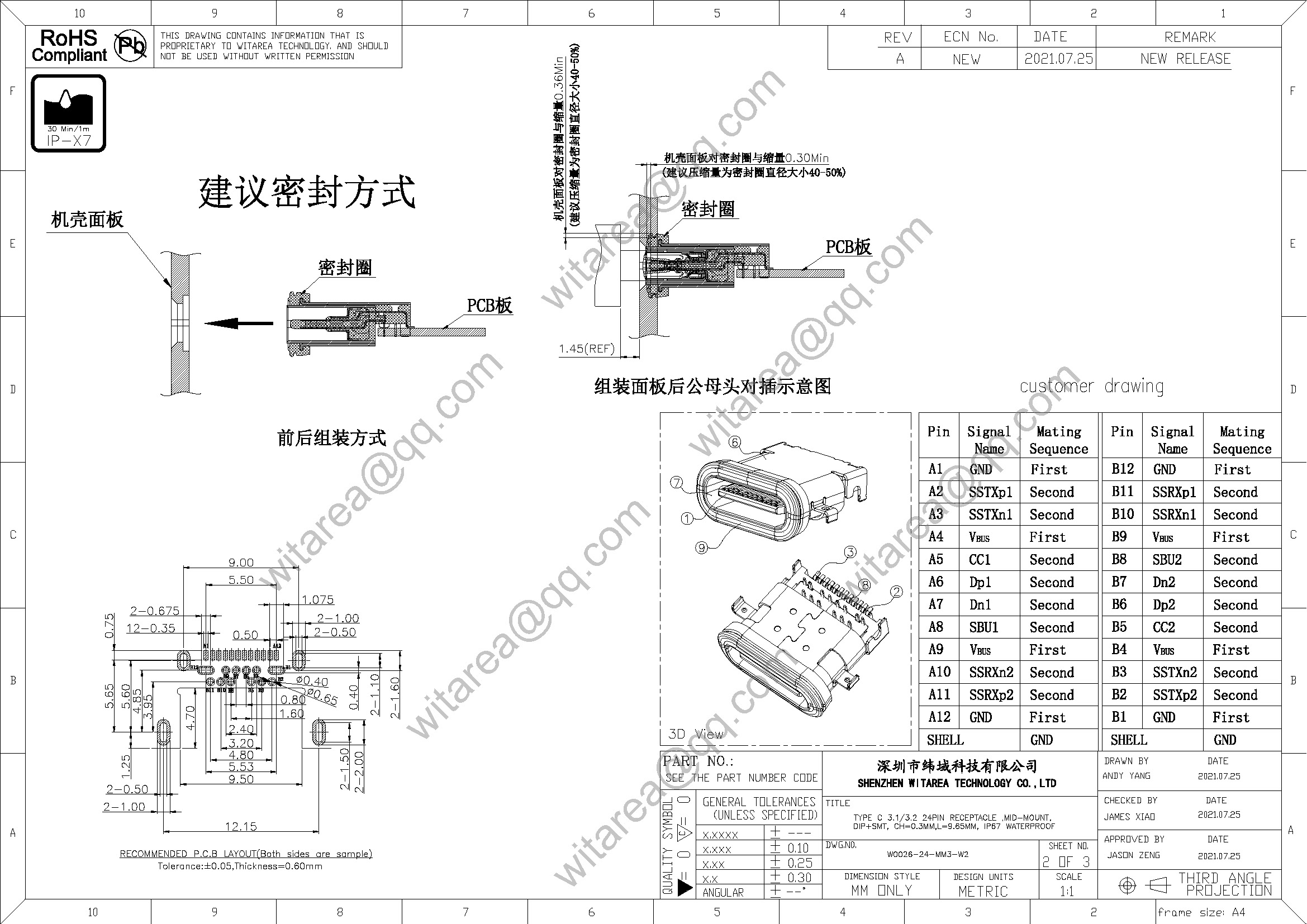

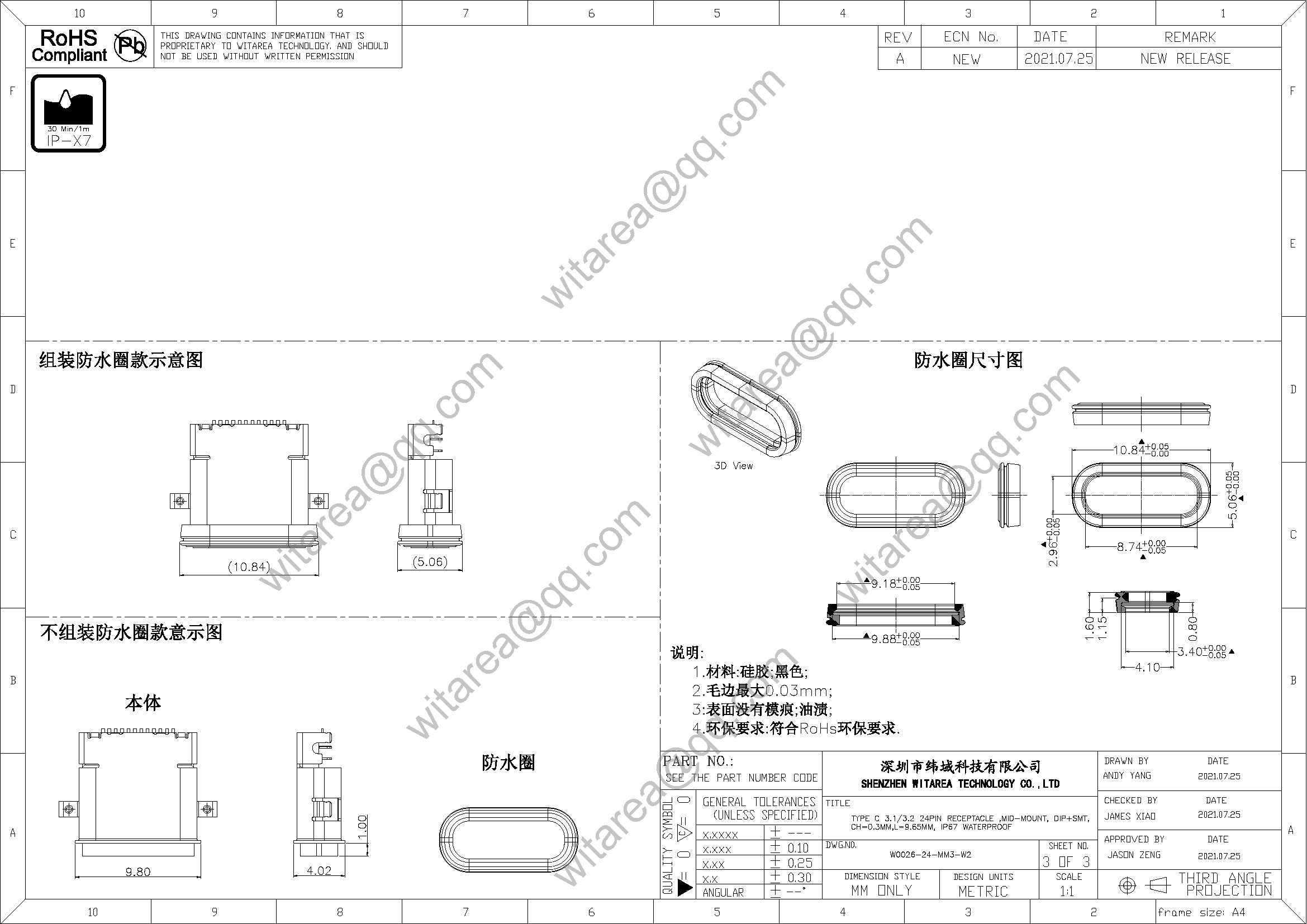

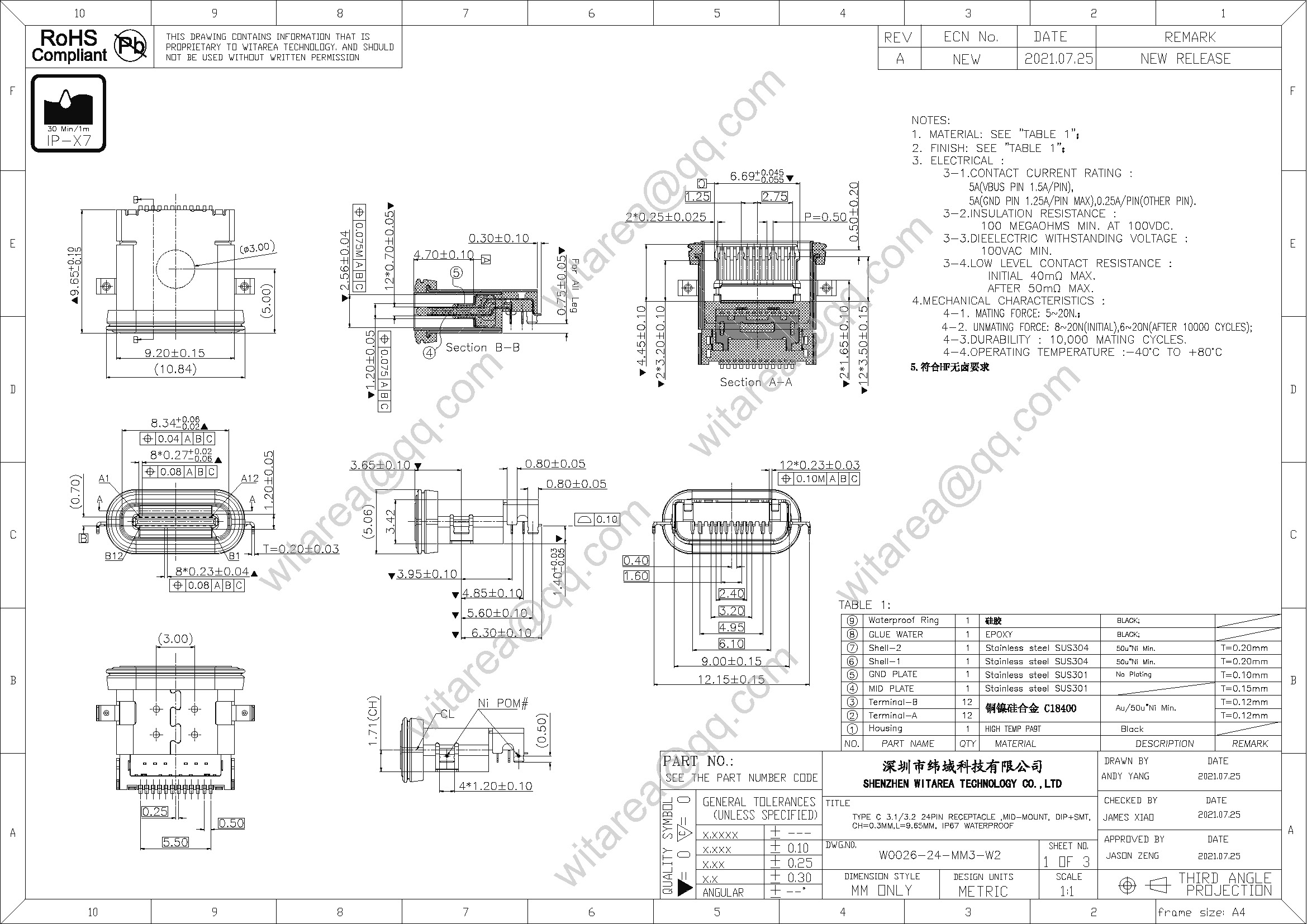

Drawing



USB TYPE C Connector Sample board



Parameter

Part No.: 113.W0026-24-MM3-W2
Equivalent
Products: TYPE C 3.1/3.2 24PIN RECEPTACLE ,MID-MOUNT, DIP+SMT, CH=0.3MM,L=9.65MM, IP67 WATERPROOF
Central-Height(1CH)  CH=0.3mm
Product Family:  USB TYPE C Connector
Connector style:  Type C
Number of contacts: 24
PCB mount type: Mid-mount
Orientation: Horizontal
Mount position: Mid-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths: 0.5mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-24-MM3-W2-TYPE-C-3_13_2-24PIN-RECEPTACLE-MID-MOUNT-DIPSMT-CH0_3MML9_65MM-IP67-WATERPROOF.pdf
