USB2.0 TYPE C 6P waterproof receptacle SMT with 4 stakes CH=1.68mm L=8.2mm

Item.: 96.W0026-6-MM1-W3
Connector style: Type C
USB version: USB2.0
Gender: receptacle
PCB mount type: Mid-mount
Mount position: Mid-mount,DIP PEG
Shell stake: Through hole
Body Length :8.2mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

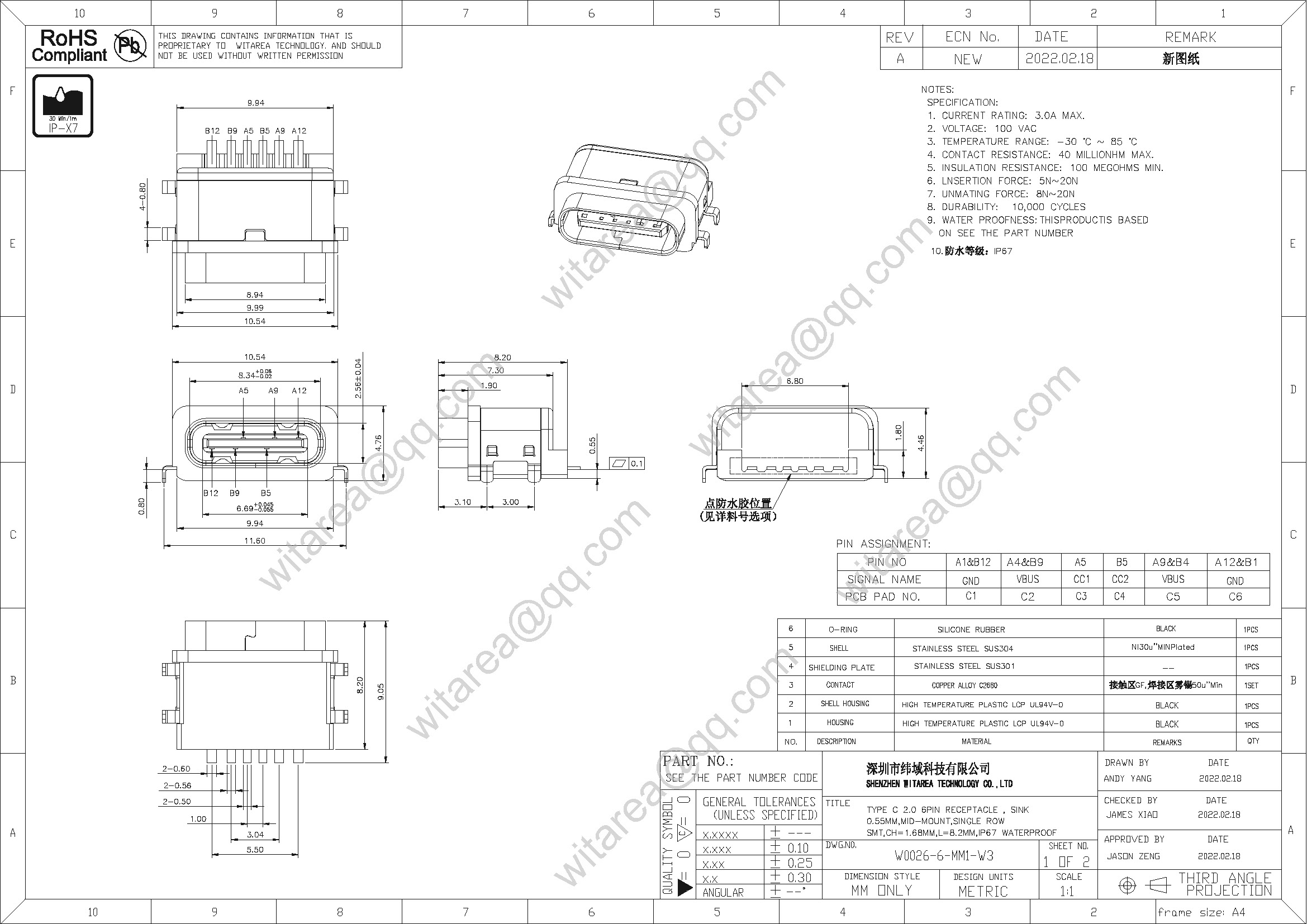

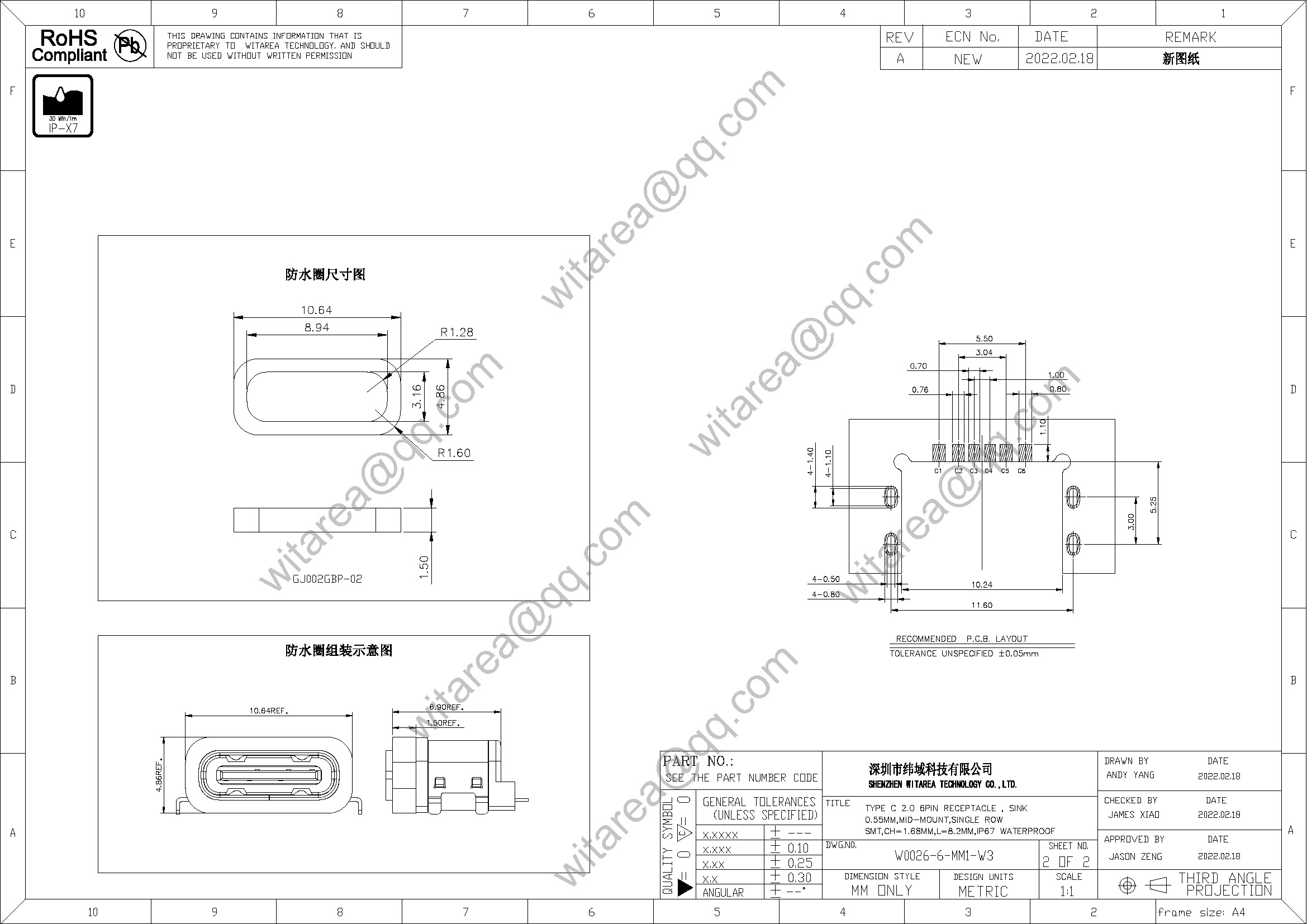

Drawing



USB TYPE C Connector Sample board



Parameter

Part No.:96.W0026-6-MM1-W3
Equivalent
Products: USB TYPE C 2.0 6PIN RECEPTACLE ,WITH 4 STAKES, SINK 0.55MM, MID-MOUNT,SINGLE ROW SMT,CH=1.68MM,L=8.2MM,IP67 WATERPROOF
Central-Height(1CH)  CH=1.68 MM
Product Family:  USB TYPE C Connector
Connector style:  Type C
Number of contacts:  6
PCB mount type:  Mid-mount
Orientation:  Horizontal
Mount position: Vertical mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  0.55mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-6-MM1-W3-TYPE-C-2_0-6PIN-RECEPTACLE--SINK-0_55MMMID-MOUNTSINGLE-ROW-SMTCH1_68MML8_2MMIP67-WATERPROOF.pdf

Usb C Waterproof 6pin Receptacle Socket
