USB2.0 TYPE C 6P waterproof receptacle SMT CH=2.38mm,L=7.85mm
USB2.0 TYPE C 6P waterproof receptacle SMT CH=2.38mm,L=7.85mm
Home Products USB Connector Waterproof USB C Connector

USB2.0 TYPE C 6P waterproof receptacle SMT CH=2.38mm,L=7.85mm

Item.: 97.W0026-6-TM1-W5
Connector style: Type C
USB version: USB2.0
Gender: receptacle
PCB mount type: Top-mount
Mount position: Top-mount,DIP PEG
Shell stake: Through hole
Body Length :7.85mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

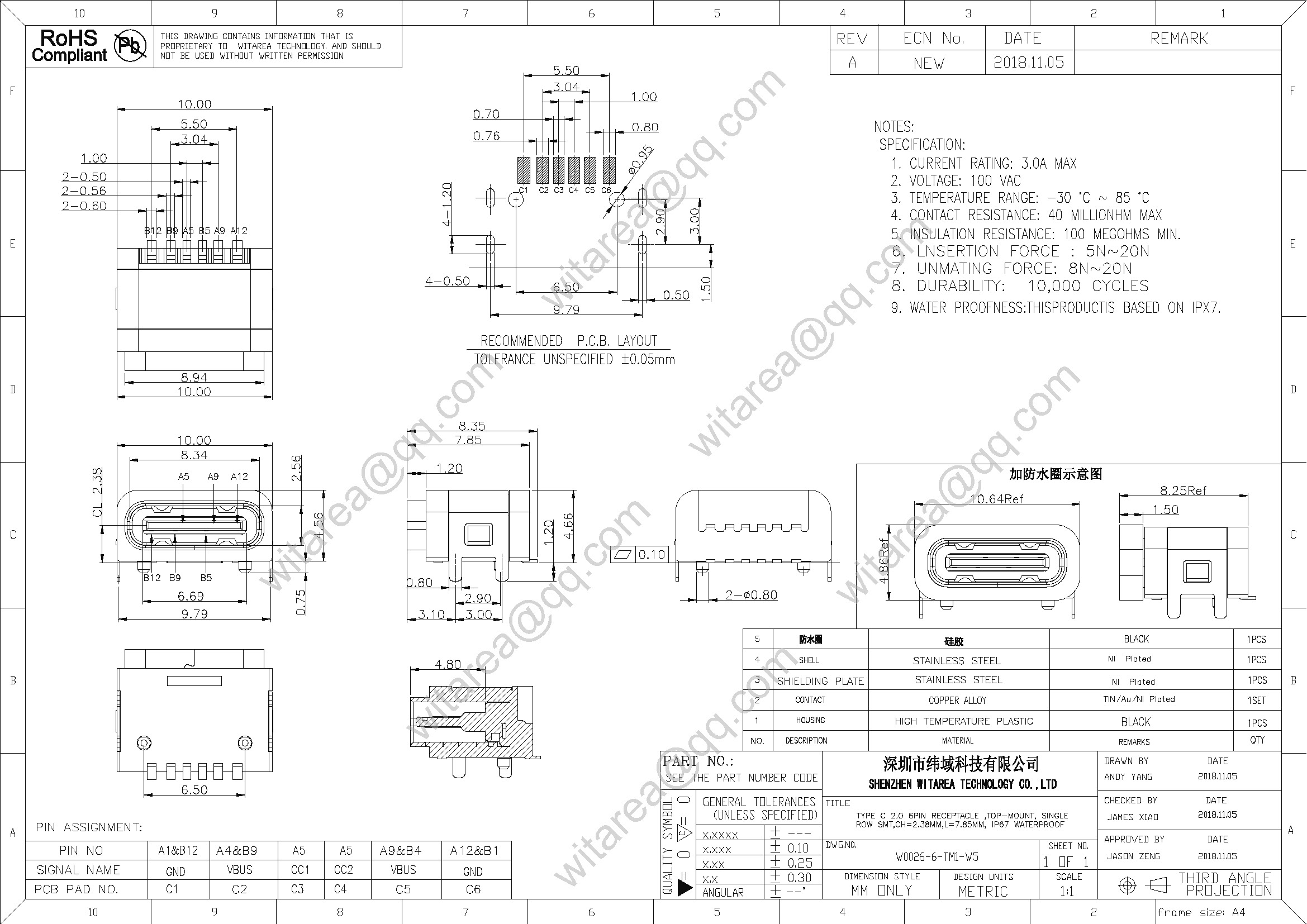

Drawing

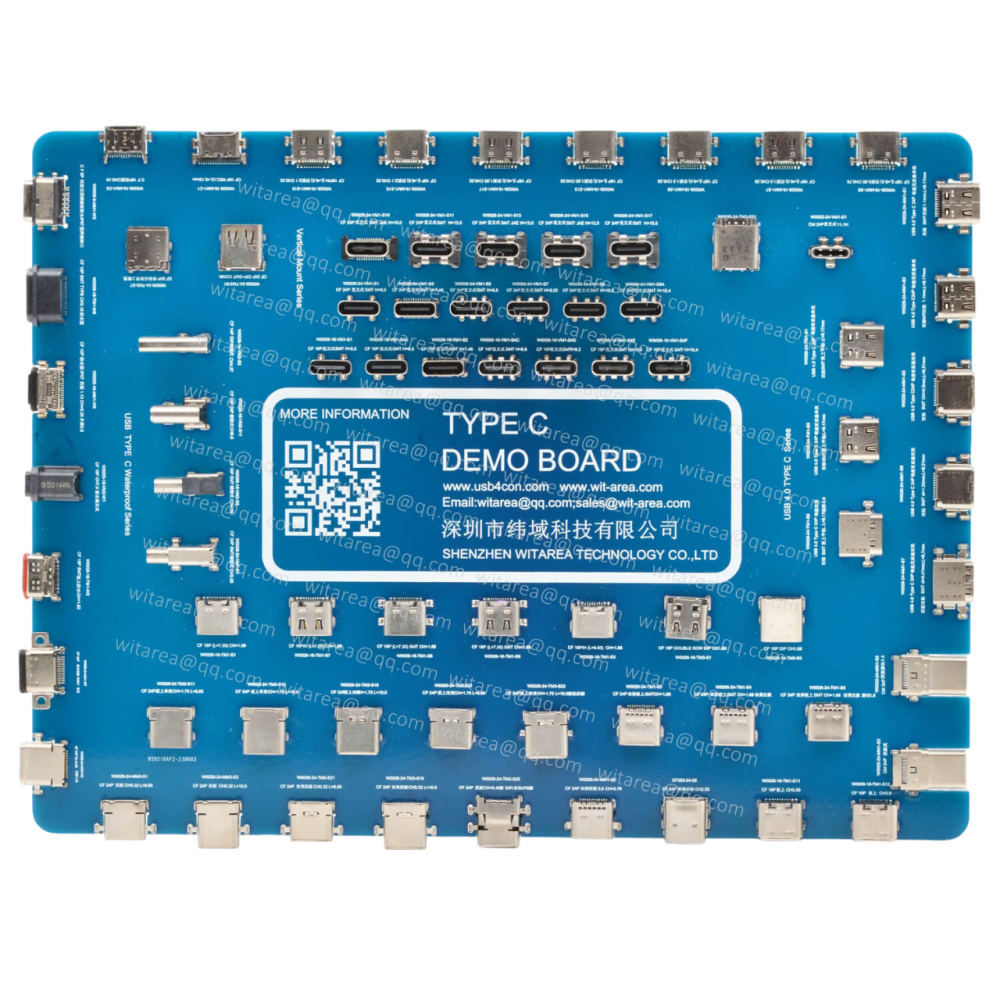

USB TYPE C Connector Sample board



Parameter

Part No.: 97.W0026-6-TM1-W5
Equivalent
Products: TYPE C 2.0 6PIN RECEPTACLE ,TOP-MOUNT, SINGLE ROW SMT,CH=2.38MM,L=7.85MM, IP67 WATERPROOF
Central-Height(1CH)  CH=2.38 MM
Product Family:  USB TYPE C Connector
Connector style:  Type C
Number of contacts:  6
PCB mount type: Top-mount
Orientation:  Horizontal
Mount position:  Top-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths:  0.55mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-6-TM1-W5-TYPE-C-2_0-6PIN-RECEPTACLE-TOP-MOUNT-SINGLE-ROW-SMTCH2_38MML7_85MM-IP67-WATERPROOF.pdf
