Home Products USB Connector Waterproof USB C Connector

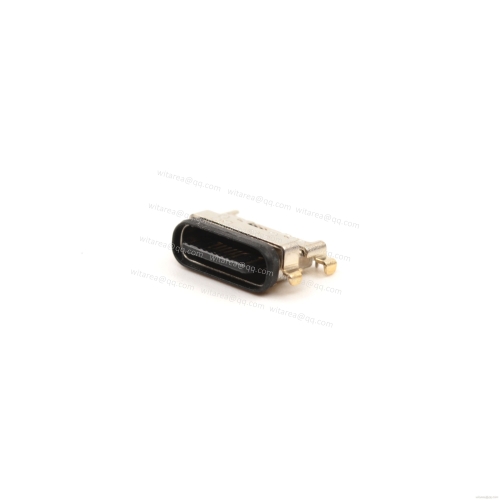

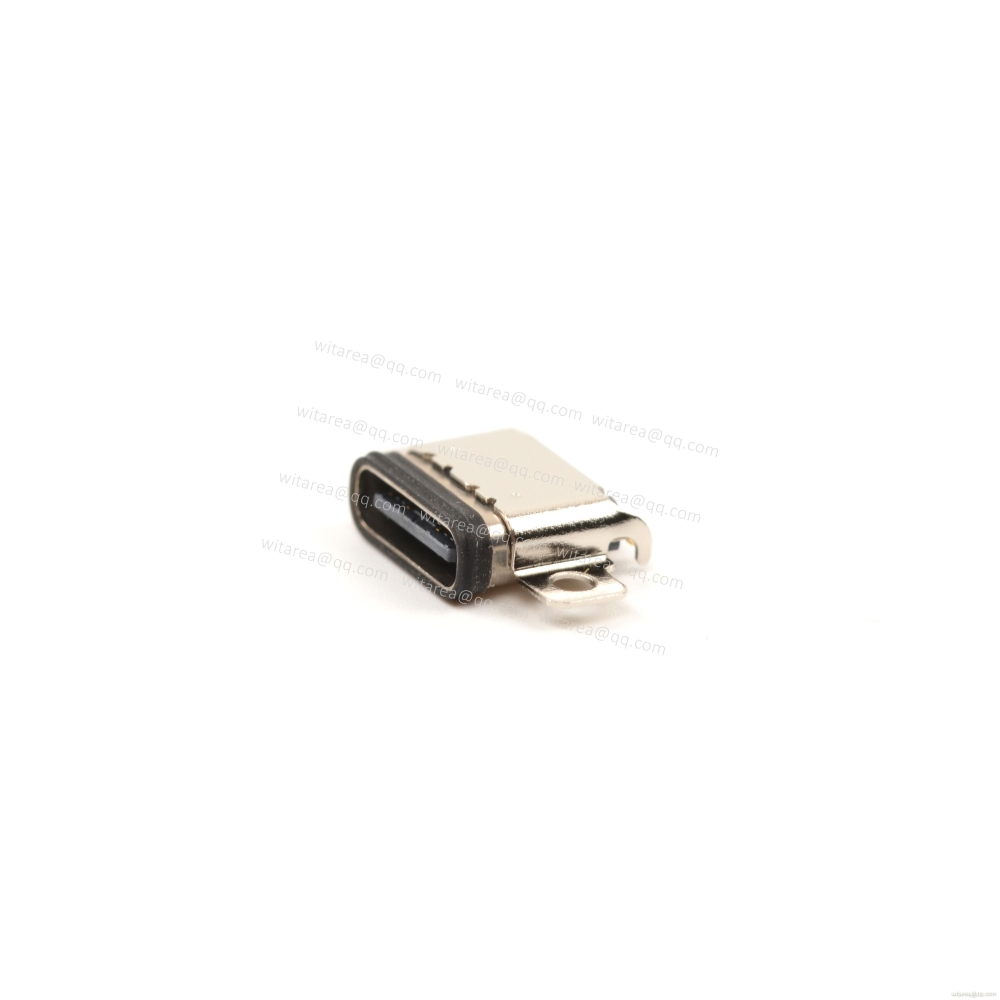

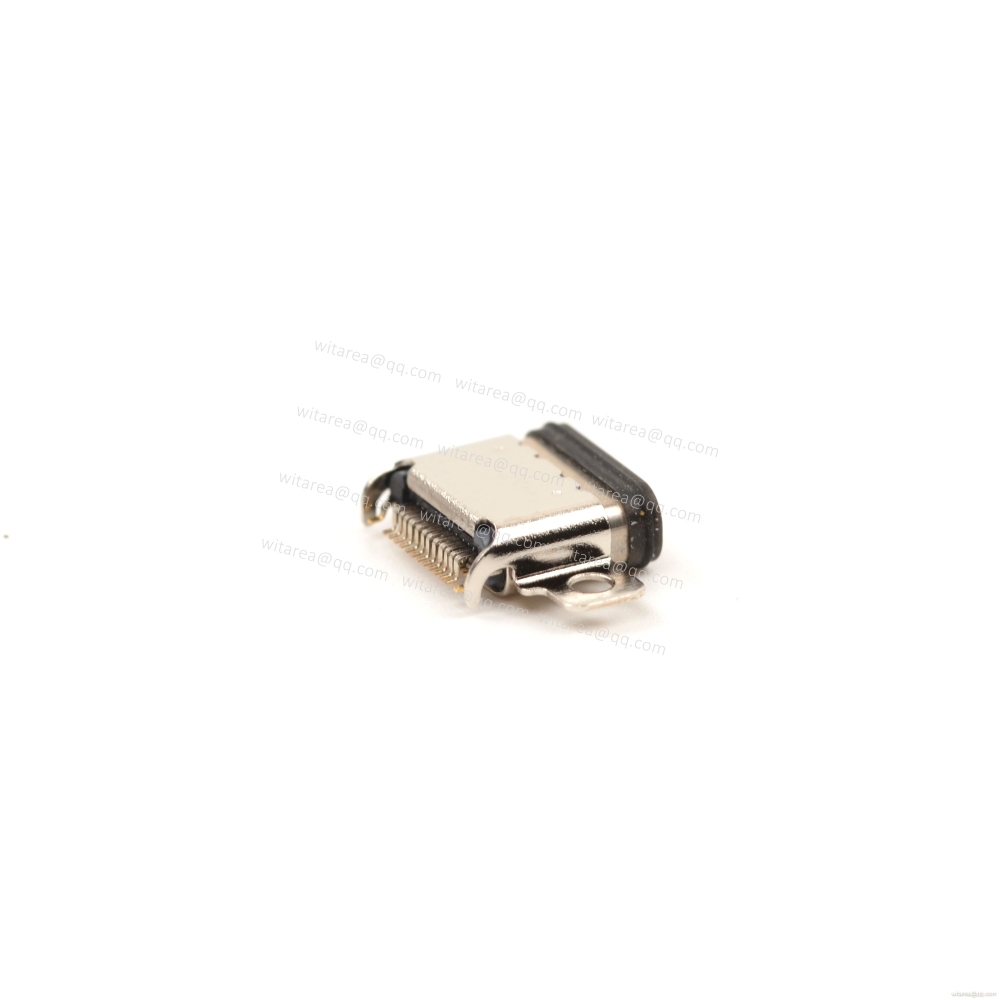

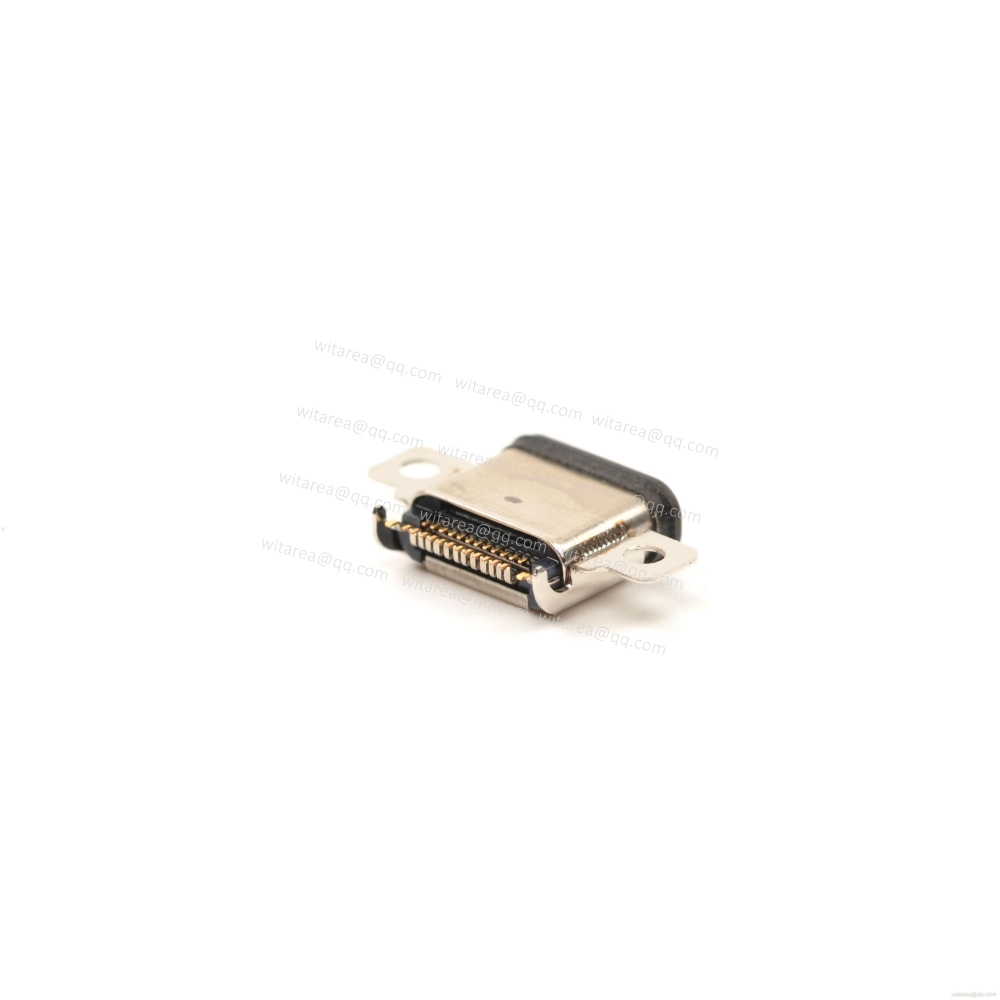

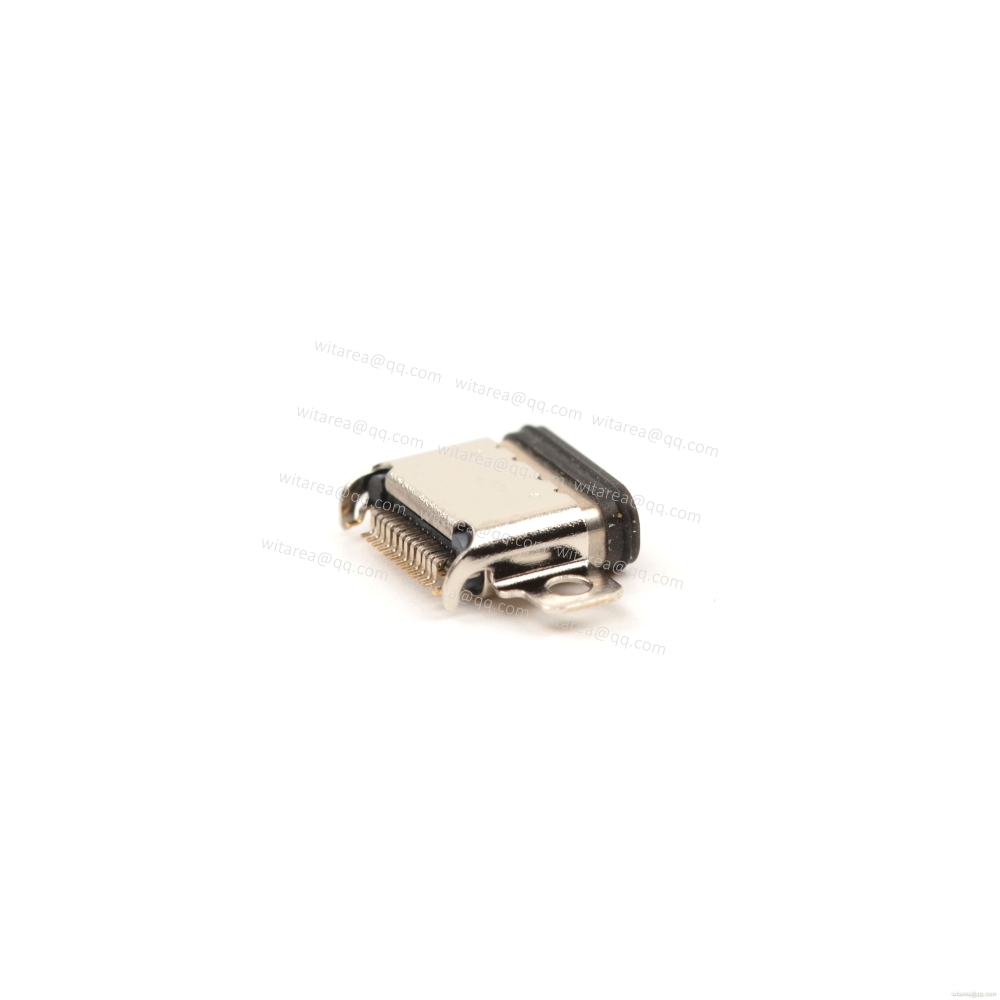

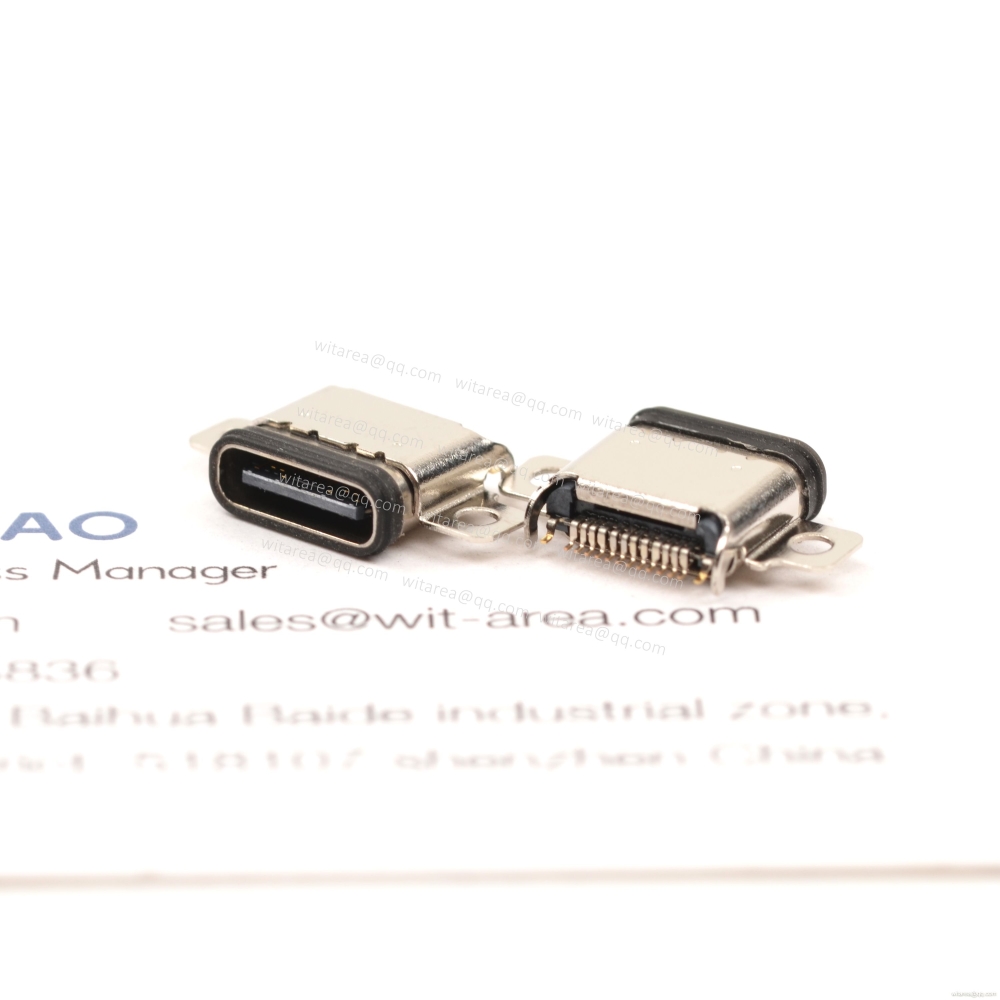

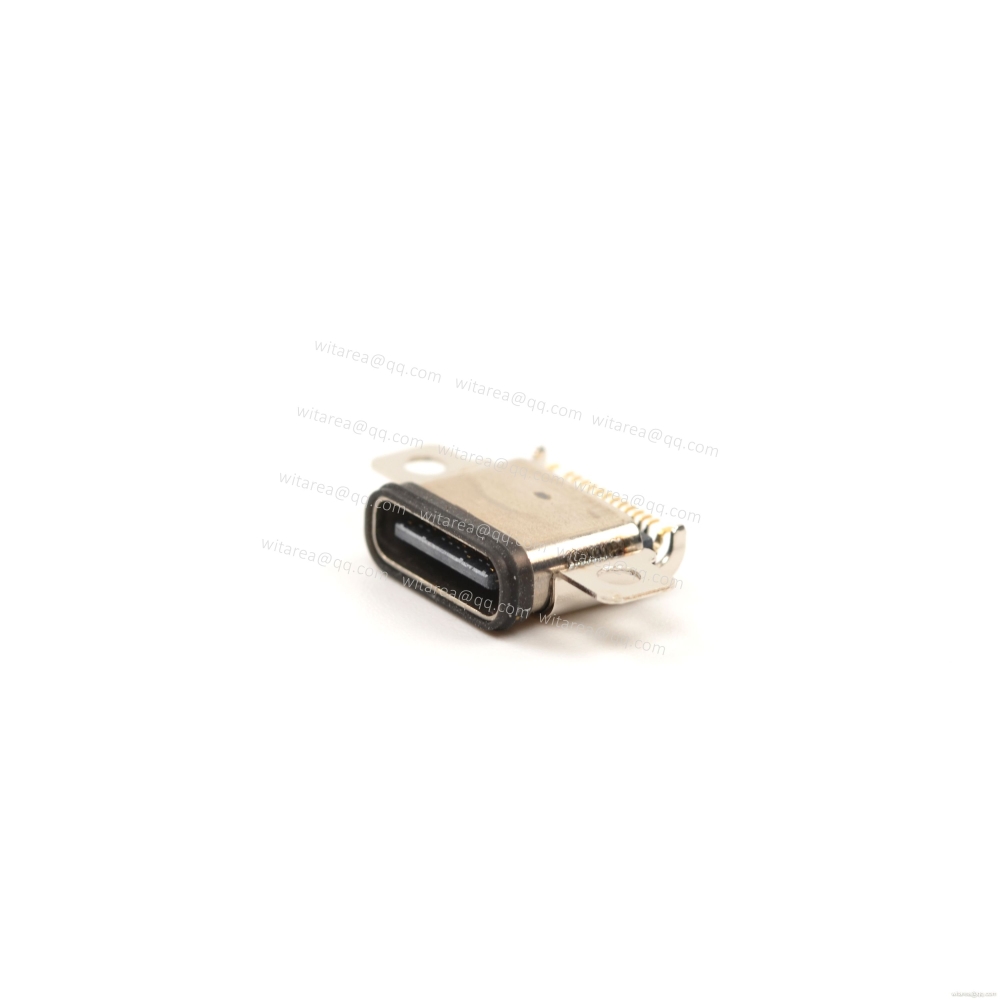

USB4/3.1/3.2 TYPE C 24P Dual Row SMT waterproof receptacle CH=0.7mm,L=9.27mm

Item.: 114.W0026-24-MM1-W7
Connector style: Type C
USB version: USB4/3.1/3.2
Gender: receptacle
PCB mount type: Mid-mount
Mount position: Mid-mount,DIP PEG
Shell stake: Through hole
Body Length : 9.27mm
CategoriesWaterproof USB C Connector
Add To InquirySEND INQUIRY
ParameterDatasheet

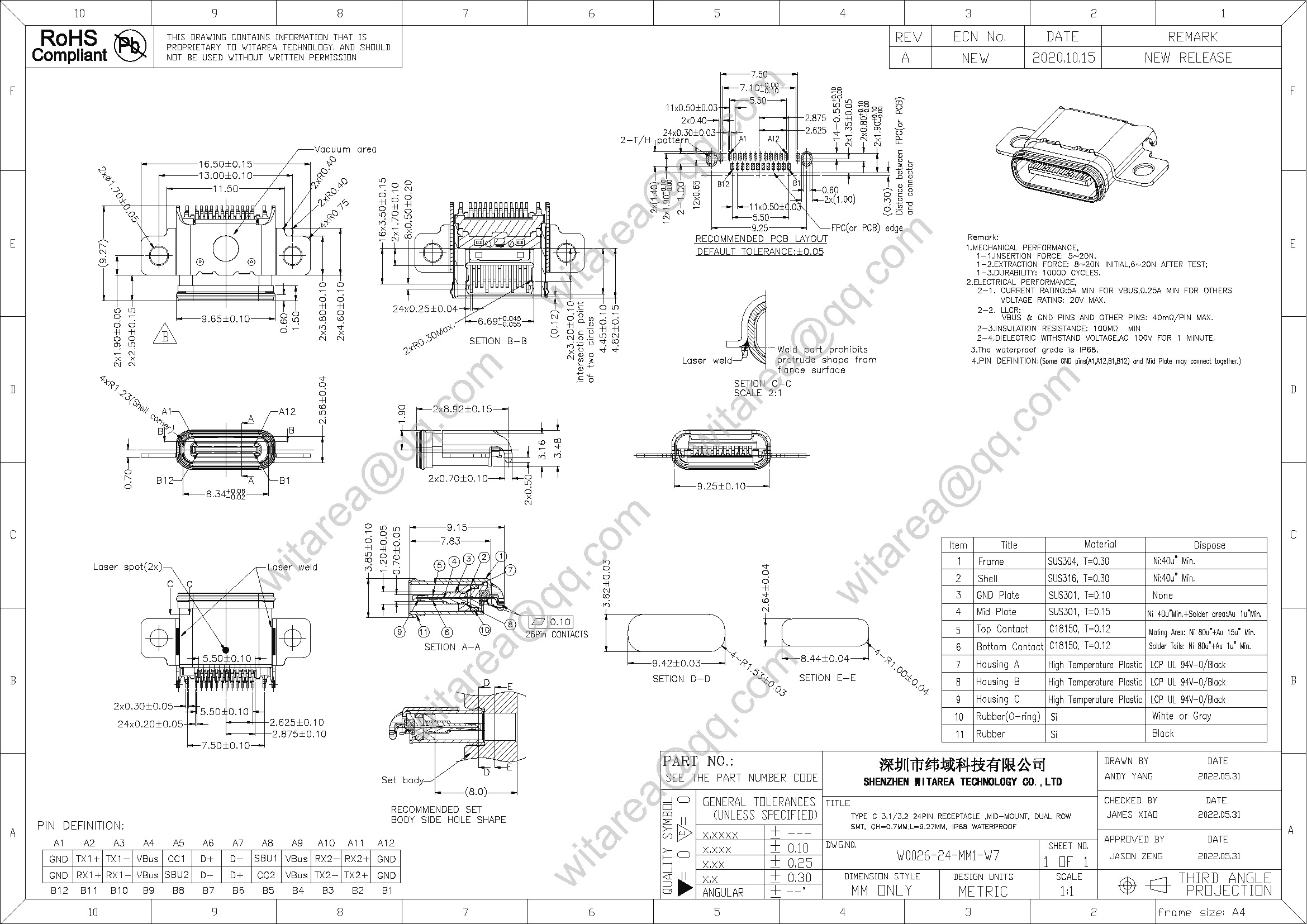

Drawing



USB TYPE C Connector Sample board



Parameter

Part No.: 114.W0026-24-MM1-W7
Equivalent
Products: USB4/3.1/3.2 TYPE C 24PIN RECEPTACLE,MID-MOUNT, Dual row SMT, CH=0.7MM,L=9.27MM, IP68 WATERPROOF
Central-Height(1CH) CH=0.7mm
Product Family: USB TYPE C Connector
Connector style: Type C
Number of contacts: 24
PCB mount type: Mid-mount
Orientation: Horizontal
Mount position: Mid-mount,DIP PEG
Current Rating:  5A
Shell stake:  Through hole
Shell stake lengths: 0.5mm
Locating Peg:  With locating peg
Application:  USB C device
Product Status:  Active
Certification:  Rohs(1EN50581),REACH
Mating Cycles:  10000



Application

Mobile devices:smartphones, tablets and ect.

Smart devices:Remote Monitoring,and ect.

Gaming consoles and ect.

Computers:,laptops and desktop computers and ect.

Peripherals: External hard drives, USB flash drives,UKEY,USB disk,USB receiver,USB key,FIDO key,USB dongle, security key and ect.

Audio equipment: headphones, speakers, and other audio equipment and ect.

Video equipment and ect. Automotive industry and ect.


Connectors mainly categories:
USB C Connectors
Type c male plug,type c female plug,SMT TYPE C connector,and ect.

EN-W0026-24-MM1-W7--TYPE-C-3_1-3_2-24PIN-RECEPTACLE-MID-MOUNT-DUAL-ROW-SMT-CH0_7MML9_27MM-IP68-WATERPROOF.pdf

Usb C Waterproof 24pin Receptacle Socket
